Cisco C819G+7-K9 Wireless Router

Part Number: C819G+7-K9
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Broadband Transmission Technology
Cellular
ISM Band
No
UNII Band
No
Cellular Generation
3G

Product Description:

  C819 Secure M2M GW (non-US) 3.7G HSPA+ R
Explore all Cisco Parts Accessories
Add to Quote
Cisco C819G+7-K9 Wireless Router
Cisco C819G+7-K9 Wireless Router
Cisco C819G+7-K9 Wireless Router
Cisco C819G+7-K9 Wireless Router
Cisco C819G+7-K9 Wireless Router Cisco C819G+7-K9 Wireless Router Cisco C819G+7-K9 Wireless Router Cisco C819G+7-K9 Wireless Router

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco C819G+7-K9 Wireless Router Overview

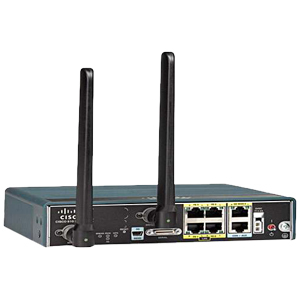

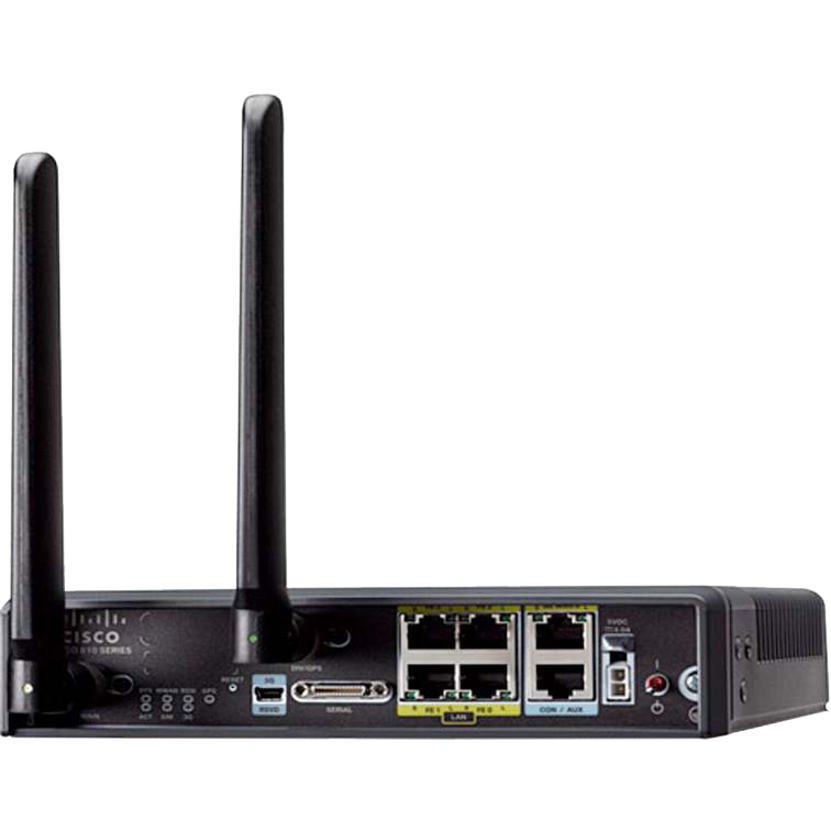

The Cisco 819 Integrated Services Router, part of the Cisco Integrated Services Routers Generation 2 (ISR G2) Family designed in compact hardened and nonhardened form factors, is the smallest Cisco IOS Software router with support for integrated third-generation (3G) wireless WAN (mobile broadband backhaul). The Cisco 819 provides a rapidly deployable, highly available, reliable, and secure solution into machine-to-machine applications for financial, telemetry, utility, retail, industrial automation, and transportation with comprehensive management capability. Transparently integrated into Cisco IOS Software as an enterprise-class feature, the Cisco 819 hardened ISR provides highly secure data, voice, and video communications to stationary and mobile network nodes across wired and wireless links. Figure 1 shows a Cisco 819(H)G Integrated Services Router.

Wireless Specifications
Broadband Transmission Technology:
Cellular
ISM Band:
No
UNII Band:
No
Cellular Generation:
3G
Cellular Network Supported:
  • WCDMA 850
  • WCDMA 900
  • WCDMA 1900
  • WCDMA 2100
  • GSM 850
  • GSM 900
  • GSM 1800
  • GSM 1900
Cellular Data Connectivity Technology:
  • HSPA+
  • HSDPA
  • UMTS
  • EDGE
  • GPRS
Total Number of Antennas:
2
Antenna Type:
Dipole Antenna
Antenna Connector:
TNC Connector
Features:
Quality of Service (QoS)
Interfaces/Ports
Ethernet Port:
Yes
Fast Ethernet Port:
Yes
Gigabit Ethernet Port:
No
Number of Network (RJ-45) Ports:
4
Network (RJ-11):
No
VGA:
No
Serial:
Yes
USB:
Yes
Powerline:
No
PoE (RJ-45) Port:
No
Management Port:
No
Number of Broadband (RJ-45) Ports:
1
I/O Expansions
Number of Total Expansion Slots:
2
Expansion Slot Type:
SIM Card
Network & Communication
Ethernet Technology:
Fast Ethernet
Management & Protocols
Management:
  • MIB
  • VLAN
  • SNMP v1,v2,v3
  • Telnet
  • Web-based Management
  • DHCP
  • Cisco IOS Embedded Event Manager
  • Cisco Security Manager
  • Cisco Configuration Professional
  • CiscoWorks
Security Features:
  • L2TP
  • VPN
  • DES
  • 3DES
  • 128/192/256 bit AES
  • PKI
  • IPsec
  • NAT
  • SIP
  • Adaptive Control Technology
  • Firewall
  • Content Filtering
  • IPS
  • RADIUS
  • TACACS+
Power Description
Power Source:
AC Supply
Physical Characteristics
Form Factor:
  • Desktop
  • Wall Mountable
Height:
1.7"
Width:
7.7"
Depth:
7.2"
Weight (Approximate):
2.30 lb
Item Numbers
GTIN: 0882658434297
UPC: 882658434297
EAN: 0882658434297
UNSPSC: 43222609
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco C819G+7-K9 Wireless Router is also known as CSC-C819G+7K9
