Cisco CTS-EDGE95-K9 Accessory

Part Number: CTS-EDGE95-K9
Model: Parts
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
ITU-T Recommendation
H.323
Video Bridging
Multipoint
Image Sensor Size
1/3
Image Sensor Type
CMOS

Product Description:

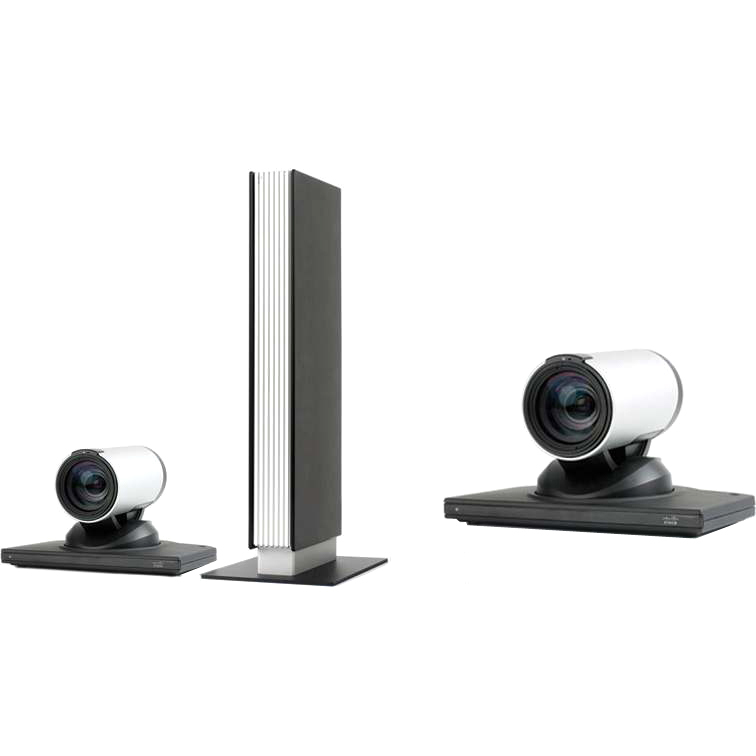

  Cisco TelePresence System Edge 95 MXP - CMOS - 1280 x 720 Video - H.323 - Multipoint - NTSC/PAL - 30 fps - 5 x Network (RJ-45) - 1 x DVI In - 1 x DVI Out - 2 x Composite Video In - 2 x Composite Video Out - 1 x S-Video In - 1 x S-Video Out - 1 x Video InputAudio Line In - Audio Line Out - USB - ISDN - Fast Ethernet - External Microphone(s)
Explore all Cisco Parts Accessories
Add to Quote
Cisco CTS-EDGE95-K9 Accessory
Cisco CTS-EDGE95-K9 Accessory

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco CTS-EDGE95-K9 Accessory Overview

The Cisco TelePresence portfolio creates an immersive, face-to-face experience over the network, empowering you to collaborate with others as never before. Through a powerful combination of technologies and design that allows you and remote participants to feel as if you are all in the same room, the Cisco TelePresence portfolio has the potential to provide great productivity benefits and transform your business. Many organizations are already using it to control costs, make decisions faster, improve customer intimacy, scale scarce resources, and speed products to market.

Technical Information
ITU-T Recommendation:
H.323
Video Bridging:
Multipoint
Camera
Image Sensor Size:
1/3
Image Sensor Type:
CMOS
Video
Graphics Modes:
SXGA
Video Signal Format:
NTSC/PAL
Maximum Video Resolution:
1280 x 720
Maximum Frame Rate:
30 fps
Video Encoding:
  • H.261
  • H.263
  • H.263+
  • H.263++
  • H.264
  • H.239
Audio
Microphone Form Factor:
External
Audio Encoding:
  • G.722
  • G.722.1
  • G.728
  • G.711
Network & Communication
Carrier Supported:
ISDN
Ethernet Technology:
Fast Ethernet
Interfaces/Ports
Composite Video In:
Yes
Composite Video Out:
Yes
S-Video In:
Yes
S-Video Out:
Yes
DVI In:
Yes
DVI Out:
Yes
Video Input:
Yes
Audio Line In:
Yes
Audio Line Out:
Yes
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
5
Number of Composite Video Inputs:
2
Number of Composite Video Outputs:
2
Number of S-Video Inputs:
1
Number of S-Video Outputs:
1
Number of DVI In:
1
Number of DVI Out:
1
Number of Video In:
1
Number of Audio Line In:
4
Number of Audio Line Out:
2
Physical Characteristics
Weight (Approximate):
7.70 lb
Miscellaneous
Package Contents:
  • TelePresence System Edge 95 MXP
  • Wireless Remote Control
  • HD Camera
  • Microphone
  • Cables
Additional Information:

Audio Features:

  • CD-Quality 20KHz Mono and Stereo
  • Telephone add-on via MultiSite
  • Two separate acoustic echo cancellers
  • Audio mixer
  • Automatic Gain Control (AGC)
  • Automatic Noise Reduction
  • Audio level meters
  • VCR ducking
  • Optional Stereo Package
  • Packet loss management
  • Active lip synchronization
  • GSM/Blackberr y inter ference audio feature

Security Features:

  • Management via HTTPS and SSH
  • IP Administration Password
  • Menu Administration Password
  • Dialing Access code
  • Streaming password
  • H.243 MCU Password
  • VNC password
  • SNMP security alerts
  • Disable IP ser vices
  • MD-5 Challenge
  • Network Settings protection
  • SIP Authentication via NTLM
  • SIP Authentication via Digest
Item Numbers
UNSPSC: 45111902
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco CTS-EDGE95-K9 Accessory is also known as CSC-CTSEDGE95K9
