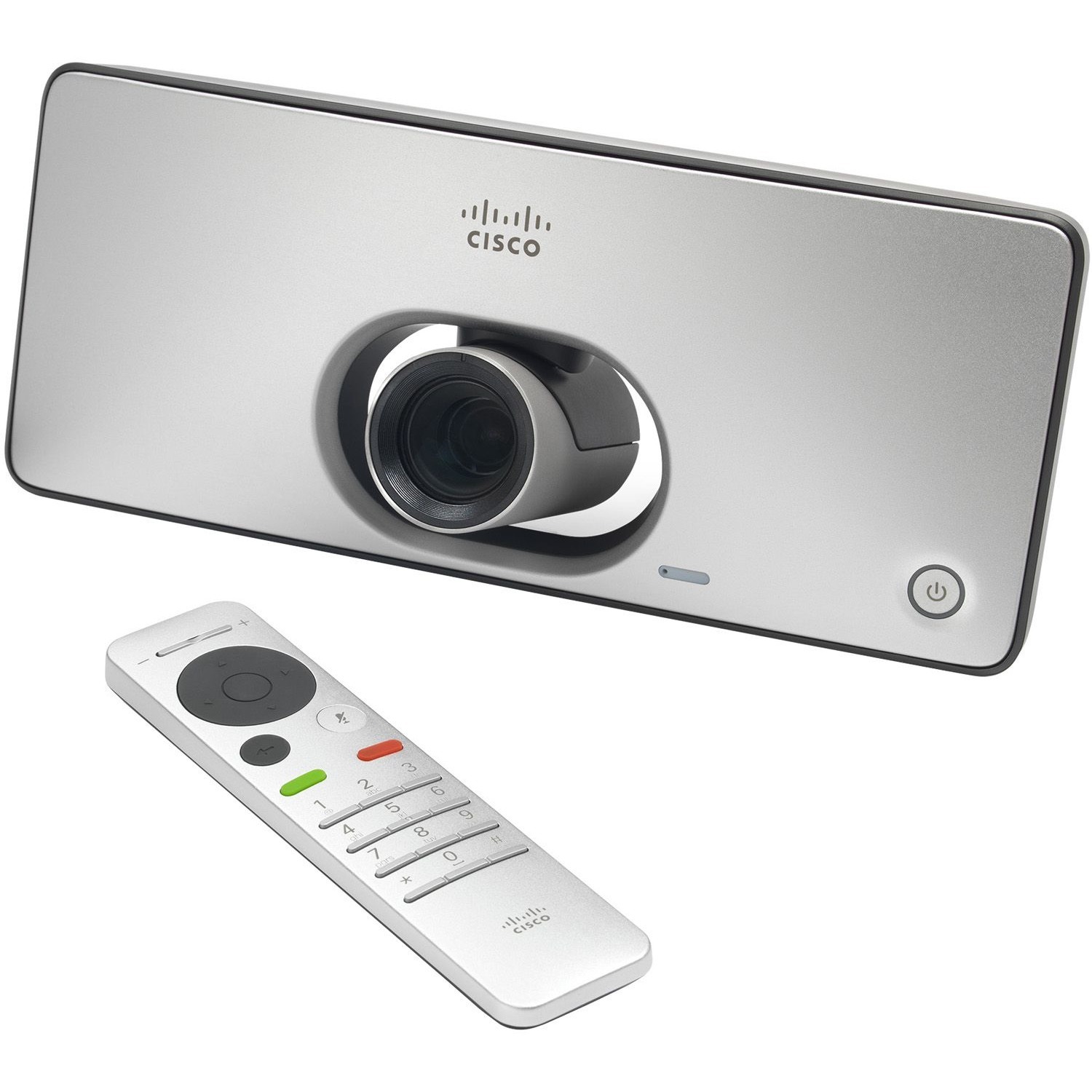

Cisco CTS-SX10-K9 Accessory

Part Number: CTS-SX10-K9
Model: Parts

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
ITU-T Recommendation
H.323H.460.18/19SIP
Video Bridging
Point-to-Point
Graphics Modes (Live)
WXGA
Maximum Video Resolution (Live)
1920 x 1080

Product Description:

  Cisco TelePresence SX10 Quick Set - 1920 x 1080 Video (Live) - Point-to-Point - WXGA - 60 fps - 1 x Network (RJ-45) - 1 x HDMI In x HDMI OutAudio Line In - USB - Ethernet - Internal Microphone(s)

Cisco Parts Accessory Model Overview

Products and parts from Cisco.
Cisco CTS-SX10-K9 Accessory Overview

The Cisco TelePresence® SX10 Quick Set is an all-in-one unit designed to video-enable your small collaboration spaces, offering great affordability for small-to-medium businesses just starting out with telepresence. With the SX10 you can extend telepresence pervasively throughout your enterprise.

This low-cost, high-quality unit combines camera and codec into a single, compact device that is mounted over your standard flat-panel display and connects through a discreet single-cable system for Power over Ethernet (PoE). High-definition video is enabled with 1080p30 resolution, while a leadership wide-angle field of view provides the best overview even in small spaces.

Technical Information
ITU-T Recommendation:
  • H.323
  • H.460.18/19
  • SIP
Video Bridging:
Point-to-Point
Video
Graphics Modes (Live):
WXGA
Maximum Video Resolution (Live):
1920 x 1080
Maximum Frame Rate:
60 fps
Video Encoding:
  • H.263
  • H.263+
  • H.264
Audio
Microphone Form Factor:
Internal
Audio Encoding:
  • G.711a
  • G.722
  • G.722.1
  • G.729ab
  • G.729
Network & Communication
Network Technology:
10/100Base-TX
Ethernet Technology:
Ethernet
Interfaces/Ports
HDMI In:
Yes
HDMI Out:
Yes
Audio Line In:
Yes
Network (RJ-45):
Yes
USB:
Yes
Number of Network (RJ-45) Ports:
1
Number of HDMI Inputs:
1
Number of Audio Line In:
1
Number of Audio Line Out:
1
Physical Characteristics
Form Factor:
Wall Mountable
Height:
4.6"
Width:
10.8"
Depth:
3.6"
Weight (Approximate):
2 lb
Miscellaneous
Package Contents:
  • SX10 Codec With Integrated HD Camera
  • Wall Mount Kit
  • Integrated Microphone
  • TRC6 Remote Control
  • Network and HDMI Cables
Item Numbers
GTIN: 0882658632891
UPC: 882658632891
EAN: 0882658632891
UNSPSC: 45111902
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Cisco CTS-SX10-K9 Accessory is also known as CSC-CTSSX10K9
