Wi-Fi Generation:
Wi-Fi 4

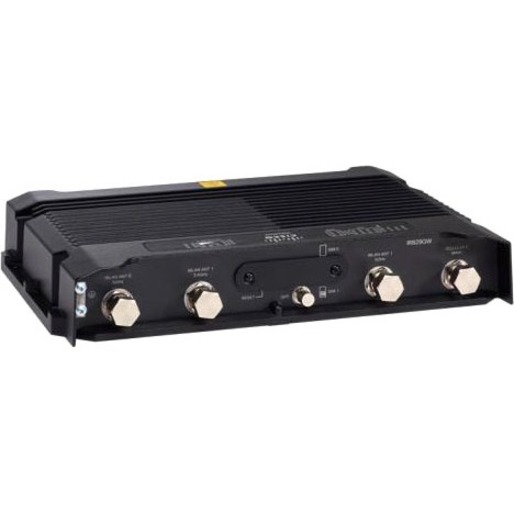

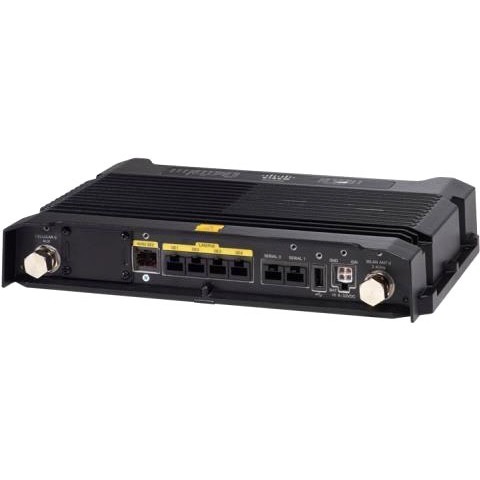

Cisco IR829GW-LTE-GA-EK9 Wireless Router
Cisco Parts Accessory Model Overview
Products and parts from Cisco.
Cisco IR829GW-LTE-GA-EK9 Wireless Router Overview
Cisco® 829 Industrial Integrated Services Routers are ruggedized integrated services routers designed for deployment in harsh industrial environments. The 829 Industrial Integrated Services Routers have a compact form factor, integrated 9-32 VDC power input, and multimode 3G and 4G LTE wireless WAN and IEEE 802.11a/b/g/n WLAN connections. With it, you can rapidly deploy a wide variety of Internet of Things (IoT) solutions, including fleet management, mass transit, and remote asset monitoring. The 829 routers are designed to withstand hostile environments including shock, vibration, dust, humidity, and water sprayed from all directions, as well as a wide temperature range (-40°C to +60°C and type-tested at +85°C for 16 hours). The 829 brings together enterprise-grade wireline-like services such as quality of service (QoS), Cisco advanced VPN technologies (DMVPN, Flex VPN and GETVPN) and multi-VRF for WAN, highly secure data, voice, video and IoT communications and Cisco IOx, an open, extensible environment for hosting applications at the network edge.
Technical Information
Wireless Specifications
Broadband Transmission Technology:
Cellular
Wireless LAN Standard:
IEEE 802.11n
ISM Band:
Yes
UNII Band:
Yes
ISM Maximum Frequency:
2.40 GHz
UNII Maximum Frequency:
5 GHz
Cellular Generation:
4G
Cellular Network Supported:
- LTE 800
- LTE 900
- LTE 1800
- LTE 2100
- LTE 2600
- GSM 800
- GSM 900
- GSM 1800
- GSM 1900
Cellular Data Connectivity Technology:
- LTE
- UMTS
- HSPA+
- EDGE
Total Wireless Transmission Speed:
37.50 MB/s
Interfaces/Ports
Number of Network (RJ-45) Ports:
4
PoE (RJ-45) Port:
Yes
Network & Communication
Ethernet Technology:
Gigabit Ethernet
VPN Supported:
Yes
Physical Characteristics
Form Factor:
- Panel-mountable
- Door Mount
Height:
1.7"
Width:
11"
Depth:
10.6"
Weight (Approximate):
4.41 lb
Miscellaneous
Country of Origin:
China
Item Numbers
GTIN:
0882658794100
UPC:
882658794100
EAN:
0882658794100
UNSPSC:
43222609
The Cisco IR829GW-LTE-GA-EK9 Wireless Router is also known as
CSC-IR829GWLTEGAEK9
