Datalogic 937201195 Fixed Barcode Scanner

Part Number: 937201195
Model: Matrix 2000
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
Interleaved 2 of 5Code 128Code 39EAN/UPCPDF 417Micro PDF-417GS1 DatabarDataMatrixQR CodeMaxiCodeAztecMicroglyphRoyal Mail Code (RM4SCC)Japanese PostPLANETPostnet
Light Source
LED

Product Description:

  Matrix-2031 Sd. Priced per unit. 4 week lead time.
Explore all Datalogic Matrix 2000 Fixed Barcode Scanners
Add to Quote
Datalogic 937201195 Fixed Barcode Scanner
Datalogic 937201195 Fixed Barcode Scanner
Datalogic 937201195 Fixed Barcode Scanner
Datalogic 937201195 Fixed Barcode Scanner Datalogic 937201195 Fixed Barcode Scanner Datalogic 937201195 Fixed Barcode Scanner
Full specifications (PDF)

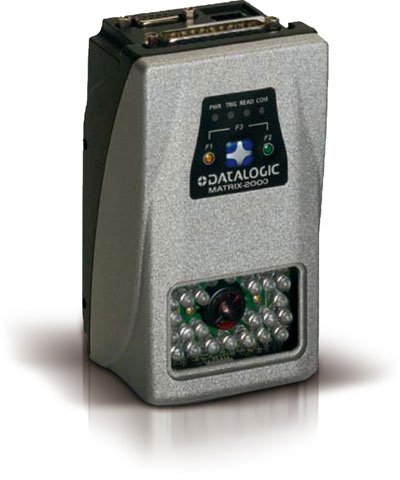

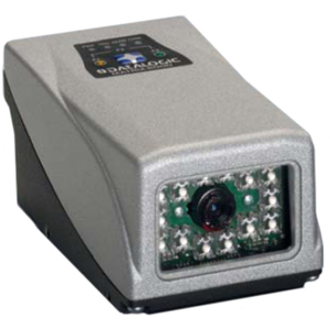

Datalogic Matrix 2000 Fixed Barcode Scanner Model Overview

The Datalogic Matrix 2000 is a fully integrated barcode 2D reader that combines a LED lighting system, image capturing, decoding and communication interfaces in a single compact product. Rugged construction and ESD Safe versions make this reader suitable for industrial applications in all the main industries. The Matrix 2000 offers 2 main versions including a VGA (640x480 pixels) CCD sensor for standard applications and SXGA (1280x1024 pixels) CMOS sensor for wider FOV.
Datalogic 937201195 Fixed Barcode Scanner Overview

Datalogic's Matrix-2031 Standard Density Bar Code Reader is a fully integrated area reader that combines a LED lighting system, image capturing, decoding and communication interfaces in a single compact product. Rugged construction and ESD Safe versions make this reader suitable for any industrial application in all the main industries. Powerful proprietary decoding libraries provide the Matrix with excellent performance on printed or DPM (Direct Part Marked) symbols even when damaged or of low quality. The Autolearning function automatically sets photometry and decoding parameters making installation faster and easier, even for non-expert users. Matrix-2000 can verify code quality by monitoring how well the printing/marking system is performing.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Interleaved 2 of 5
  • Code 128
  • Code 39
  • EAN/UPC
  • PDF 417
  • Micro PDF-417
  • GS1 Databar
  • DataMatrix
  • QR Code
  • MaxiCode
  • Aztec
  • Microglyph
  • Royal Mail Code (RM4SCC)
  • Japanese Post
  • PLANET
  • Postnet
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
10 mil
Depth of Field:
  • 3.94" - 4.53"@6mil - 1D & Stacked
  • 3.94" - 4.53"@10mil - 2D
Interfaces/Ports
Host Interface:
Serial
Physical Characteristics
Height:
4.8"
Width:
2.9"
Depth:
2.2"
Weight (Approximate):
13.40 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • RS232
  • RS485 Tailgate

USB Cable separate

Item Numbers
UNSPSC: 43211701
