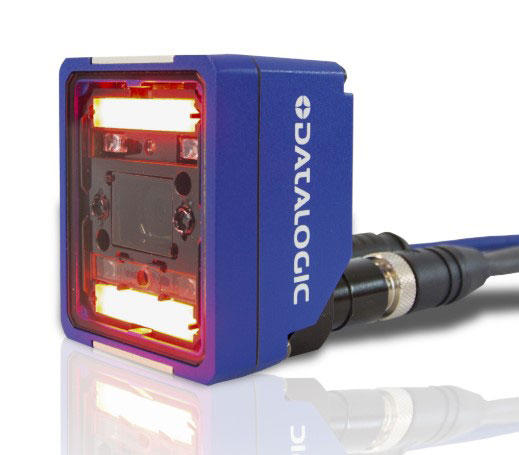

Datalogic Matrix 220 – Barcode Scanner – Scanner Only

The MATRIX 220™ by Datalogic is the most compact, high-performance image-based barcode reader, specifically engineered for versatile applications across Electronics, Automotive, Packaging, and Document Handling industries. Featuring a 1.2 MPixel high-resolution sensor and advanced multicore processing platform, this imager excels in reading Direct Part Marking (DPM) barcodes with its innovative lighting solutions. Its polarized and diffused light options ensure optimal illumination on various surfaces. With its Industry 4.0 compliant OPC UA protocol and cost-effective communication options like Power over Ethernet, the MATRIX 220 is an exceptional solution that combines performance, reliability, and robust design to enhance operational efficiency.

Key Features

• Ultra-compact dimensions for easy installation in tight spaces.
• High Dynamic Range (HDR) imaging for improved image quality and contrast.
• Multicore image processing for high speed and excellent decoding capabilities.
• Embedded Digimarc Barcode technology for advanced decoding applications.
• IP65 and IP67 ratings for robust protection in harsh environments.
• Easy integration and intuitive user interface with green and red spot lights.

Specifications

• Dimensions: 78mm x 47mm x 38mm (3.07 x 1.85 x 1.50 in)
• Weight: 173 gr (6.1 oz)
• Operating Temperature: -10 to 50 °C / 14 to 122 °F
• Protection Class: IP65, IP67
• Sensor: 1.2 MPixel (1280 x 960), 45 frames/s
• Connectivity: Power over Ethernet, PROFINET, Ethernet/IP
• Reading Range: Minimum 40 mm, Maximum 600 mm (depending on model)
