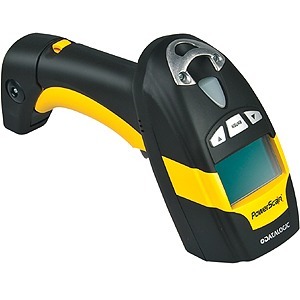

Datalogic PowerScan PM8500 – Barcode Scanner – 1D

Part Number: PM8500-910RK11
Model: PowerScan PM8500
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Handheld
Scanner Capability
1D

Product Description:

  Datalogic PowerScan PM8500 Handheld Barcode Scanner Kit - Wireless Connectivity - 11.80" Scan Distance - 1D, 2D - LED - Imager - Omni-directional - , Radio Frequency - USB
Explore all Datalogic PowerScan PM8500 Barcode Scanners
Add to Quote
Datalogic PM8500-910RK11 Barcode Scanner
Datalogic PM8500-910RK11 Barcode Scanner
Datalogic PM8500-910RK11 Barcode Scanner
Datalogic PM8500-910RK11 Barcode Scanner
Datalogic PM8500-910RK11 Barcode Scanner
Datalogic PM8500-910RK11 Barcode Scanner Datalogic PM8500-910RK11 Barcode Scanner Datalogic PM8500-910RK11 Barcode Scanner Datalogic PM8500-910RK11 Barcode Scanner Datalogic PM8500-910RK11 Barcode Scanner
Full specifications (PDF)

Datalogic PowerScan PM8500 Barcode Scanner Model Overview

The Datalogic PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System. The PowerScan PM8500 reader's feature a high-resolution Mega-Pixel imaging sensor that is capable of outstanding performance in industrial applications. It is offered in three optic models: Standard Range and High Density models are for typical bar code reading conditions (for medium and high-resolution codes respectively); the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes.
Datalogic PM8500-910RK11 Barcode Scanner Overview

The PowerScan PM8500 is Datalogic Scanning's premium line of rugged industrial handheld data collection products. The PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System. The PowerScan PM8500 reader's feature a high-resolution Mega-Pixel imaging sensor that is capable of outstanding performance in industrial applications. It is offered in three optic models: Standard Range and High Density models are for typical bar code reading conditions (for medium and high-resolution codes respectively); the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code

Postal Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 2.9" - 6.1"@5mil
  • 3.1" - 7.3"@5mil - PDF
  • 3.1" - 6.5"@7.5mil - Data Matrix/QR
  • 2.1" - 9.7"@10mil
  • 2.7" - 7.7"@10mil - Data Matrix/QR
  • 1.5" - 10"@10mil - PDF
  • 1.9" - 10.6"@13mil
  • 2.1" - 14.4"@20mil
Scan Pattern:
Omni-directional
Scanning Distance:
11.80"
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
USB
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Height:
8.1"
Width:
2.7"
Depth:
4.5"
Weight (Approximate):
12.70 oz
Miscellaneous
Package Contents:
  • PowerScan PM8500 Handheld Bar Code Reader
  • Power Supply
  • Power Cord with US Plug
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0032377190589
UPC: 032377190589
EAN: 0032377190589
UNSPSC: 43211701
