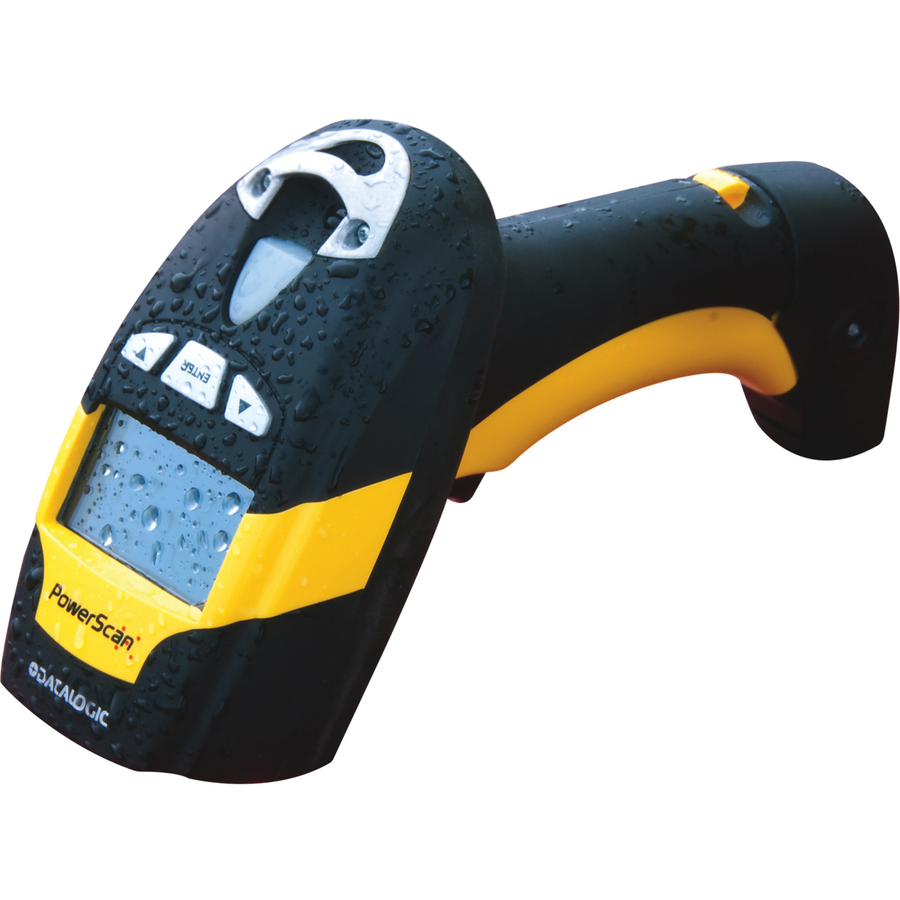

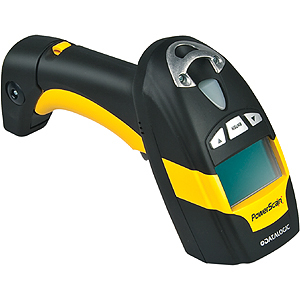

Datalogic PowerScan PM8500 – Barcode Scanner – 1D

Part Number: PM8500-D910RK10
Model: PowerScan PM8500
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Datalogic PowerScan PM8500-D Bar Code Reader - Wireless
Explore all Datalogic PowerScan PM8500 Barcode Scanners
Add to Quote
Datalogic PM8500-D910RK10 Barcode Scanner
Datalogic PM8500-D910RK10 Barcode Scanner
Datalogic PM8500-D910RK10 Barcode Scanner
Datalogic PM8500-D910RK10 Barcode Scanner
Datalogic PM8500-D910RK10 Barcode Scanner
Datalogic PM8500-D910RK10 Barcode Scanner
Datalogic PM8500-D910RK10 Barcode Scanner Datalogic PM8500-D910RK10 Barcode Scanner Datalogic PM8500-D910RK10 Barcode Scanner Datalogic PM8500-D910RK10 Barcode Scanner Datalogic PM8500-D910RK10 Barcode Scanner Datalogic PM8500-D910RK10 Barcode Scanner
Full specifications (PDF)

Datalogic PowerScan PM8500 Barcode Scanner Model Overview

The Datalogic PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System. The PowerScan PM8500 reader's feature a high-resolution Mega-Pixel imaging sensor that is capable of outstanding performance in industrial applications. It is offered in three optic models: Standard Range and High Density models are for typical bar code reading conditions (for medium and high-resolution codes respectively); the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes.
Datalogic PM8500-D910RK10 Barcode Scanner Overview

The PowerScan PM8500-D is Datalogic Scanning's premium line of rugged industrial handheld data collection products. The PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code

Postal Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Image Sensor Type:
Imager
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 2.9" - 6.1"@5mil
  • 2.1" - 9.7"@10mil
  • 1.9" - 10.6"@13mil
  • 2.1" - 14.4"@20mil
  • 3.1" - 7.3"@5mil - PDF
  • 1.5" - 10"@10mil - PDF
  • 3.1" - 6.5"@7.5mil - Data Matrix
  • 2.7" - 7.7"@10mil - Data Matrix
Scan Pattern:
Omni-directional
Scanning Distance:
11.80"
Network & Communication
Radio Frequency:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Height:
8.3"
Width:
2.7"
Depth:
4.5"
Weight (Approximate):
13.80 oz
Miscellaneous
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0778889926437
UPC: 778889926437
EAN: 0778889926437
UNSPSC: 43211701
