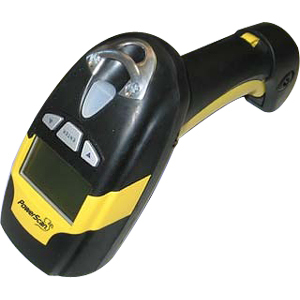

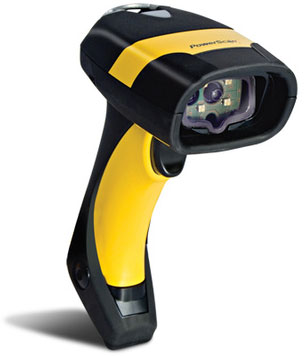

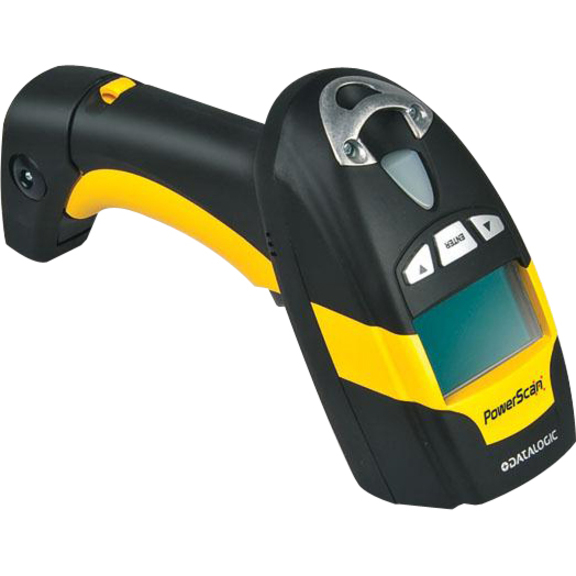

Datalogic PowerScan PM8500 – Barcode Scanner – 1D

Part Number: PM8500-WA910RB
Model: PowerScan PM8500
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  Datalogic PowerScan 8500 2D - Wireless Connectivity - 11.80" Scan Distance - 1D, 2D - LED - Imager - Omni-directional - , Radio Frequency - Yellow, Black
Explore all Datalogic PowerScan PM8500 Barcode Scanners
Add to Quote
Datalogic PM8500-WA910RB Barcode Scanner
Datalogic PM8500-WA910RB Barcode Scanner
Datalogic PM8500-WA910RB Barcode Scanner
Datalogic PM8500-WA910RB Barcode Scanner
Datalogic PM8500-WA910RB Barcode Scanner
Datalogic PM8500-WA910RB Barcode Scanner
Datalogic PM8500-WA910RB Barcode Scanner Datalogic PM8500-WA910RB Barcode Scanner Datalogic PM8500-WA910RB Barcode Scanner Datalogic PM8500-WA910RB Barcode Scanner Datalogic PM8500-WA910RB Barcode Scanner Datalogic PM8500-WA910RB Barcode Scanner
Full specifications (PDF)

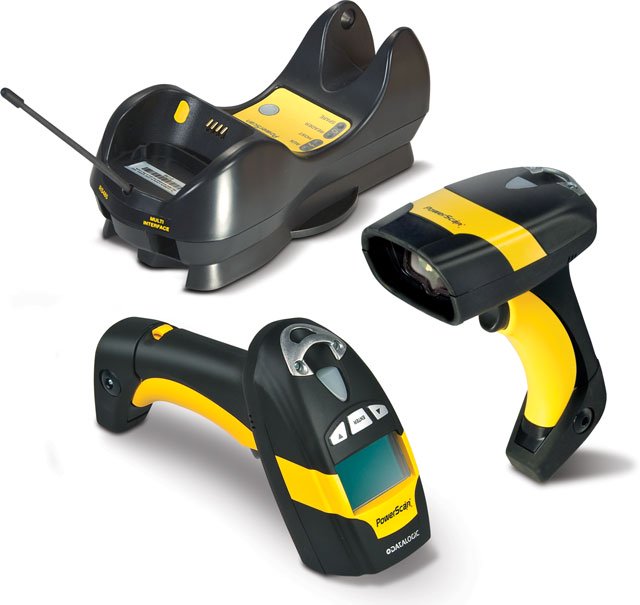

Datalogic PowerScan PM8500 Barcode Scanner Model Overview

The Datalogic PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System. The PowerScan PM8500 reader's feature a high-resolution Mega-Pixel imaging sensor that is capable of outstanding performance in industrial applications. It is offered in three optic models: Standard Range and High Density models are for typical bar code reading conditions (for medium and high-resolution codes respectively); the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes.
Datalogic PM8500-WA910RB Barcode Scanner Overview

The PowerScan 8000 product series is Datalogic ADC's premium line of rugged industrial handheld data collection products. The PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System™.

The PowerScan PM8500 reader's feature a high-resolution Mega-Pixel imaging sensor that is capable of outstanding performance in industrial applications. It is offered in three optic models: Standard Range and High Density models are for typical bar code reading conditions (for medium and high-resolution codes respectively); the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linear Codes

2D Codes:

  • Aztec Code
  • Aztec Mesas
  • Data Matrix
  • MaxiCode
  • QR Code

Postal Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • China Post
  • Japanese Post
  • KIX Post
  • Korea Post
  • Planet Code
  • Postnet
  • Royal Mail Code (RM4SCC)

Stacked Codes:

  • EAN/JAN Composites
  • GS1 DataBar Composites
  • GS1 DataBar Expanded Stacked
  • GS1 DataBar Stacked
  • GS1 DataBar Stacked Omnidirectional
  • MacroPDF
  • MicroPDF417
  • PDF417
  • UPC A/E Composites
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
20 mil
Depth of Field:
  • 2.9" - 6.1"@5mil
  • 3.1" - 7.3"@5mil - PDF
  • 3.1" - 6.5"@7.5mil - Data Matrix/QR
  • 2.1" - 9.7"@10mil
  • 2.7" - 7.7"@10mil - Data Matrix/QR
  • 1.5" - 10.0"@10mil - PDF
  • 1.9" - 10.6"@13mil
  • 2.1" - 14.4"@20mil
Scan Pattern:
Omni-directional
Scanning Distance:
11.80"
Network & Communication
Radio Frequency:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Height:
8.1"
Width:
2.7"
Depth:
4.5"
Weight (Approximate):
12.70 oz
Miscellaneous
Package Contents:
  • PowerScan 8500 2D
  • Removable Battery
Additional Information:

USB Cable separate

Environmentally Friendly:
Yes
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0682017492094
UPC: 682017492094
EAN: 0682017492094
UNSPSC: 43211701

Recommended Accessories

Category

  • Docks and Cradles (2)
  • Mobile Computer Accessories (2)
  • Scanner Accessories (4)

Recommended Accessories for Model: Datalogic PM8500-WA910RB Barcode Scanner

Top Docks and Cradles Purchased With Datalogic PM8500-WA910RB

Top Mobile Computer Accessories Purchased With Datalogic PM8500-WA910RB

Top Scanner Accessories Purchased With Datalogic PM8500-WA910RB

See All Scanner Accessories for Datalogic PM8500-WA910RB Barcode Scanner >
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Datalogic PM8500-WA910RB Barcode Scanner is also known as DTL-PM8500-WA910RB or PM8500WA910RB.
