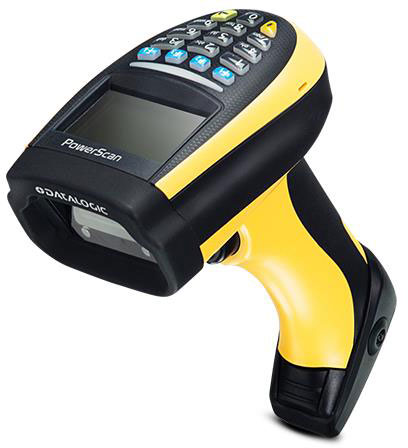

Datalogic PowerScan PM9300 – Barcode Scanner – Cordless – 1D

Part Number: PM9300-DKAR433RB

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Cordless
Form Factor
Handheld
Interface Options
Bluetooth
Scanner Capability
1D

Product Description:

  Cordless Barcode Scanner, Datalogic PowerScan PM9300, 1D Laser, Rugged, Handheld, 433 MHz, Multi-Interface Connection, SCANNER ONLY, Black/Yellow, Auto Range, 16-Key Display, Removeable Battery, 35 Scans/Second

DataLogic PowerScan PM9300 Barcode Scanner Model Overview

The PowerScan™ PM9300 AR Laser scanner represents a pinnacle of efficiency and versatility in barcode scanning technology. Engineered for enhanced productivity in manufacturing, logistics, and retail environments, this scanner offers an impressive reading range of up to 11.5 meters on reflective codes. With its robust build, featuring an IP65 water and particulate sealing rating, the PM9300 ensures reliable performance in challenging conditions. Choose from three models tailored to various needs: the basic PM9300, the PM9300-D with a display, or the advanced PM9300-DK featuring a full keypad for sophisticated data entry and interaction.
Key Features:
  • Long Reading Range: Up to 11.5 m / 37.0 ft on reflective codes.
  • Versatile Options: Available in basic, display with 4-key keypad, and full alphanumeric keypad models.
  • Datalogic STAR Cordless System™: Offers scalable communications with seamless roaming capabilities.
  • Superior Feedback: Three Green Lights (3GL™) and ‘Green Spot’ technology for clear good-read feedback.
  • Robust Construction: IP65 rating, drop resistance from 2.0 m / 6.5 ft, and operates in temperatures ranging from -20 to 50 °C.
  • User Replaceable Battery: High-capacity 3350 mAh Lithium-Ion battery delivering over 40,000 reads per charge.

Specifications:
  • Communication: Datalogic STAR Cordless System, Point-to-Point and Multi-Point configurations.
  • Frequency: 433 MHz or 910 MHz options.
  • Reading Capability: GS1 DataBar™, UPC/EAN, Code 39, and more.
  • Physical Dimensions:
    • Weight: PM9300-AR - 435.0 g / 15.3 oz, PM9300-DAR/P-9300-DKAR - 465.0 g / 16.4 oz
    • Dimensions: PM9300-AR - 21.2 x 11.0 x 7.4 cm
  • Environmental: Humidity 0-95%, drop resistance 2.0 m, and operational temperature -20 to 50 °C.
  • Battery: 3350 mAh Lithium-Ion, charge time: External Power - 4.5 hours.
  • Warranty: 3-Year Factory Warranty.
Datalogic PM9300-DKAR433RB Barcode Scanner Overview

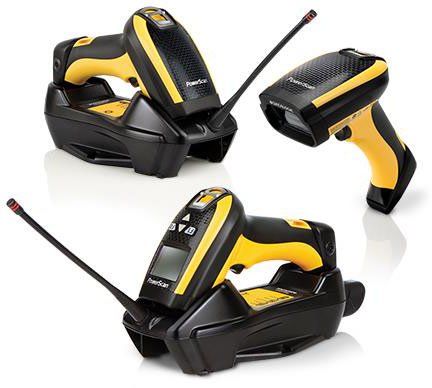

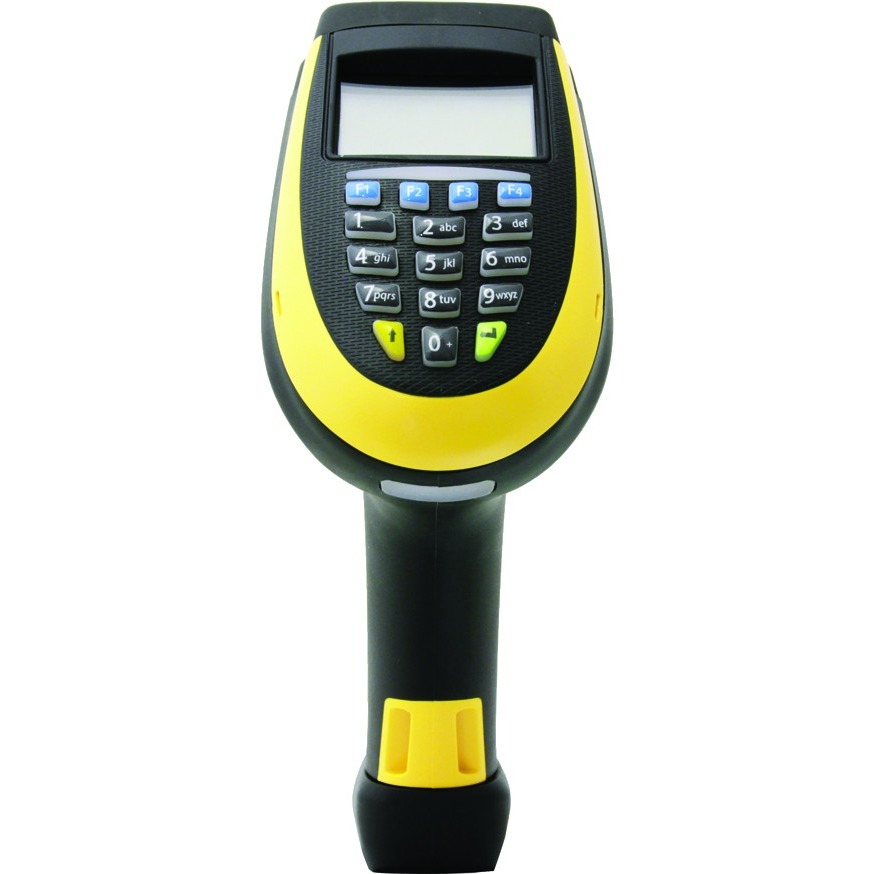

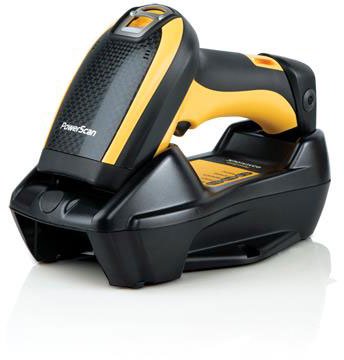

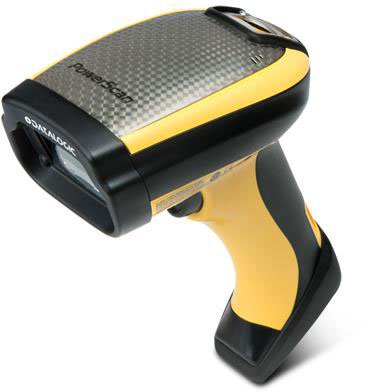

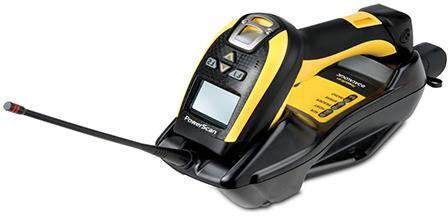

The PowerScan™ PM9300 series includes different models able to satisfy all customers' needs; the PM9300 is the basic cordless model, the PM9300-D intermediate model includes a display and 4-key keypad, and the ultimate PM9300-DK model features a display with a full 16-key keyboard. The PM9300-DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal.

Narrow band radio communications with Datalogic's STAR Cordless System™ 2.0 provides the key to increased productivity and flexibility in the workplace. It offers scalable solutions from simple point-to-point applications to networking capabilities combined with seamless roaming for complex installations.

The PM9300 readers feature Datalogic's exclusive 3 Green Lights (3GL™) for superior good-read feedback. The patented 'Green Spot' directly on the code and dual Good Read LEDs on the top and back of the cap add increased visibility at any angle.

FEATURES

  • Optics available in:
    • Standard Range: contact up to 1.6 m / 5.2 ft
    • Auto Range: up to 11.5 m / 37.0 ft on reflective codes
  • 100% Compatible with Datalogic's STAR Cordless System
  • Radio frequencies available in 433 or 910 MHz
  • Point-to-point and multi-point transmission
  • Seamless roaming
  • Ethernet Connectivity (Standard and Industrial)
  • Datalogic 3GL™ and loud beeper for good-read feedback
  • Drop resistance to 2.0 m / 6.5 ft
  • EASEOFCARE Service Plans offer a wide range of service options to protect your investment
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
1D
Barcode Symbology Supported:
  • GS1 DataBar™ linear codes
  • UPC/EAN
  • UPC/EAN P2/P5 add ons
  • UPC/EAN Coupons
  • ISBN
  • Code 128
  • EAN 128
  • Code 39
  • Code 39 Full ASCII
  • Code 39 CIP
  • Code 32
  • Codabar
  • Interleaved 2 of 5
  • Standard 2 of 5
  • MSI
  • Code 93
Light Source:
Laser
Scan Rate:
35 scan/s
Network & Communication
Radio Frequency:
Yes
Physical Characteristics
Form Factor:
Handheld
Product Color:
  • Yellow
  • Black
Weight (Approximate):
15.34 oz
Item Numbers
GTIN: 5711783393399
EAN: 5711783393399
UNSPSC: 43211701
