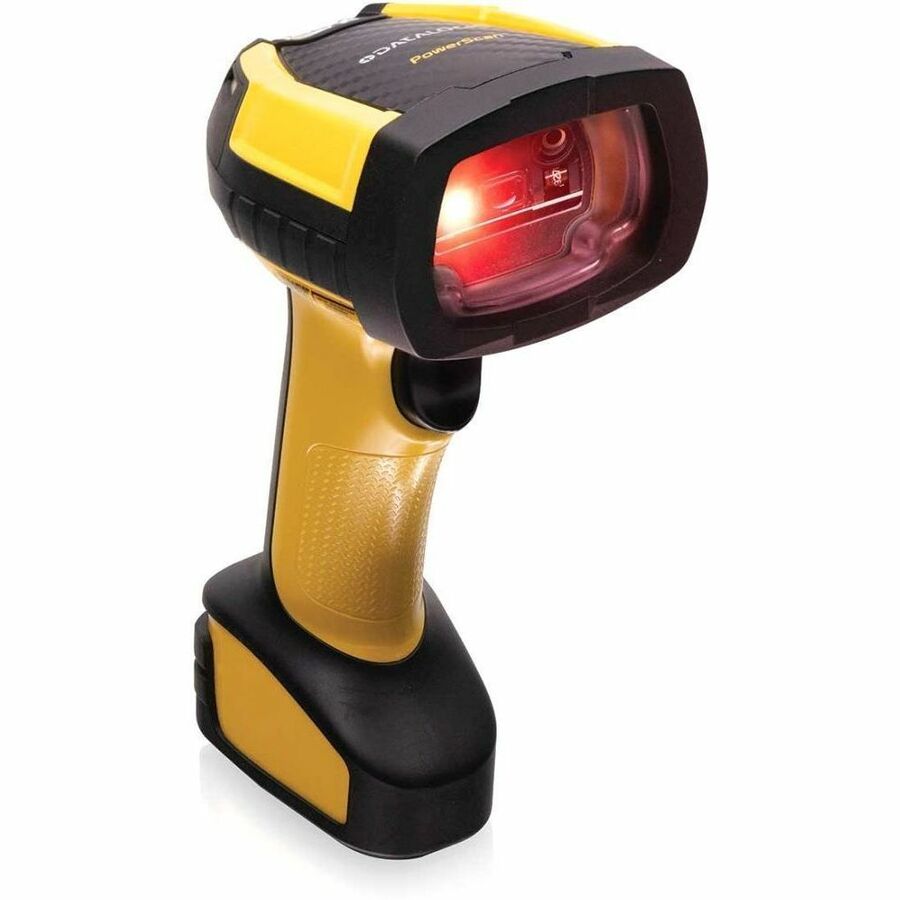

Datalogic PM9600 – Barcode Scanner

Part Number: PM9600-DKHP910RB
Model: PM9600
3-year Premium Plus ($124.15)
3-year Premium ($69.45)
No Support
Add to My Shopping List Add to Compare
$784.04
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Light Source
LED
Image Sensor Type
Imager
Scan Mode
Trigger

Product Description:

  Barcode Scanners, Datalogic PM9600, High Performance, 910 MHz, Display/16-Key Keypad, Removeable Battery, Scanner Only
Explore all Datalogic PM9600 Barcode Scanners
Add to Quote
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner
DataLogic PM9600-DKHP910RB Barcode Scanner DataLogic PM9600-DKHP910RB Barcode Scanner DataLogic PM9600-DKHP910RB Barcode Scanner DataLogic PM9600-DKHP910RB Barcode Scanner DataLogic PM9600-DKHP910RB Barcode Scanner DataLogic PM9600-DKHP910RB Barcode Scanner DataLogic PM9600-DKHP910RB Barcode Scanner DataLogic PM9600-DKHP910RB Barcode Scanner DataLogic PM9600-DKHP910RB Barcode Scanner DataLogic PM9600-DKHP910RB Barcode Scanner
Full specifications (PDF)

Datalogic PM9600 Barcode Scanner Model Overview

Depending on your application, the Datalogic PowerScan 9600 2D Barcode Scanner offers three different performance levels. The Standard Range variant has a single camera that can capture low density 1D and 2D codes within conventional reading ranges. Choose the High Performance reader with dual cameras for longer distance reading. Finally, the Document Capture methodology, which is exclusive to Datalogic, will take color photographs for quality control or signature confirmation. The 9600 Series scanners, like all Datalogic scanners, provide mild white light illumination and a successful ''Green Spot'' for a successful read, even on damaged or dirty barcodes, all at an affordable price for handheld scanners.
DataLogic PM9600-DKHP910RB Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

MODULARITY WITH THE BEST FLEXIBILITY

The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Omni-directional
Scanning Distance:
95.60"
Features:
  • Beep
  • 3GL
  • Vibration
  • Notification LED
  • Ergonomic Design
Display Screen:
Yes
Number of Keys:
16
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
3.20 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Durability:
  • Water Resistant
  • Dust Resistant
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
1 lb
Miscellaneous
Ingress Protection (IP) Rating:
  • IP65
  • IP67
Application/Usage:
  • Industrial
  • Warehouse
  • Manufacturing
  • Logistics
  • Retail
  • Inventory
  • Assembly Line
  • Component Tracking
  • Picking
  • Sorting
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Batteries (1)
  • Docks and Cradles (4)
  • Mounting Hardware and Stands (1)

Recommended Accessories for Model: DataLogic PM9600-DKHP910RB Barcode Scanner

Top Batteries Purchased With Datalogic PM9600-DKHP910RB

Top Docks and Cradles Purchased With Datalogic PM9600-DKHP910RB

See All Docks and Cradles for DataLogic PM9600-DKHP910RB Barcode Scanner >

Top Mounting Hardware and Stands Purchased With Datalogic PM9600-DKHP910RB

Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The DataLogic PM9600-DKHP910RB Barcode Scanner is also known as DTL-PM9600DKHP910RB or PM9600DKHP910RB.
