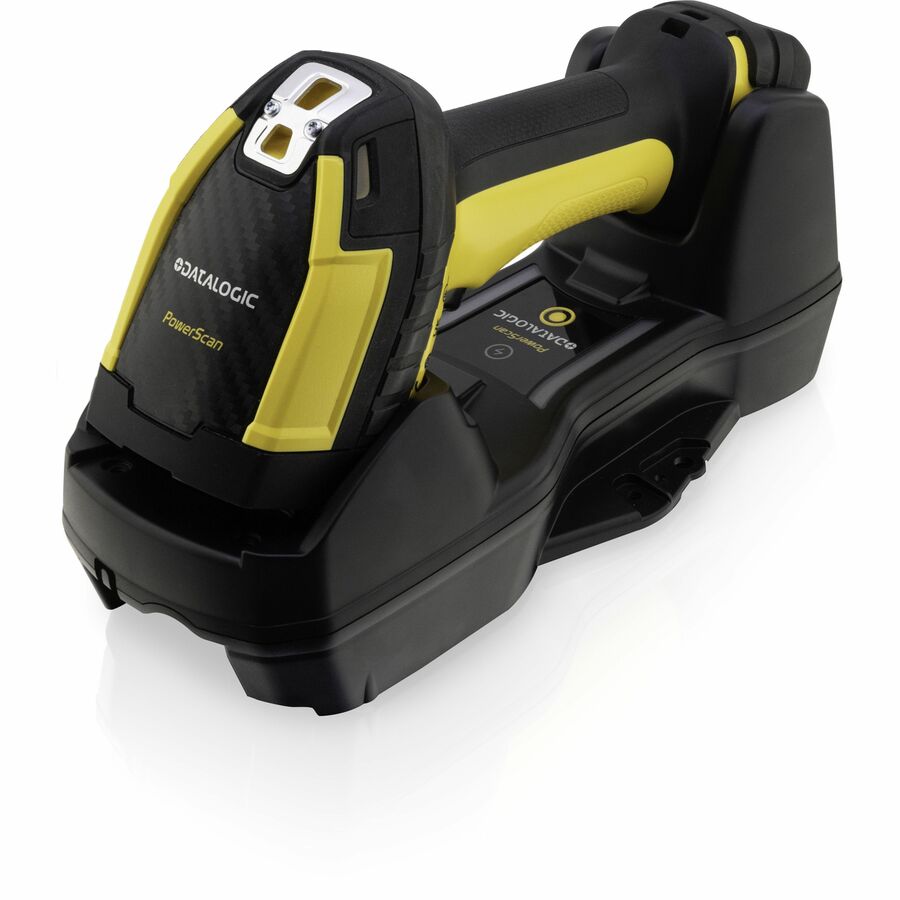

Datalogic PM9600 – Barcode Scanner

Part Number: PM9600-DKHP910RK20
Model: PM9600
3-year Premium Plus ($124.15)
3-year Premium ($69.45)
No Support
Add to My Shopping List Add to Compare
$1,102.49

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Barcode Symbology Supported
1D / Linear Codes: Auto discriminates all standard 1D codes including GS1 DataBar linear codes.2D Codes: Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot codePostal Codes: Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish PostStacked Codes: EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E CompositesDigital Watermarking: Digimarc Barcodes (HP and DC models)
Light Source
LED

Product Description:

  Barcode Scanners, Datalogic PM9600, High Performance, 910Mhz, Display/16-Key Keypad, Removeable Battery, RS-232 Kit (Kit Includes Scanner, Cradle BC9630-910, Cable CAB-548, Power Supply 8-0935 And Power Cord 6003-0941)
Explore all Datalogic PM9600 Barcode Scanners
Add to Quote
Datalogic PM9600-DKHP910RK20 Barcode Scanner
Datalogic PM9600-DKHP910RK20 Barcode Scanner
Datalogic PM9600-DKHP910RK20 Barcode Scanner
Datalogic PM9600-DKHP910RK20 Barcode Scanner
Datalogic PM9600-DKHP910RK20 Barcode Scanner
Datalogic PM9600-DKHP910RK20 Barcode Scanner
Datalogic PM9600-DKHP910RK20 Barcode Scanner
Datalogic PM9600-DKHP910RK20 Barcode Scanner
Datalogic PM9600-DKHP910RK20 Barcode Scanner Datalogic PM9600-DKHP910RK20 Barcode Scanner Datalogic PM9600-DKHP910RK20 Barcode Scanner Datalogic PM9600-DKHP910RK20 Barcode Scanner Datalogic PM9600-DKHP910RK20 Barcode Scanner Datalogic PM9600-DKHP910RK20 Barcode Scanner Datalogic PM9600-DKHP910RK20 Barcode Scanner Datalogic PM9600-DKHP910RK20 Barcode Scanner
Full specifications (PDF)

Datalogic PM9600 Barcode Scanner Model Overview

Depending on your application, the Datalogic PowerScan 9600 2D Barcode Scanner offers three different performance levels. The Standard Range variant has a single camera that can capture low density 1D and 2D codes within conventional reading ranges. Choose the High Performance reader with dual cameras for longer distance reading. Finally, the Document Capture methodology, which is exclusive to Datalogic, will take color photographs for quality control or signature confirmation. The 9600 Series scanners, like all Datalogic scanners, provide mild white light illumination and a successful ''Green Spot'' for a successful read, even on damaged or dirty barcodes, all at an affordable price for handheld scanners.
Datalogic PM9600-DKHP910RK20 Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System™. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

MODULARITY WITH THE BEST FLEXIBILITY

The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D / Linear Codes:

  • Auto discriminates all standard 1D codes including GS1 DataBar linear codes.

2D Codes:

  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Codee; Dot code

Postal Codes:

  • Australian Post; China Post; IMB; Japanese Post; KIX Post; Planet Code; Portuguese Post; Postnet; Royal Mail Code (RM4SCC); Swedish Post

Stacked Codes:

  • EAN/JAN Composites; GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MacroPDF; MicroPDF417; PDF417; UPC A/E Composites

Digital Watermarking:

  • Digimarc Barcodes (HP and DC models)


Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
  • Area
  • Omni-directional
Scanner Range:
Short Range
Scanning Distance:
95.60"
Features:
  • Beep
  • 3GL
  • Vibration
  • Notification LED
  • Ergonomic Design
Display Screen:
Yes
Number of Keys:
16
Cable Type Included:
Serial
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Drop Specification:
  • Withstands 50 drops from 2.5 m / 8.2 ft @ 20 °C / 68 °F
  • Withstands 50 drops from 2.0 m / 6.6 ft @ -20 °C / -4 °
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Network & Communication
Bluetooth:
Yes
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
Serial
Power Description
Power Supply Included:
Yes
Battery Information
Battery Included:
Yes
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
3.20 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Color Family:
Dual Color
Product Color:
  • Black
  • Yellow
Durability:
  • Water Resistant
  • Dust Resistant
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
14.99 oz
Miscellaneous
Package Contents:
  • 1 x PowerScan PM9600-HP Barcode Scanner
  • 1 x Cradle BC9630-910
  • 1 x Cable CAB-548
  • 1 x Power Supply 8-0935
  • 1 x Power Cord 6003-0941
Ingress Protection (IP) Rating:
  • IP65
  • IP67
Application/Usage:
  • Industrial
  • Warehouse
  • Manufacturing
  • Logistics
  • Retail
  • Inventory
  • Assembly Line
  • Component Tracking
  • Picking
  • Sorting
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
