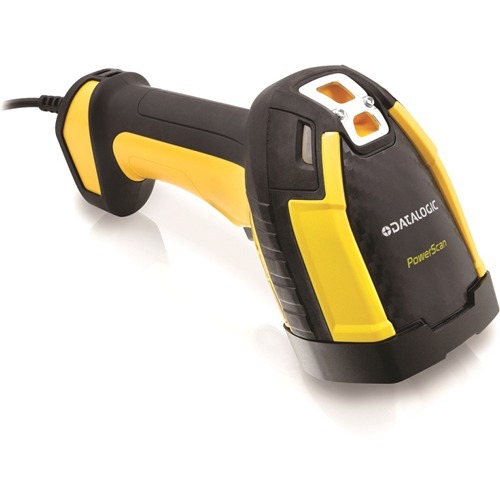

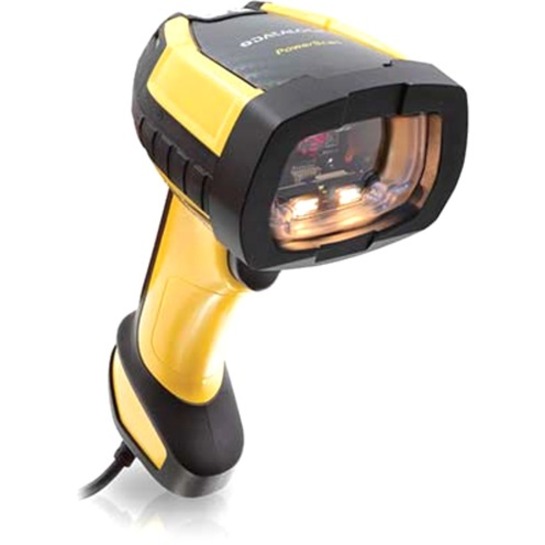

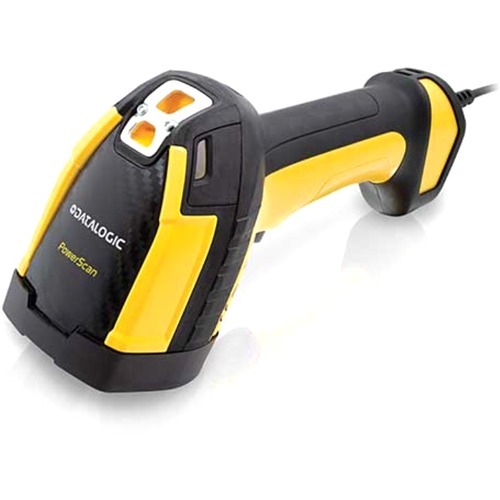

Datalogic PM9600 – Barcode Scanner

Part Number: PM9600-SR910RBK12
Model: PM9600
Add to My Shopping List Add to Compare
$822.60

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Wireless
Scanning Capability
1D2D
Light Source
LED
Image Sensor Type
Imager

Product Description:

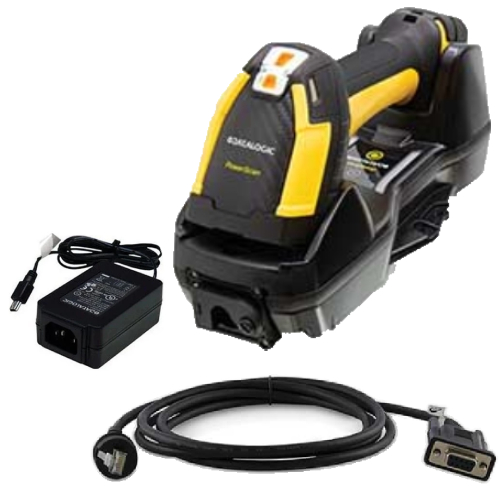

  Barcode Scanner, Datalogic PM9600, PowerScan PM9600-SR, Standard Range, 910MHz, USB Kit (Kit includes Scanner PM9600-SR, Cradle BC9620-910, Cable CAB-438, Power Supply 8-0935 and Power Cord 6003-0941)
Explore all Datalogic PM9600 Barcode Scanners
Add to Quote
Datalogic PM9600-SR910RBK12 Barcode Scanner
Datalogic PM9600-SR910RBK12 Barcode Scanner
Datalogic PM9600-SR910RBK12 Barcode Scanner
Datalogic PM9600-SR910RBK12 Barcode Scanner
Datalogic PM9600-SR910RBK12 Barcode Scanner
Datalogic PM9600-SR910RBK12 Barcode Scanner
Datalogic PM9600-SR910RBK12 Barcode Scanner Datalogic PM9600-SR910RBK12 Barcode Scanner Datalogic PM9600-SR910RBK12 Barcode Scanner Datalogic PM9600-SR910RBK12 Barcode Scanner Datalogic PM9600-SR910RBK12 Barcode Scanner Datalogic PM9600-SR910RBK12 Barcode Scanner
Full specifications (PDF)

Datalogic PM9600 Barcode Scanner Model Overview

Depending on your application, the Datalogic PowerScan 9600 2D Barcode Scanner offers three different performance levels. The Standard Range variant has a single camera that can capture low density 1D and 2D codes within conventional reading ranges. Choose the High Performance reader with dual cameras for longer distance reading. Finally, the Document Capture methodology, which is exclusive to Datalogic, will take color photographs for quality control or signature confirmation. The 9600 Series scanners, like all Datalogic scanners, provide mild white light illumination and a successful ''Green Spot'' for a successful read, even on damaged or dirty barcodes, all at an affordable price for handheld scanners.
Datalogic PM9600-SR910RBK12 Barcode Scanner Overview

ULTRA-RUGGED WITH NEW BALANCED ERGONOMICS!

The PowerScan family of bar code readers are the ultimate industrial handheld scanners designed and constructed to withstand the toughest environmental conditions. The PowerScan 9600 imagers have an ultra-rugged design, an ergonomic shape with well-balanced weight to reduce operator stress during daily activities and an intuitive aiming system, allowing the highest first-pass reading rate while reducing unnatural wrist movement.

MOBILITY ENHANCES PRODUCTIVITY

The PowerScan 9600 cordless model further enhances the operator efficiency and safety with Datalogic's STAR Cordless System. Accurate power management allows long lasting battery life to always guarantee more than one shift of intensive scanning. The PowerScan 9600 scanner features Datalogic's Wireless Charging System. Based on inductive-charging technology, Datalogic's Wireless Charging System eliminates battery contacts and pins that often get dirty, bent, or broken over time - and this removes a key point of failure for devices used in industrial and retail functions.

MODULARITY WITH THE BEST FLEXIBILITY

? The BC9600 base/charger has a modular design and is available with multiple interface plug-ins for standard and industrial communication, such as RS-232, USB, Standard Ethernet and Industrial Ethernet protocols.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Light Source:
LED
Image Sensor Type:
Imager
Scan Mode:
Trigger
Scan Pattern:
Omni-directional
Scanner Range:
Standard Range
Scanning Distance:
68.90"
Features:
  • Vibration
  • Beep
  • Notification LED
Cable Type Included:
USB
Field of View (Horizontal):
38°
Field of View (Vertical):
24°
Reading Angle (Skew):
52°
Reading Angle (Pitch):
52°
Reading Angle (Roll):
360°
Maximum Ambient Light:
100000 lux
Minimum Print Contrast:
15%
Minimum Element Resolution (DataMatrix):
10 mil
Image Sensor Resolution:
1280 x 800
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Network & Communication
Radio Frequency:
Yes
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Keyboard Wedge
  • Multi-interface
Power Description
Power Supply Included:
Yes
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
3350 mAh
Maximum Battery Recharge Time:
3.20 Hour
Environmental Conditions
Operating Temperature:
-4°F (-20°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Color Family:
Dual Color
Product Color:
  • Black
  • Yellow
Durability:
  • Water Resistant
  • Dust Resistant
Height:
7.8"
Width:
3.1"
Length:
5.5"
Weight (Approximate):
14.99 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP65
  • IP67
Application/Usage:
  • Industrial
  • Warehouse
  • Logistics
  • Manufacturing
  • Inventory
  • Picking
  • Component Tracking
  • Sorting
  • Packing
