Datalogic QuickScan QD2131 Barcode Scanner Model Overview
The PD3000 Series Customer Displays offer outstanding performance with a clear, bright optical display that ensures visibility in any environment. With a digit height of 0.20 inches and a resolution of 20 digits in two rows, this display efficiently communicates essential information to customers. Designed for versatility, it supports both serial and parallel interfaces, making it suitable for a wide range of applications. The robust construction ensures durability even in demanding settings, while the easy-to-use command sets enhance its adaptability.
Key Features:
20 Digits per Row across 2 rows for effective customer communication
High Brightness display (200 fl) for superb visibility
Versatile Connectivity options with both Serial and Parallel interfaces
Long Life Span with MTBF rated at 300,000 hours
Adaptable Command Set for emulating other pole displays
Specifications:
Optical:
Digit Height: 0.20 in. (5.0mm)
Digit Width: 0.14 in. (3.5mm)
Brightness: 200 fl (690 cd/m2) max.
Display Color: Green
Mechanical:
Weight: 2.7 lbs.
Dimensions: 7.87 x 3.37 x 1.75 inches
Base Plate: 2.12 x 2.00 x 2.25 inches
Overall Height: 8.00 inches
Environmental:
Operating Temperature: 0 to +50°C
Storage Temperature: -20 to +70°C
Relative Humidity: 85% max. non-condensing
Electrical:
Input Power: 120VAC, 60Hz. or 220VAC, 60Hz. (optional)
Output Power: 6.0VAC, 1000ma.

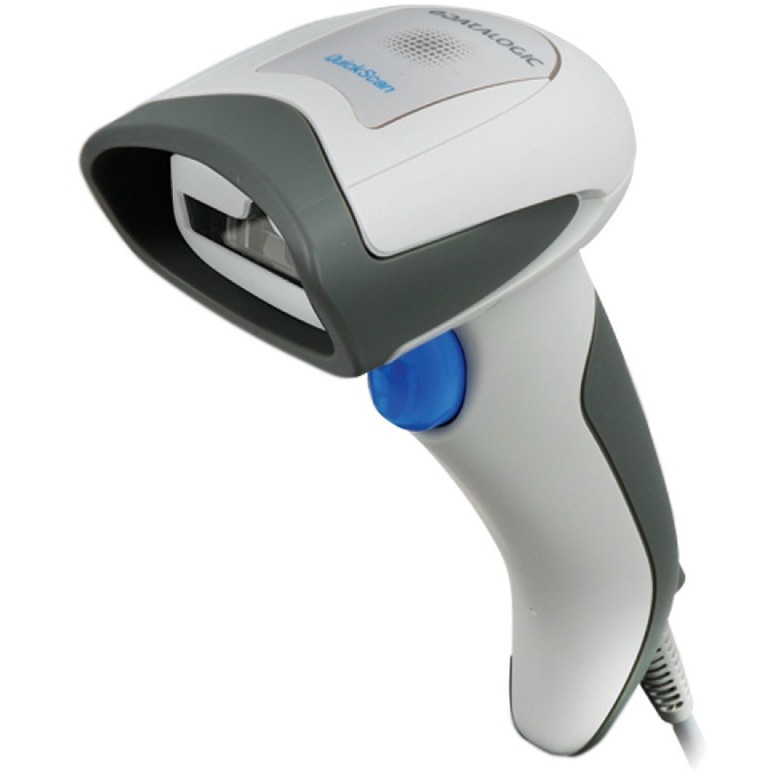

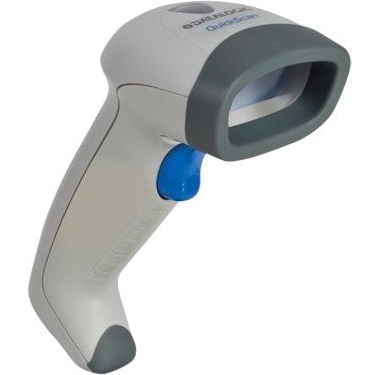

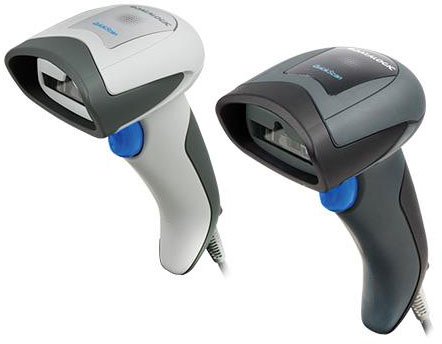

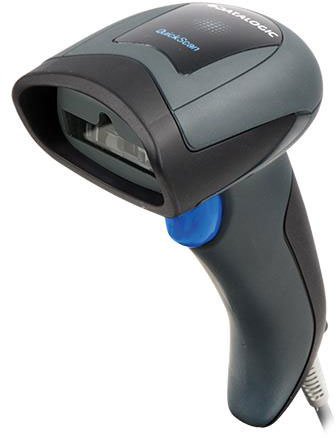

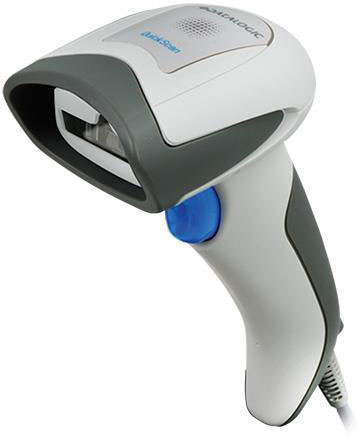

Datalogic QD2131-WHK3S Barcode Scanner Overview
The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan I QD2100 linear imaging reader is an entry level product that is perfect for use in retail and office environments plus activities associated with couriers and postal services.
The QD2100 is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance especially on hard to read bar codes and is capable of reading a wide range of symbologies including the majority of 1D codes plus GS1 DataBar™ linear codes. The QD2100 reader features Datalogic's exclusive patented 'Green Spot' for good read feedback directly on the code. When in Stand Mode, the Green Spot remains on to show the operator where to position the code for quick and intuitive reading.
Like the QuickScan L reader, the QD2100 has been designed with durability in mind. One of the most vulnerable features of any scanner is damage to the scan window. When such incidents happen, the scanner may have to be replaced. The QD2100 was specifically designed so that a replacement window pack can be ordered to replace damaged or scratched windows without having to send the scanner away for repairs. This helps to reduce the total cost of ownership during the life of the scanner and helps to ensure that it is always available for use.
Cable, Datalogic Gryphon 4500,RS-232, 9 Pin Female, Straight, CAB-350 (Power Supply available on pin 9 of the connector or through external power supply), 6 ft.
The Datalogic QD2131-WHK3S Barcode Scanner is also known as
DTL-QD2131WHK3S
or QD2131WHK3S.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
