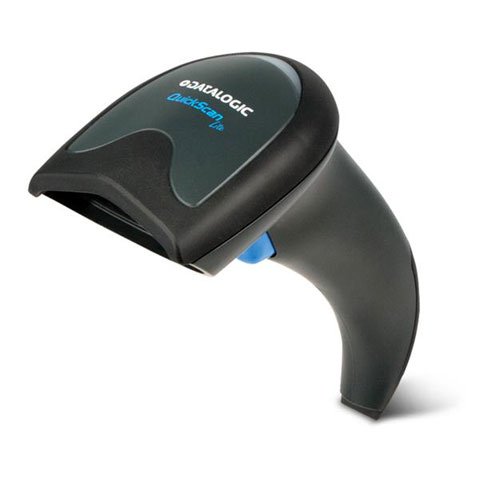

Datalogic QuickScan I Lite QW2100 – Barcode Scanner – 1D

Discover the QuickScan™ Lite QW2100, a versatile linear imager designed to efficiently read both long and truncated barcodes. Ideal for retail, light manufacturing, document processing, and banking environments, its compact and ergonomic design ensures comfort during prolonged usage. Equipped with a wide scanning angle and a high-performance scanning line, the QW2100 effortlessly scans various 1D barcodes, including utility bills and electronic parts. With options for USB or Keyboard Wedge interface and a variety of packaging options, it caters to your operational needs.

Key Features:

• Wide scan angle for efficient barcode capturing
• Thinner and brighter scan line for improved accuracy
• Datalogic's patented 'Green Spot' technology for good-read feedback
• Two interface options: USB or Keyboard Wedge / RS-232
• Drop resistant up to 1.5 m / 5.0 ft
• Compact, collapsible, and adjustable stand

Specifications:

• Decoding Capability: 1D/Linear Codes, Postal Codes, Stacked Codes
• Electrical:
  • Operating Current: < 180 mA @ 5 VDC
  • Input Voltage: 5 VDC +/- 0.5 V
• Environmental:
  • Drop Resistance: Withstands drops from 1.5 m / 5.0 ft
  • Humidity: 5-95% Non-Condensing
  • Sealing Rating: IP42
• Physical Characteristics:
  • Dimensions: 17.0 x 6.5 x 7.0 cm / 6.7 x 2.5 x 2.7 in
  • Weight: 119.0 g / 4.2 oz
• Reading Performance:
  • Maximum Read Rate: 400 reads/sec
  • Maximum Resolution: 0.102 mm / 4 mils (1D Codes)
• Warranty: 3-Year Factory Warranty

The QuickScan&trade; reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan Lite QW2100 linear imager is an entry level product created specifically for reading long and truncated bar codes which is common in some areas of the world. It is perfect for use in retail, light manufacturing, document/bill processing and banking/finance environments.

The QW2100 imager is small, lightweight and its ergonomic design is comfortable to use during daily operations. It offers snappy reading performance on most 1D bar codes and features a wide scanning angle with an extended scanning line which is perfect for capturing longer and wider bar codes typically found on utility bills and used by manufacturers of electronic parts. Additionally, the scanning line is thinner and brighter, allowing users to scan at wide angles without having to increase the scanning distance.

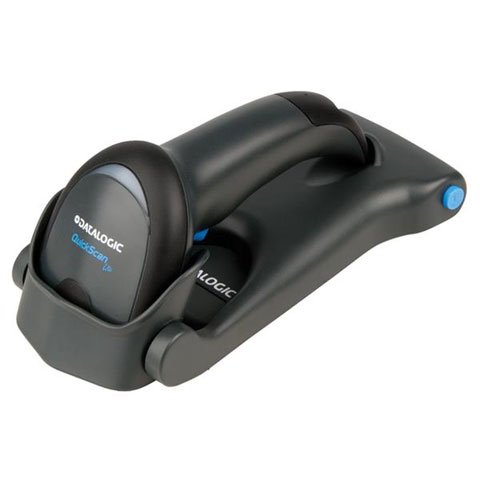

A specially designed stand has been created for the QW2100 imager which is light in weight, collapsible to use as a holder instead of a stand, and also has a 'tiltable head' for various angle settings.

The QW2100 imager is available with two interface options: USB or Keyboard Wedge / RS-232 and includes various packaging options so that it can be ordered as a scanner only or as a kit equipped with a scanner, cable and stand to facilitate hands-free reading options. The Datalogic Aladdin&trade; configuration software provides user-friendly features that simplify the start-up procedure, even for inexperienced users.
