Datalogic QuickScan QW2520 – Barcode Scanner – 1D, 2D – Scanner with Cable and Stand

Part Number: QW2520-BKK11S
3-year Premium Plus ($54.70)
No, stay at premium support package
$109.50

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D, 2D
Scanner Type
Imager

Product Description:

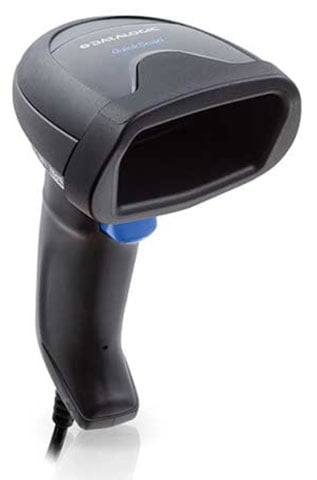

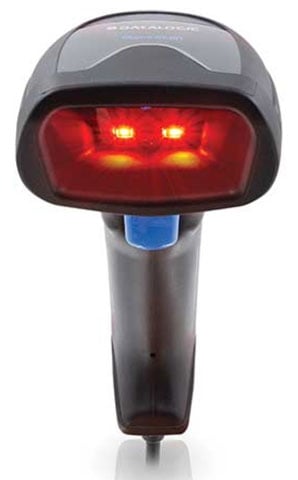

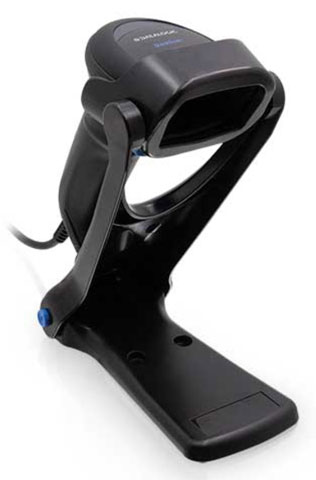

  Corded Barcode Scanner, Datalogic QuickScan QW2520, 2D VGA Imager, General Purpose, Handheld, USB Interface, Black. Kit inc. QW2520-BK Scanner, USB Coiled Cable 90A052285, and Stand STD-QW25-BK)

DataLogic QuickScan QW2500 Barcode Scanner Model Overview

The QuickScan™ 2500 Series from Datalogic offers superior scanning performance and affordability, making it ideal for various retail and service environments. This 2D imager excels in reading conventional barcodes and mobile displays, ensuring prompt and accurate scans, even on damaged or low-contrast codes. Equipped with advanced technologies, such as Datalogic's 'Green Spot' for feedback and Motionix™ for seamless mode transitions, the QuickScan 2500 series enhances efficiency at the point of sale.


Key Features:

  • High-performance 2D scanning for quick transactions
  • Motion-sensing technology for seamless reading mode transitions
  • Resilient design with drop resistance and IP52 sealing
  • Omnidirectional reading of 1D and 2D barcodes
  • Available in black or white, with various mounting options

Specifications:

  • Decoding Capability:
    • 1D/Linear Codes
    • 2D Codes: QR Code, Data Matrix, Aztec, etc.
    • Postal Codes and Digital Watermarking
  • Electrical:
    • Operating Current: <400 mA @ 5V
    • Input Voltage: 5 VDC
  • Dimensions:
    • Size: 14.8 x 6.8 x 12.6 cm
    • Weight: 145 g
  • Temperature:
    • Operation: 0 to 50 °C
    • Storage: -40 to 70 °C
  • Warranty: 5-Year Factory Warranty
Datalogic QW2520-BKK11S Barcode Scanner Overview

Reliable, repeatable performance that you need

The new QuickScan 2500 imager from Datalogic is an entry level 2D corded handheld scanner that punches well above its weight when it comes to performance. It is the robust and reliable companion in the retail sector for your POS checkout, built for many years of continued service. It effortlessly reads a full range of barcodes, be they damaged, hard to read, or poorly printed. In addition, with today's Covid safeguards in place, the QuickScan 2500 imager is optimized to seamlessly read through plexiglass barriers. All of these must-have benefits are available at an incredibly affordable price, making the QuickScan QuickScan 2500 imager the latest and most desirable addition to the Datalogic family of renowned handheld barcode scanners.

Improve performance with user friendly feedback

When using the QuickScan 2500 imager, you want a low-cost device with top guaranteed scanning performance and a reliable read every time, period. You want an easy to aim device that gives clear audible, tactile and visual feedback on each read, good or bad. You want a device that sits comfortably in your hand and never gives you fatigue, no matter how long your working shift. The QuickScan 2500 imager does not fail, even when continually used for long periods of time and provides plenty of freedom of movement with high quality cables that are robust enough to withstand constant abuse. Any type of barcode - 1D, 2D, postal codes, stacked or composite barcodes, dotcodes, and digital watermark codes - the QuickScan 2500 imager has you covered.

Connect, configure, use

As well as being the very affordable and easy to use handheld scanning solution for your business, the QuickScan 2500 imager is extremely easy to setup. It will give you the best fit for your store environment. The simple and seamless configuration of the scanner with connectivity to all manner of hosts, makes this the only solution you will need for your business. It is well built and will comfortably survive 5 ft drops and over 10 million trigger presses. The adjustable brightness of the light source makes it comfortable to suit most people's eyes. With Motionix technology, the imager is ready for action as soon as it is picked up. All in all, you have at your fingertips the perfect device for scanning all your goods.

Perform, perform, perform

The QuickScan 2500 imager boasts a very rich feature set for out-of-the-box capabilities. The 1 MP optics provide best-in-class scanning and depth of field for all your applications. No need to worry about scanning orientation as it is omnidirectional. It will seamlessly read codes displayed on smartphone screens, making promotions and coupons easy to manage. The imager is equipped with an easy to see aiming system that consists of two blue triangles, providing full guidance with extreme precision. This makes it easy for the staff to target the right code to read, and the patented Green Spot technology from Datalogic is clearly projected as a visual indicator upon each successful read.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
1D / Linear Codes:
  • Auto discriminates all standard 1D codes including GS1 DataBar&trade; linear codes.
2D Codes:
  • Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot code
Image Sensor Type:
Imager
Scan Pattern:
Linear
Scanning Distance:
15.70"
Cable Type Included:
USB
Stand Included:
Yes
Reading Angle (Skew):
65°
Reading Angle (Pitch):
-65°
Reading Angle (Roll):
360°
Motion Tolerance:
30 in/s
Image Formats:
  • BMP
  • JPEG
  • TIFF
Maximum Ambient Light:
110000 lux
Drop Specification:
Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface.
Minimum Print Contrast:
15%
Maximum Element Resolution (Code 39):
10 mil
Maximum Element Resolution (DataMatrix):
10 mil
Maximum Element Resolution (PDF417):
5 mil
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Handheld
Color Family:
Black
Product Color:
Black
Weight (Approximate):
5.11 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Industrial
  • Retail
  • Hospitality
  • Government
  • Healthcare
  • Light/Clean Manufacturing
Item Numbers
UNSPSC: 43211701
