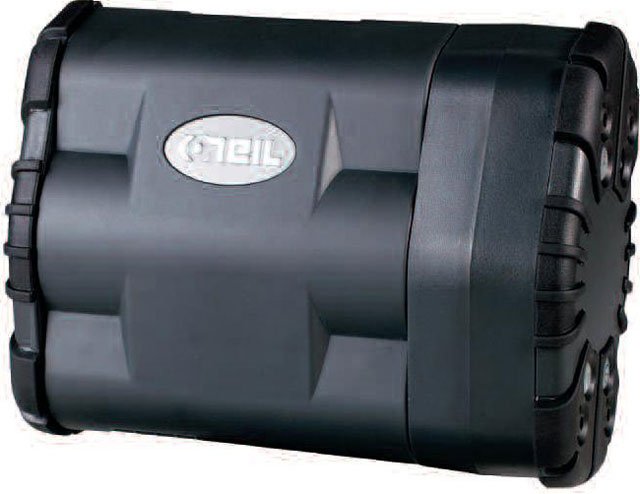

Datamax-O'Neil 200336-100 Portable Barcode Printer

Part Number: 200336-100
Model: OC3
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
Serial (RS-232), Wi-Fi
Print Resolution
203 dpi

Product Description:

  Direct Thermal Portable Printer, 802.11b-g
Explore all Datamax-O'Neil OC3 Portable Barcode Printers
Add to Quote
Datamax-O'Neil 200336-100 Portable Barcode Printer
Datamax-O'Neil 200336-100 Portable Barcode Printer
Datamax-O'Neil 200336-100 Portable Barcode Printer Datamax-O'Neil 200336-100 Portable Barcode Printer
Full specifications (PDF)

Datamax-O'Neil OC3 Portable Barcode Printer Model Overview

Datamax-O'Neil's OC3 Portable Receipt Printer is the world's most streamlined, light weight, and ergonomic portable label and receipt printers. Designed especially for those labeling and transaction applications where ergonomic considerations, ultimate portability, and smart looks are paramount, the OC3 is ideal for a wide variety of mission-critical applications. The OC3 measures at 0.08 mm (3 in) in width.
Datamax-O'Neil 200336-100 Portable Barcode Printer Overview

The OC3 is a light weight and ergonomic portable printer designed to meet the continually expanding requirements associated with retail, hospitality, transportation, and field sales and services applications.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
3 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
2.84"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • MSI PLESSEY
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • Aztec Code
  • PDF-417
  • QR Code
Features:
Belt Clip
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
2 MB
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Wireless LAN:
Yes
Media Types & Handling
Media Type:
  • Receipt
  • Synthetic Media
  • UV Coated Media
  • Label
Media Size:
  • Custom Size - 3.25" - Roll Paper
  • 3.25" x Roll Paper
Maximum Roll Diameter:
2.25"
Maximum Label Width:
3"
Label Core Size:
1"
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Capacity:
2200 mAh
Physical Characteristics
Form Factor:
Portable
Height:
2.8"
Width:
6.5"
Depth:
4.9"
Miscellaneous
Package Contents:
  • OC3 Label Printer
  • Battery
  • Roll of Media
  • Swivel Belt Clip
Additional Information:
  • External DC jack, 12-15V, built-in spike and surge protection
  • External charge contacts, 12 -15V, built-in spike and surge protection
  • Prints approx. 2,544 - 2" x 1.125" labels on a single battery charge (22.1 hours)
Platform Supported:
PC
Certifications & Standards:
  • FCC B
  • CE
  • UL/cUL
  • RoHS
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 43212108
