Datamax-O'Neil 200417-100 Portable Barcode Printer

Part Number: 200417-100
Model: PrintPad
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Mobile
Interface Options
DEX, Serial (RS-232)
Print Resolution
203 dpi
Max Print Width
4.5 inch

Product Description:

  PrintPAD Thermal Receipt Printer (MC7004/7090/7094/7095 DEX)
Explore all Honeywell Print Pad Portable Barcode Printers
Add to Quote
Datamax-O'Neil 200417-100 Portable Barcode Printer
Datamax-O'Neil 200417-100 Portable Barcode Printer
Datamax-O'Neil 200417-100 Portable Barcode Printer Datamax-O'Neil 200417-100 Portable Barcode Printer
Full specifications (PDF)

Honeywell Print Pad Portable Barcode Printer Model Overview

Integrated Printing Systems combine O'Neil's PrintPad with the industry's leading mobile computers to provide the ultimate integration and portability for users in route accounting, direct store delivery (DSD), and other field. This innovative onepiece printer system combines an enhanced 4" wide thermal printer, the 4te, with an embedded communications charging cradle designed for use in a number of different applications with the Motorola MC70 handheld computer.
Datamax-O'Neil 200417-100 Portable Barcode Printer Overview

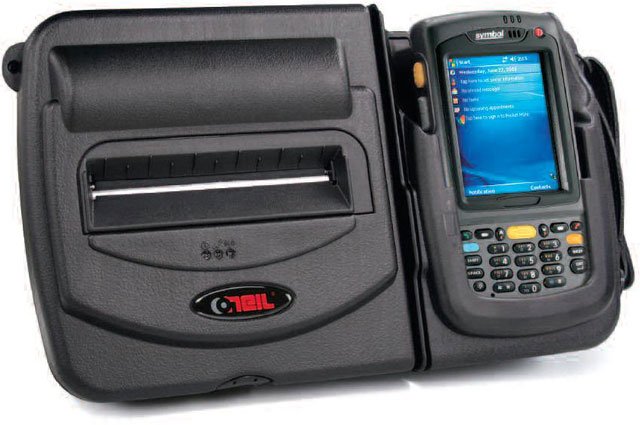

The PrintPAD portable printer offers innovative mobile printing for rugged environments to enable the production of hard copy back ups of digital information and signature printing, as well as the generation of receipts, tickets, labels, and barcodes for a variety of applications. This integrated system combines an O'Neil thermal printer in a rugged case and an embedded communications charging cradle designed for use in a number of different applications with variety of Motorola and Hand Held Products mobile computers. Come along with DEX connection port and cable.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
203
Number of Columns:
80
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • MSI
  • Plessey
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • Aztec Code
  • PDF-417
  • QR Code
Print Technology:
Direct Thermal
Memory
Standard Memory:
2 MB
Flash Memory:
4 MB
Media Types & Handling
Media Type:
  • Direct Thermal Paper
  • Receipt
  • Synthetic Media
  • UV Coated Media
  • Label
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.41"
Label Core Size:
0.40"
Battery Information
Number of Batteries Supported:
2
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Capacity:
2200 mAh
Physical Characteristics
Form Factor:
Portable
Miscellaneous
Package Contents:
  • PrintPAD MC70 Thermal Receipt Printer
  • 2 x Batteries
  • 1 x Hand Strap
  • 1 x Roll of Paper
Platform Supported:
PC
Warranty
Limited Warranty:
2 Year
Item Numbers
GTIN: 0783555109595, 4058829188061
UPC: 783555109595
EAN: 0783555109595, 4058829188061
UNSPSC: 45101512

Recommended Accessories

Category

  • Carrying and Protective Accessories (2)

Recommended Accessories for Model: Datamax-O'Neil 200417-100 Portable Barcode Printer

Top Carrying and Protective Accessories Purchased With Datamax-O'Neil 200417-100

Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Datamax-O'Neil 200417-100 Portable Barcode Printer is also known as ONE-200417100 or 200417100.
