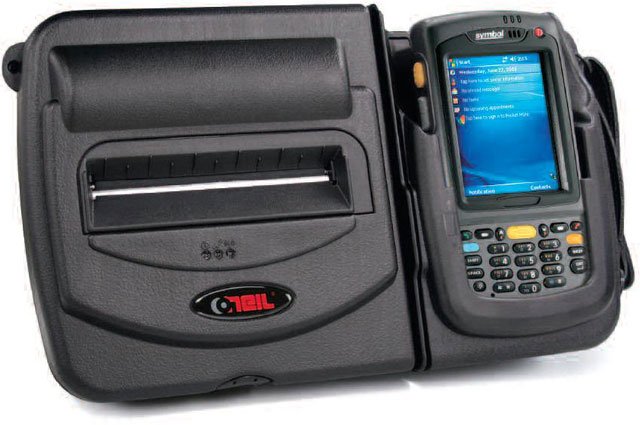

Datamax-O'Neil 200423-100 Portable Barcode Printer

Part Number: 200423-100
Model: PrintPad
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Mobile
Printing Technology
Direct Thermal
Interface Options
DEX, Serial (RS-232)
Print Resolution
203 dpi

Product Description:

  PrintPAD Thermal Receipt Printer (MC70 DEX ECHARGE)
Explore all Honeywell Print Pad Portable Barcode Printers
Add to Quote
Datamax-O'Neil 200423-100 Portable Barcode Printer
Datamax-O'Neil 200423-100 Portable Barcode Printer
Datamax-O'Neil 200423-100 Portable Barcode Printer Datamax-O'Neil 200423-100 Portable Barcode Printer
Full specifications (PDF)

Honeywell Print Pad Portable Barcode Printer Model Overview

Integrated Printing Systems combine O'Neil's PrintPad with the industry's leading mobile computers to provide the ultimate integration and portability for users in route accounting, direct store delivery (DSD), and other field. This innovative onepiece printer system combines an enhanced 4" wide thermal printer, the 4te, with an embedded communications charging cradle designed for use in a number of different applications with the Motorola MC70 handheld computer.
Datamax-O'Neil 200423-100 Portable Barcode Printer Overview

Integrated Solution: Carry, Charge, Communicate

The PrintPAD integrated printing systems offer mobile workers the convenience of a portable thermal printer and mobile computer united in a compact and ergonomic, rugged and reliable unit. It's designed for use with a variety of Motorola®, Intermec, and Honeywell™ mobile computers.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-8
  • EAN-13
  • Interleaved 2 of 5
  • MSI PLESSEY
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • PDF-417
  • Aztec Code
  • QR Code
  • GS1 DataMatrix
Features:
  • E-Charge
  • Dex Port
  • Drop Resistant
  • Hand Strap
  • Magnetic Card Reader
Print Technology:
Direct Thermal
Memory
Standard Memory:
2 MB
Flash Memory:
4 MB
Network & Communication
Bluetooth:
Yes
Media Types & Handling
Media Type:
  • Receipt
  • Ticket
  • Label
  • Synthetic Media
  • UV Coated Media
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.41"
Label Core Size:
0.40"
Fonts & Emulation
Language Emulation:
CPL
Power Description
Power Source:
  • AC Supply
  • Battery
Battery Information
Number of Batteries Supported:
2
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Portable
Color Family:
Black
Product Color:
Black
Height:
7.5"
Width:
11.8"
Depth:
2.4"
Miscellaneous
Platform Supported:
PC
Item Numbers
GTIN: 4058829188092
EAN: 4058829188092
UNSPSC: 45101512

Recommended Accessories

Category

  • Carrying and Protective Accessories (2)

Recommended Accessories for Model: Datamax-O'Neil 200423-100 Portable Barcode Printer

Top Carrying and Protective Accessories Purchased With Datamax-O'Neil 200423-100

Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Datamax-O'Neil 200423-100 Portable Barcode Printer is also known as ONE-200423100 or 200423100.
