Datamax-O'Neil 200511-100 Portable Barcode Printer

Part Number: 200511-100
Model: PrintPad
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Printer Type
Mobile

Product Description:

  PRINTPAD DOLPHIN 99EX BLUETOOTH ECHARGE *FCC*
Explore all Honeywell Print Pad Portable Barcode Printers
Add to Quote

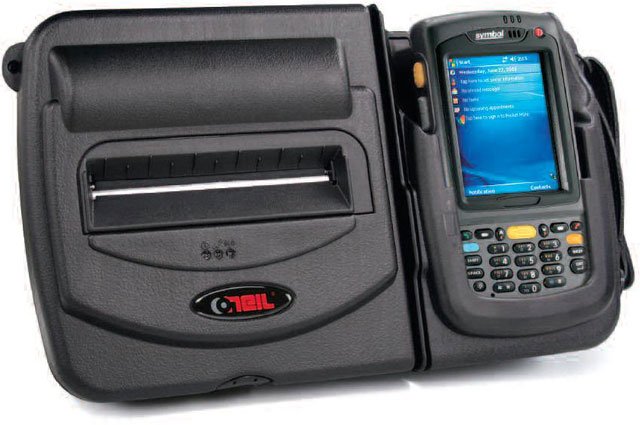

Datamax-O'Neil 200511-100 Portable Barcode Printer
Datamax-O'Neil 200511-100 Portable Barcode Printer
Full specifications (PDF)

Honeywell Print Pad Portable Barcode Printer Model Overview

Integrated Printing Systems combine O'Neil's PrintPad with the industry's leading mobile computers to provide the ultimate integration and portability for users in route accounting, direct store delivery (DSD), and other field. This innovative onepiece printer system combines an enhanced 4" wide thermal printer, the 4te, with an embedded communications charging cradle designed for use in a number of different applications with the Motorola MC70 handheld computer.
Datamax-O'Neil 200511-100 Portable Barcode Printer Overview

Integrated Solution: Carry, Charge, Communicate

The PrintPAD integrated printing systems offer mobile workers the convenience of a portable thermal printer and mobile computer united in a compact and ergonomic, rugged and reliable unit. It's designed for use with a variety of Motorola®, Intermec, and Honeywell™ mobile computers.

Full specifications (PDF)
Technical Information
Recommended Use:
Receipt Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
2 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 93
  • Code 128
  • EAN-13
  • EAN-8
  • Interleaved 2 of 5
  • MSI PLESSEY
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • PDF-417
  • Aztec Code
  • QR Code
  • GS1 DataBar
  • Data Matrix
Features:
E-Charge
Print Technology:
Direct Thermal
Memory
Standard Memory:
2 MB
Flash Memory:
4 MB
Interfaces/Ports
Serial Port:
Yes
Network & Communication
Bluetooth:
Yes
Media Types & Handling
Media Type:
  • Direct Thermal Paper
  • Synthetic Media
  • UV Coated Media
  • Label
Maximum Roll Diameter:
2.25"
Maximum Label Width:
4.41"
Label Core Size:
0.40"
Fonts & Emulation
Language Emulation:
  • OPOS
  • JPOS
Power Description
Power Source:
Battery
Input Voltage:
7.2 V DC
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Battery Rechargeable:
Yes
Physical Characteristics
Form Factor:
Portable
Height:
7.5"
Width:
11.8"
Depth:
2.4"
Weight (Approximate):
4.12 lb
Miscellaneous
Package Contents:
  • 2 x Batteries
  • 1 x Hand Strap
  • 1 x Paper Roll
Platform Supported:
PC
Warranty
Limited Warranty:
2 Year
Item Numbers
UNSPSC: 45101512

Recommended Accessories

Category

  • Carrying and Protective Accessories (2)

Recommended Accessories for Model: Datamax-O'Neil 200511-100 Portable Barcode Printer

Top Carrying and Protective Accessories Purchased With Datamax-O'Neil 200511-100

Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Datamax-O'Neil 200511-100 Portable Barcode Printer is also known as ONE-200511100 or 200511100.
