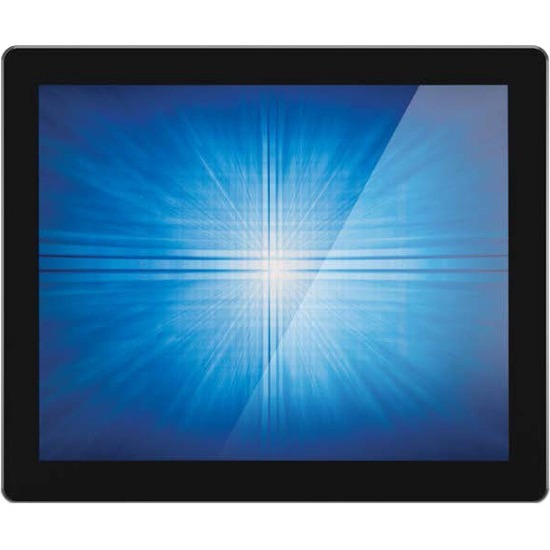

The Elo 1991L 19-inch Open-Frame Touch Display combines cutting-edge technology with user-friendly design, making it ideal for various applications from kiosks to industrial automation. Its energy-saving LED backlight not only reduces electricity consumption but also minimizes heat generation, ensuring longer life and reliable performance. With a wide viewing angle and a sealed touchscreen, the 1991L delivers vibrant visuals and accurate touch responsiveness, making it a perfect choice for interactive installations in retail and amusement environments. Key features:
Choice of Elo touch technology: Options include IntelliTouch SAW, SecureTouch anti-vandal SAW, AccuTouch five-wire resistive, and Projected Capacitive.
Viewing angle: 178° (h) x 178° (v) for brilliant color reproduction.
Sealed touchscreen: Protects against dirt, dust, and liquids.
Multi-touch capability: PCAP 2GS support for a seamless experience with up to 10 touch points.
Connectivity: Includes DisplayPort and VGA interfaces.
Specifications:
Model: 1991L
Color: Black
Active Display Area: 376.3 x 301 mm / 14.8 x 11.85 inches
Diagonal: 19"
Native Resolution: 1280 x 1024 at 60Hz
Brightness: Up to 250 nits
Response Time: 14ms
Contrast Ratio: 1000:1
Power Consumption: 16W (ON), 1.5W (SLEEP), 0.5W (OFF)
Operating Temperature: 0 °C to 40 °C
Warranty: 3 years
Weight: Unpackaged: 10.14 lb (4.6 Kg)
Agency Approvals: UL, FCC, CE, and more

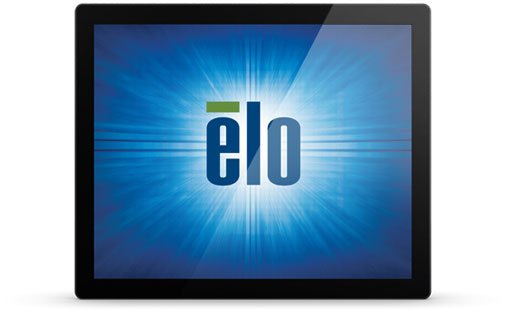

Elo E179065 Touchscreen Overview
The Elo 1991L 19" open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the art energy-saving LED backlight, using less electricity to operate and generating less heat. Featuring a brilliant wide viewing angle panel, the 1991L instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial floor automation.
This compact touch display is "designed for touch" with proven Elo expertise and reliability built in. The 1991L provides stable "drift-free" operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Long-lasting product availability can be expected as the design and tooling is controlled by Elo specifications.
The 1991L is available with a choice of industry-leading touch technologies, in both single touch and multi touch versions. This seamless zero-bezel 19'' multi-touch display is available with our latest projected capacitive (PCAP) 2GS (two glass solution) technology that delivers both a ten touch "tablet like" interactive experience along with thru-glass functionality - both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
At Elo, we design, build and are responsible for the complete solution with touch integrated from the start. We use our own touchscreens combined with our software and drivers, everything is designed to work together and tested as part of our life testing processes.
Worldwide agency approvals cover the whole display, which is developed, built, serviced and supported by a true single source supplier. The 1991L open-frame LCD touch display provides an economical solution for system integrators and VARs.
The Elo E179065 Touchscreen is also known as
ELO-E179065
or E179065.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
