The Elo 1593L 15.6-inch open-frame LCD touchscreen combines a sleek design with advanced technology to deliver reliable and engaging user experiences. This commercial-grade display is perfect for various applications, including kiosks, retail self-service, and industrial automation. Featuring energy-saving LED backlighting, the 1593L offers exceptional clarity and responsiveness, ensuring accurate touch interactions and vivid visuals while consuming less power and generating minimal heat. Key features:
15.6-inch Open-Frame Touchscreen: Ideal for kiosks and self-service environments.
Energy-Efficient LED Backlight: Low power consumption and reduced heat output.
Flexible Touch Technologies: Available in IntelliTouch® SAW and TouchPro™ PCAP options.
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Mounting Options: 75mm VESA mount, Front & Rear mount options available
Warranty: 3 years
Agency Approvals: UL, FCC, CE, RoHS compliant

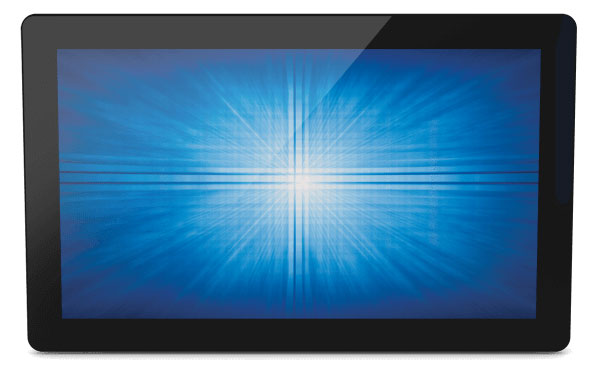

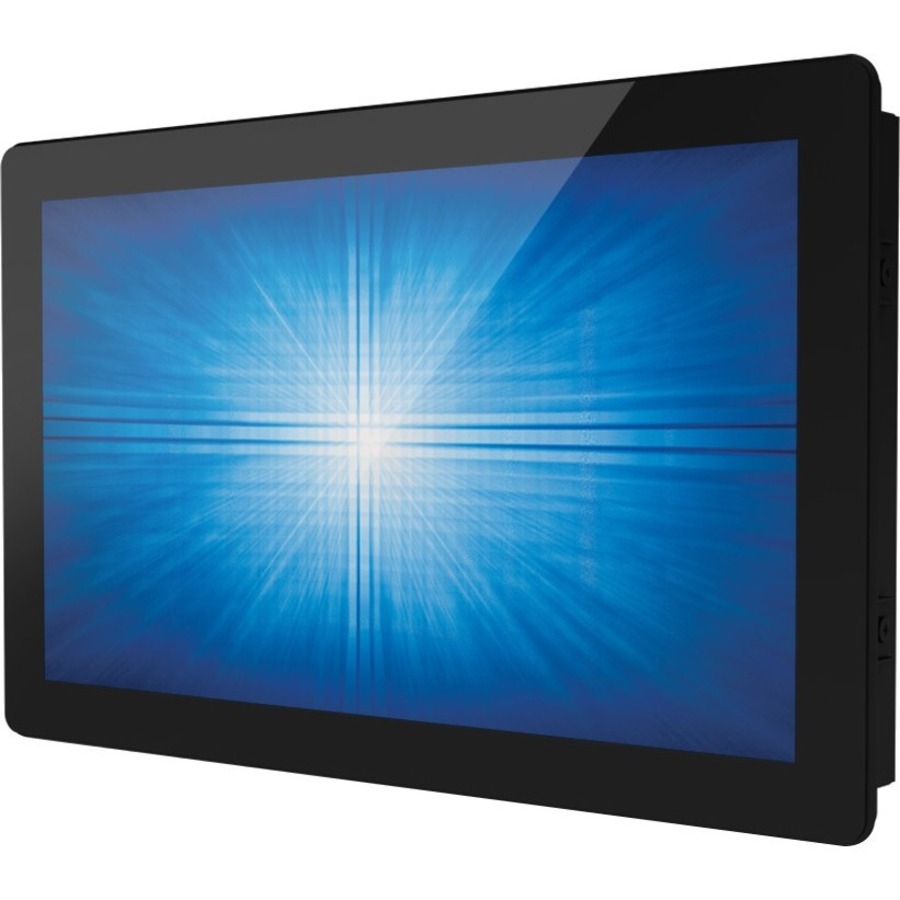

Elo E329636 Touchscreen Overview
The Elo 1593L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch with proven Elo expertise and reliability built in. The 1593L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15.6-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW) touchscreen technology, and our latest zero-bezel TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
The Elo E329636 Touchscreen is also known as
ELO-E329636
or E329636.
