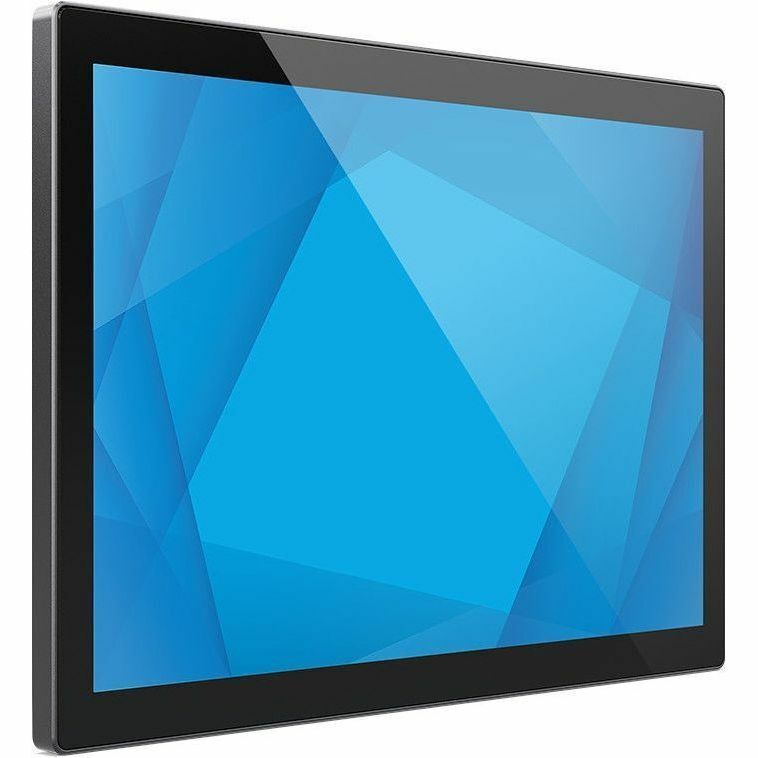

Elo E967935 Touchscreen

Part Number: E967935
Model: 1004LS 10"
Add to My Shopping List Add to Compare
$426.06
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
10"
Viewable Screen Size
10.1"
Screen Mode
HD
Panel Technology
Thin Film Transistor (TFT)

Product Description:

  Touchscreen Monitors, Elo 1004LS 10", 10.1-inch Wide LCD Monitor, HD 1280 x 800, Projected Capacitive 10-touch, USB Controller, Anti-glare, Zero-Bezel, No Stand, USB-C Input, Gray, Worldwide
Explore all Elo 1004LS 10" Touchscreens
Add to Quote
Elo E967935 Touchscreen
Elo E967935 Touchscreen
Elo E967935 Touchscreen
Elo E967935 Touchscreen
Elo E967935 Touchscreen
Elo E967935 Touchscreen
Elo E967935 Touchscreen Elo E967935 Touchscreen Elo E967935 Touchscreen Elo E967935 Touchscreen Elo E967935 Touchscreen Elo E967935 Touchscreen
Full specifications (PDF)

Elo 1004LS 10" Touchscreen Model Overview

The Elo 1004LS 10-inch LCD Touchscreen Monitor is designed for commercial excellence, delivering vibrant Full HD visuals in a sleek, ultra-thin profile. Ideal for various applications such as POS systems, interactive signage, and self-service kiosks, this monitor features optical bonding technology that enhances durability and clarity. Equipped with Energy-efficient TouchPro® PCAP technology, it supports up to 10 simultaneous touches, making it perfect for high-traffic environments. With a clean aesthetic and built-in speakers, the 1004LS offers flexible installation options and minimizes eye strain, ensuring maximum comfort during use.


Key Features
  • 10-inch Full HD display for crystal-clear visuals
  • Ultra-thin design with edge-to-edge glass for modern aesthetics
  • Durable IK07 rating and scratch-resistant glass
  • 10 touch points supported for multi-user interaction
  • USB-C connectivity for easy power and data transfer
  • Reduced eye strain with low blue light technology
  • Three-year warranty for peace of mind

Specifications
  • Color: Dark gray
  • Diagonal Size: 10.1" (256.54 mm)
  • Touch Technology: TouchPro® PCAP
  • Active Touch Area: 8.54" x 5.34" (216.96 mm x 135.60 mm)
  • Native Resolution: 1280 x 800
  • Brightness: 400 nits (panel), 360 nits (with TouchPro)
  • Viewing Angle: Horizontal 85°/Vertical 85°
  • Response Time: 30 msec
  • Weight: Unpackaged 1.32 lbs (0.6 kg)
  • Operating Temperature: 0° C to 40° C (32°F to 104°F)
  • Warranty: 3 years
  • Impact Protection: IK07
Elo E967935 Touchscreen Overview

Razor thin design. | Brilliant touchscreen.

Built to be one of the thinnest commercial-grade 10-inch touchscreen monitors, the 04LS-Series delivers a stunning design with thin borders, enhanced durability and state-of-the-art optical bonding - all with brilliant display clarity.

Secure your cables into place.

With a port cover that can be locked into place, cables are less prone to becoming disconnected, minimizing disruptions to the device.

A clean slate for touch experiences.

The perfect pairing for your POS terminal.

Whether you want to pair the 1004LS with a PC, a mobile device or an AiO with integrated payment, the 04LS slate monitors offers the perfect compact touch display with the sleekness you desire at the point of sale.

Get peace of mind with EloCare.SM

From advance unit replacement to extended warranties, EloCare delivers service and support from the people who know your Elo products best.


Full specifications (PDF)
Technical Information
Screen Size Class:
10"
Viewable Screen Size:
10.1"
Screen Mode:
HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
30 ms
Response Time Details:
30 ms Typical
Aspect Ratio:
16:10
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
170°
Mount Type:
  • Wall Mountable
  • Shelf Mount
  • Floor-mountable
  • Pole Mount
Placement:
Tabletop
Backlight Technology:
LED
Features:
  • Anti-glare
  • On-screen Display (OSD)
  • Low Blue Light
Horizontal Frequency:
30 kHz to 60 kHz
Vertical Frequency:
60 Hz
Impact Protection (IK) Rating:
IK07
Active Display Area (H x V):
8.50" x 5.30"
On Screen Display (OSD) Controls:
  • Color Temperature
  • Brightness
  • Contrast
  • Volume
  • Mute
  • Sharpness
Video
Maximum Resolution:
1280 x 800
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
800:1
Brightness:
400 Nit
Audio
Speakers:
Yes
Number of Speakers:
2
Touchscreen Information
Touchscreen Type:
Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
USB:
Yes
USB Type-C:
Yes
Environmental Conditions
Operating Temperature Range:
32°F (0°C) to 104°F (40°C)
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Color Family:
Gray
Product Color:
Dark Gray
Height:
6.4"
Width:
9.5"
Depth:
0.6"
Weight (Approximate):
1.32 lb
Miscellaneous
Application/Usage:
  • Commercial
  • Point of Sale (POS)
Item Numbers
GTIN: 0843173155531
UPC: 843173155531
EAN: 0843173155531

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (1)
  • Mounting Hardware and Stands (3)
  • Pos Workstation Accessories (2)
  • Touchscreen Accessories (8)

Recommended Accessories for Model: Elo E967935 Touchscreen

Top Cables, Connectors, and Adapters Purchased With Elo E967935

Top Mounting Hardware and Stands Purchased With Elo E967935

Top Pos Workstation Accessories Purchased With Elo E967935

Top Touchscreen Accessories Purchased With Elo E967935

See All Touchscreen Accessories for Elo E967935 Touchscreen >
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E967935 Touchscreen is also known as ELO-E967935 or E967935.
