Elo E992622 Touchscreen

Part Number: E992622
Model: 2202L
$511.70
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
22"
Viewable Screen Size
21.5"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)

Product Description:

  Touchscreens, ELO 2202L, 22" Wide LCD Desktop With Anti-Glare, Full HD, Projected Capacitive 10-Touch, USB Controller, Clear, Zero-Bezel, No Stand, VGA And HDMI Video Interface, Black, Worldwide

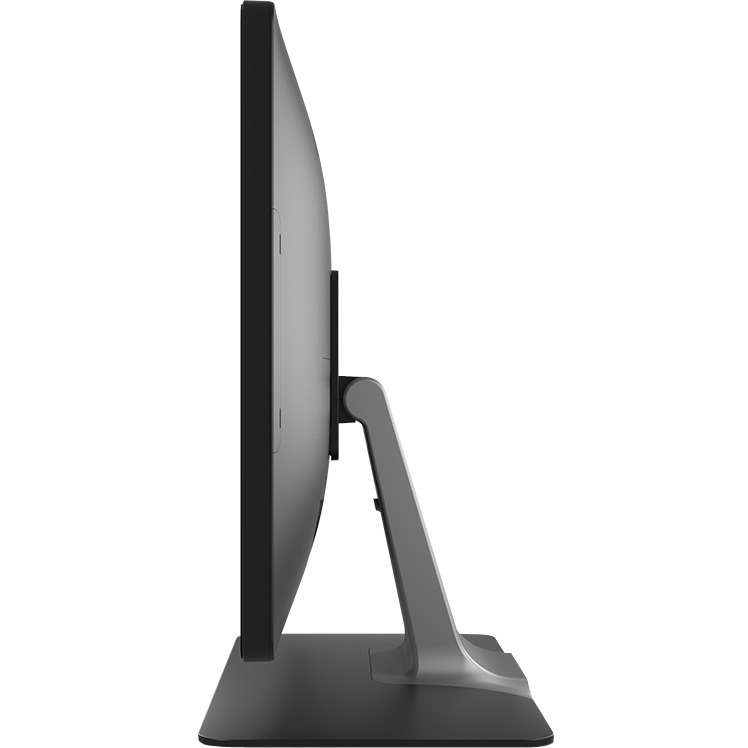

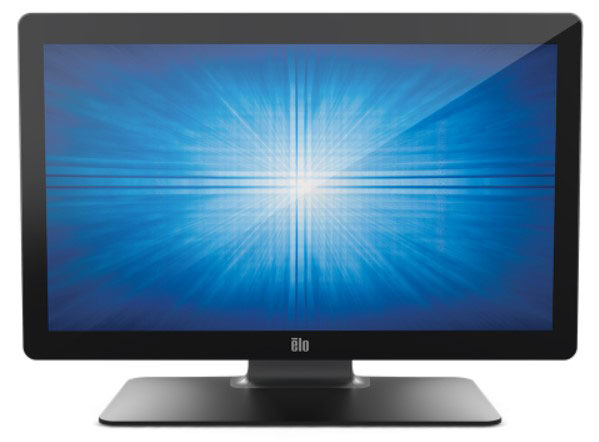

Elo 2202L Touchscreen Model Overview

The Elo 2202L 22" touchscreen monitor delivers a professional-grade interactive solution with Elo's industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. Backed by a three-year warranty, the feature rich touchscreen monitor is equipped with dual built-in speakers and VGA and HDMI video connectors. With a compact form factor, clean design aesthetic, and flexible mounting options, these touchscreens are well-suited for POS, interactive digital signage and self-service.
Elo E992622 Touchscreen Overview

2202L | Touchscreen Monitor

The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.

Brilliant Displays from 19 to 27-inches

The brilliant touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.

Well-Suited for...

Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.

Elo Edge Connect™ Lets You do More!

Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!

One for You. | One for Your Customers.

Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

Mount with Flexibility

Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.

Built-to-Last

The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.

Technical Information
Screen Size Class:
22"
Viewable Screen Size:
21.5"
Screen Mode:
Full HD
Panel Technology:
Thin Film Transistor (TFT)
Response Time:
14 ms
Response Time Details:
14 ms Typical
Aspect Ratio:
16:9
Horizontal Viewing Angle:
178°
Vertical Viewing Angle:
178°
Mount Type:
  • Wall Mountable
  • Pole Mount
  • Shelf Mount
Placement:
Tabletop
Backlight Technology:
LED
Features:
  • On-screen Display (OSD)
  • Cable Lock Slot
  • Anti-glare
  • Wide Viewing Angle
  • OSD/Power Lock
Horizontal Frequency:
30 kHz to 82 kHz
Vertical Frequency:
50 Hz to 75 Hz
Ingress Protection (IP) Rating:
IPX1
Impact Protection (IK) Rating:
IK06
Active Display Area (H x V):
18.70" x 10.50"
Video
Maximum Resolution:
1920 x 1080
Color Supported:
16.7 Million Colors
Native Contrast Ratio:
1,000:1
Brightness:
225 Nit
Audio
Speakers:
Yes
Number of Speakers:
2
Touchscreen Information
Touchscreen Type:
TouchPro Projected Capacitive
Multi-touch Screen:
Yes
Number of Simultaneous Touchpoints:
10
Interfaces/Ports
HDMI:
Yes
USB:
Yes
VGA:
Yes
Number of USB Ports:
4
Number of Micro USB Upstream Ports:
4
Built-in Devices
Built-in Devices:
USB Hub
Environmental Conditions
Operating Temperature Range:
32°F (0°C) to 104°F (40°C)
Operating Humidity Range:
20% to 80% (Non-condensing)
Power Description
Operating Power Consumption:
16.78 W
Frequency:
  • 50 Hz
  • 60 Hz
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color Family:
Black
Product Color:
Black
Height:
12.9"
Width:
20.7"
Depth:
1.7"
Height with Stand:
15.11"
Width with Stand:
20.74"
Depth with Stand:
7.61"
Weight (Approximate):
10.47 lb
Weight with Stand (Approximate):
14.88 lb
Miscellaneous
Package Contents:
  • 2202L 22" Touchscreen Monitor
  • Quick Install Guide
  • 3 x Tie wraps
  • VGA Cable
  • HDMI Cable
  • Touch USB Cable
  • Audio Cable
  • Power Brick
  • Power Cable
  • EEI Label
  • 4 Screws
Environmentally Friendly:
Yes
Environmental Compliance:
  • Restriction of Hazardous Substances (RoHS)
  • China Restriction of Hazardous Substances (China RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
  • Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0843173155982
UPC: 843173155982
EAN: 0843173155982
UNSPSC: 43211903
