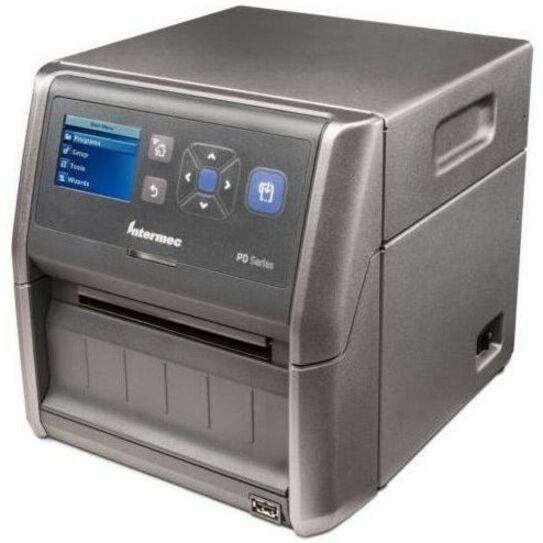

Honeywell PD43 – Barcode Label Printer

Part Number: PD43CA3100020002
Model: PD43

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Recommended Use
Label Print
Print Color Capability
Monochrome
Maximum Mono Print Speed
8 in/s
Maximum Print Resolution (dpi)
203

Product Description:

  Barcode Label Printer, Honeywell PD43, Wired LAN, Non LTS, Thermal Transfer, 203 dpi, EU Cord

Honeywell PD43 Barcode Label Printer Model Overview

Intermec's PD43 family of light industrial thermal printers incorporate the latest printing innovations into a compact and affordable package. Ideal for tight spaces, shallow countertops, and pull-out cabinets, the PD series was designed to deliver no-compromise printing performance in the smallest possible footprint. The PD43 takes industrial printing to a new level of simplicity, with a color graphic display that makes it easier to set up, configure and fine-tune settings without the need for a host computer. In fact, with Smart Printing capabilities, the PD43 can run apps right inside the printer—eliminating the need for a connected PC entirely.
Honeywell PD43CA3100020002 Barcode Label Printer Overview

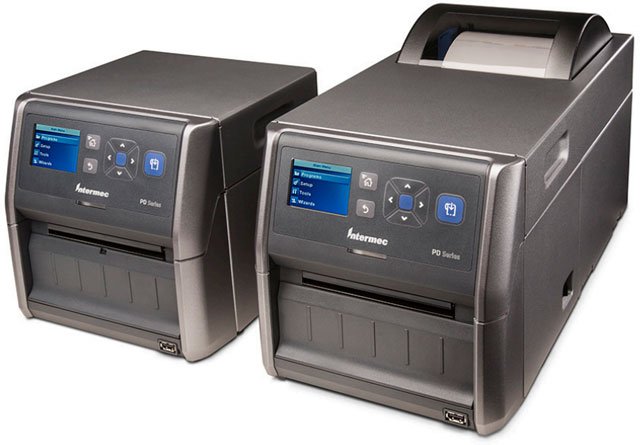

The PD43 and smaller PD43c series of light industrial thermal printers incorporate the latest printing innovations into a compact and affordable solution designed to deliver uncompromising print performance in the smallest possible footprint.

Suited for the distribution center and warehouse, as well as airline passenger service, the PD43 upholds the long tradition of the PD series. An all-metal chassis, strong cast aluminum print mechanism, and tool-free printhead and roller replacement help minimize downtime and maintenance needs. With a variety of door options, the PD43 can support a wide range of media, including link-in and link-out ribbons with half-inch or one-inch core sizes - enambling manixum time between media resupply. Fast-time- to-label and print speeds of up to 200 mm/s (8 ips) ensure that the PD43 can scale with the changing needs of dynamic operations.

The PD43 takes industrial printing to a new level of simplicity, with a color graphic display that makes it easier to set up, configure and fine-tune settings without the need for a host computer. In fact, with Smart Printing capabilities, the PD43 can run apps right inside the printer - eliminating the need for a connected PC entirely.

Considering the switch to PD43 series from another printer brand? With comprehensive command language support - including ZSim2, our fast, friendly, and complete ZPL II® emulation - updating to the PD series has never been easier.

Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.09"
Barcode Symbology Supported:
  • 1D
  • 2D
  • Composite Symbology
Application/Usage:
  • Desktop
  • Industrial
Features:
  • Compact
  • Rugged
Character Sets:
  • Unicode
  • WorldType Layout Engine (WTLE)
  • Universal Font Scaling Technology (UFST)
  • Turkish
  • Thai
  • Cyrillic
  • English & Extended Latin
  • Baltic & Baltic Rim
  • Greek
  • Hebrew
  • Vietnamese
Connectivity Technology:
Wired
Fonts Included:
  • Andale Mono
  • Andale Mono Bold
  • Century Schoolbook
  • CG Times
  • CG Times Bold
  • CG Triumvirate Condensed Bold
  • Letter Gothic
  • OCR-A
  • OCR-B
  • Univers
  • Univers Bold
  • Univers Condensed Bold
  • Univers Extra
  • TrueType
  • TrueType-based OpenType fonts
  • user downloadable fonts
Print Technology:
Thermal Transfer
Memory
Standard Memory:
128 MB
Flash Memory:
128 MB
Interfaces/Ports
USB Host:
Yes
USB:
Yes
USB Standard:
USB 2.0
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Screen Size:
4"
Display Screen Type:
LCD
Media Types & Handling
Media Type:
Label
Maximum Roll Diameter:
7.99"
Maximum Label Width:
4.65"
Maximum Label Length:
6.80"
Fonts & Emulation
Language Emulation:
  • ZSim2
  • ZPL II
  • IPL
  • DPL
  • EPL
  • XML
  • Fingerprint
  • E-Sim
Power Description
Power Source:
  • AC Supply
  • DC
Frequency:
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
85%
Physical Characteristics
Form Factor:
Tabletop
Height:
8.1"
Width:
8.3"
Depth:
9.3"
Weight (Approximate):
11.24 lb
Miscellaneous
Power Cable Localization:
EU
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
