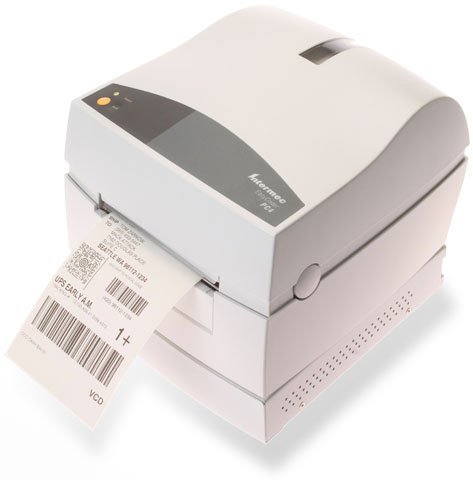

Intermec EasyCoder PC4 – Barcode Label Printer – 305 dpi – Direct Thermal

Name: Intermec PC4B00001000 Barcode Label Printer
Brand: Intermec
SKU: 19774

Part Number: PC4B00001000

Model: EasyCoder PC4

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Printer Type

Desktop

Printing Technology

Direct Thermal

Interface Options

Parallel, Serial (RS-232), USB

Print Resolution

305 dpi

Product Description:

Direct thermal only, 300 dpi, serial, parallel and USB interfaces, 2MB RAM, 1MB flash, US Power Cord and tear-off and self-strip with LTS.

Explore all Intermec EasyCoder PC4 Barcode Label Printers

Add to Quote

Intermec PC4B00001000 Barcode Label Printer

Overview

Full specifications (PDF)

Intermec EasyCoder PC4 Barcode Label Printer Model Overview

Perfect for new installations, the Intermec EasyCoder PC4 is easy to set up and easy to use. All needed cables, software, drivers and even labels are included with the printer when it ships, making the EasyCoder PC4 ideal for busy or inexperienced users. The EasyCoder PC4 features RS232, USB and parallel interfaces, a choice of 200 or 300 dpi resolution, and a battery option for mobile printing. The Intermec EasyCoder PC4 is compatible with the EasyCoder 91 and the EasyCoder 7422 applications. Includes Intermec LabelShop START barcode label design software.

Intermec PC4B00001000 Barcode Label Printer Overview

The compact PC4 Desktop Printer is perfect for the inexperienced or busy user. Set up and printing are quick and easy tasks. Its unique double clam shell design enables simple drop in loading of paper and ribbon supplies. The printer's compact size, sturdiness and silent operation make it ideal for a variety of applications including retail, office, healthcare, logistics, government and manufacturing.

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

4 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Width:

4.02"

Barcode Symbology Supported:

Maxi Code
PDF-417
Data Matrix
QR Code

Application/Usage:

Desktop

Features:

Tear-off

Print Technology:

Direct Thermal

Memory

Standard Memory:

2 MB

Memory Technology:

DRAM

Flash Memory:

1 MB

Interfaces/Ports

Parallel Port:

Yes

Serial Port:

Yes

USB:

Yes

Media Types & Handling

Media Type:

Label
Tag
Continuous Form

Media Sensor:

Reflective Media Sensor

Maximum Roll Diameter:

Maximum Label Width:

4.65"

Maximum Label Length:

31"

Label Core Size:

1.50"

Ribbon Core Size:

0.50"

Power Description

Input Voltage:

110 V AC
220 V AC

Physical Characteristics

Height:

6.6"

Width:

9.1"

Depth:

10.1"

Miscellaneous

Power Cable Localization:

Package Contents:

PC4 Thermal Label Printer
US Power Cord
Software Media (Includes: Label Design Software and Windows Driver)

Cables Included:

Additional Information:

Self strip with label taken sensor
Easily replaceable QuickMount printhead
One multi-color LED indicator lamp and one Print/Feed key
Unique double clam shell design offers easy drop-in loading of paper and ribbon supplies

Platform Supported:

Warranty

Limited Warranty:

1 Year

Item Numbers

GTIN: 0000058507094

UPC: 000058507094

EAN: 0000058507094

UNSPSC: 45101512
