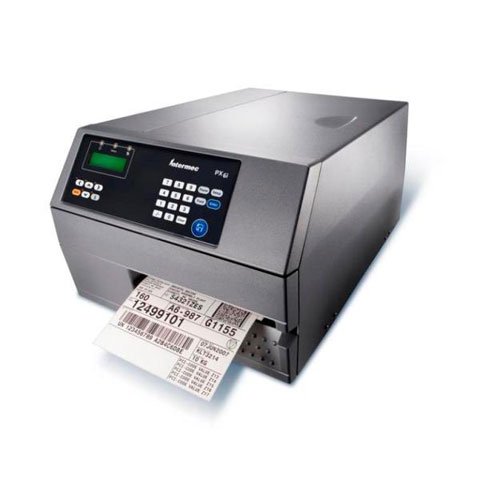

Intermec EasyCoder PX6i – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PX6B010000300020
Model: EasyCoder PX6i
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet
Print Resolution
203 dpi

Product Description:

  EasyCoder P6Xi Direct Thermal-Thermal Transfer (US Power Cord, IPL Firmware, EasyLAN Ethernet Interface, No I/O Option 1, No I/O Option 2, 16MB RAM, 4MB Flash, Rotating Unwinding Media Hanger, No Option 1, No Option 2 and TT 203 dpi)
Explore all Intermec EasyCoder PX6i Barcode Label Printers
Add to Quote
Intermec PX6B010000300020 Barcode Label Printer
Intermec PX6B010000300020 Barcode Label Printer
Intermec PX6B010000300020 Barcode Label Printer Intermec PX6B010000300020 Barcode Label Printer
Full specifications (PDF)

Intermec EasyCoder PX6i Barcode Label Printer Model Overview

The EasyCoder PX Series printers are rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The EasyCoder PX6i features a maximum print width of 6 inches and either 203 or 300-dpi resolution printheads. The open, modular design ensures the printer is easy to adapt, maintain and service. The EasyCoder PX6i printer prints instantly from first to last label at up to 12 inches per second-ideal for on demand and compliance labeling applications with variable data requiring immediate results. The combination of powerful, individually controlled micro-step motors, generously dimensioned power supply and new sophisticated thermal management printhead ensures high-quality labels each and every time. Includes Intermec LabelShop START barcode label design software.
Intermec PX6B010000300020 Barcode Label Printer Overview

The EasyCoder PX6i Label Printer is rugged, metal, high-performance printers designed to excel in demanding 24/7-duty applications. The PX6i feature a maximum print width of 6 inches. The combination of powerful individually controlled micro-step motors, generously dimensioned power supply, and new sophisticated thermal management print head ensures high-quality labels each and every time.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
4 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.59"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • MSI PLESSEY
  • Code 128
  • Code 128-A
  • Code 128-C
  • DUN-14/16
  • UPC/EAN
  • EAN 128
  • EAN-128 Subset A
  • EAN-128 Subset C
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • Interleaved 2 of 5 A
  • Matrix 25
  • Planet Code
  • POSTNET
  • Straight 2 of 5
  • UCC 128
  • RSS
  • HIBC Code 39
  • HIBC Code 128
  • JIS-ITF
  • Code 16K
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • Micro PDF-417
  • EAN.UCC Composite
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Ethernet
Media Types & Handling
Media Type:
  • Roll Fed
  • Die-cut Label
  • Continuous Label
  • Fanfold
  • Tag
  • Ticket
Media Size:
6.70" x Roll Paper
Maximum Roll Diameter:
8.38"
Maximum Label Width:
6.69"
Maximum Label Length:
13.42 ft
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
IPL
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
9.4"
Width:
13.2"
Depth:
19"
Miscellaneous
Power Cable Localization:
US
Package Contents:
  • EasyCoder PX6i Label Printer
  • US Power Cord
  • User & Installation Manual
  • Printer Companion CD
  • Cleaning Card
  • Sample Media
  • Product Registration Card
  • Declaration of Conformity
Cables Included:
AC
Additional Information:
  • Print Speed: 4 - 9 ips variable
  • Graphics: Supports PCX file format
  • Wand interface for EasySet System
  • Display: Back-lit LCD for 2 x16 characters & 3 LED indicator lamps
Platform Supported:
PC
Certifications & Standards:
  • CE (EN55022 Class A)
  • FCC Class A
  • UL
  • CSA
  • C-Tick
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
