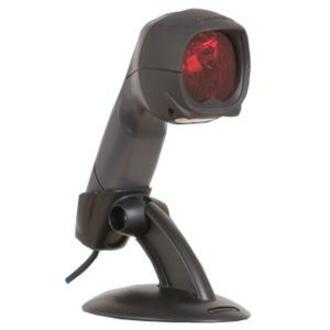

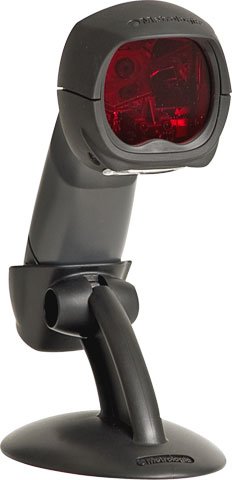

Metrologic Fusion 3780 Barcode Scanner Model Overview
Discover efficiency and convenience with the Honeywell Fusion™ M 3780 Omnidirectional Laser Scanner. This affordable, hand-held scanner features both omnidirectional and single-line scanning capabilities, making it perfect for medium-volume retail environments like specialty stores, pharmacies, and convenience stores. With a 20-line scan pattern, adjustable stand, and patented CodeGate® technology, the Fusion 3780 elevates your checkout process by enhancing speed and accuracy.
Key Features
Omnidirectional Scan Pattern: Aggressive scanning in any orientation for improved throughput.
Single-Line Scan Option: Easily switch between scan patterns with a button press for targeted scanning.
Automatic In-Stand Detection: Hands-free operation for reduced operator fatigue.
Sleep Mode with IR Wake Up: Energy-efficient sleep modes extend the scanner’s lifespan.
Optional Integration of RF EAS Antenna: Simultaneously deactivate RF EAS tags and decode barcodes for enhanced efficiency.
Specifications
Dimensions: 189 mm x 65 mm x 73 mm (7.4" x 2.6" x 2.9")
Weight: 195 g (6.9 oz)
Input Voltage: 5 VDC ± 0.25 V
Operating Power: 1.4 W (275 mA @ 5 V)
Standby Power: 1.0 W (200 mA @ 5 V)
Operating Temperature: -20°C to 40°C (-4°F to 104°F)
Storage Temperature: -40°C to 60°C (-40°F to 140°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop Specification: Designed to withstand multiple 1.5 m (5') drops
Scan Speed: Omnidirectional: 1,333 scan lines per second; Single line: 67 scan lines per second
Decode Capability: Reads standard 1D and GS1 DataBar symbologies
Metrologic Fusion combines omni directional and single-line laser bar code scanning into a lightweight, ergonomic hand-held form factor. The 20-line scan pattern provides superior scanning over existing single-line scanners making Fusion ideal for medium-volume retailers including specialty stores, pharmacies, liquor stores, and convenience stores. An adjustable stand with three locking positions provides flexibility for the user to position the scanner for individual comfort and optimal performance. Stabilized with a weighted metal base, the stand may also be hard-mounted to counters or walls.
The Metrologic MK3780-61B41/EAS Barcode Scanner is also known as
MET-MK3780-61B41/EAS
or MK378061B41/EAS.
IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.IMPORTANT UPDATE: Due to memory chip industry demands, manufacturers are signaling price increases and supply constraints. Contact us now to secure inventory and pricing.
Full specifications (PDF)
