Metrologic MS9540 Voyager – Barcode Scanner – Corded – 1D

Part Number: MK9540-72A40
Model: MS9540 Voyager
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D

Product Description:

  PowerPlus USB kit, 1D Laser. Includes Power Plus cable and stand. Color: Gray (PowerPlus USB is non-standard, please call for more information.). Non-Cancelable/Non-Returnable.
Explore all Metrologic MS9540 Voyager Barcode Scanners
Add to Quote

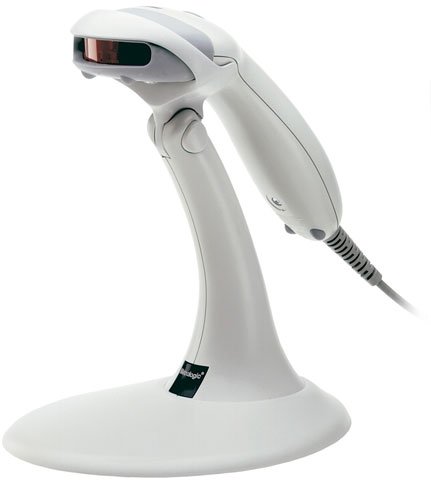

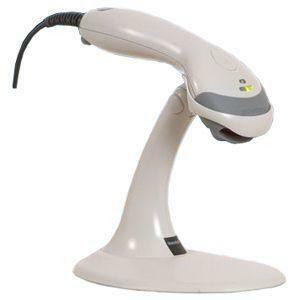

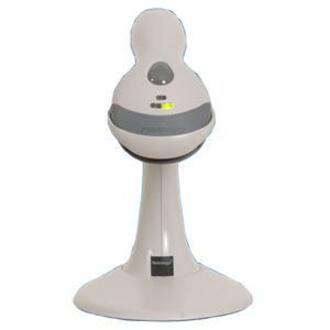

Metrologic MK9540-72A40 Barcode Scanner
Metrologic MK9540-72A40 Barcode Scanner
Metrologic MK9540-72A40 Barcode Scanner
Metrologic MK9540-72A40 Barcode Scanner Metrologic MK9540-72A40 Barcode Scanner Metrologic MK9540-72A40 Barcode Scanner
Full specifications (PDF)

Metrologic MS9540 Voyager Barcode Scanner Model Overview

The MS9540 Voyager features Metrologic's proprietary CodeGate technology. CodeGate is an intuitive scanning system that is ideal for all scanning applications, including menu-scanning, Point-of-Sale, document processing, and inventory, just to name a few. All units feature a five year warranty.
Metrologic MK9540-72A40 Barcode Scanner Overview

The Metrologic VoyagerCG MS9540 Bar Code Reader have united form with function to become the industry benchmark for value and performance. These sleek scanners feature a patented automatic infrared activation and decode all standard 1D bar codes, including RSS codes.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • All Standard Symbologies
  • RSS
Light Source:
Laser
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 0" - 2"@5.2mil
  • 0" - 5"@7.5mil
  • 0" - 7"@10.4mil
  • 0" - 8"@13mil
  • 1" - 10"@21mil
Scan Pattern:
Single Line
Interfaces/Ports
Host Interface:
Powered USB
Power Description
Input Voltage:
12 V DC
Physical Characteristics
Color:
Gray
Height:
7.8"
Width:
1.8"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • VoyagerCG MS9540 Bar Code Reader
  • MetroSelect Single-Line Configuration Guide
  • MS9500 Voyager Series Single-Line Hand Held Laser Scanner User's Guide
Additional Information:

USB Power Plus 12 VDC

USB Cable separate

Certifications & Standards:
  • RoHS
  • WEEE

Laser Class 1:

  • Class 1; IEC60825-1:1993/A1:1997+A2:2001
  • Class 1; EN60825-1:1994/A11:1996+A2:2001

EMC:

  • FCC Class B
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0000002863870, 0682276551648, 0777785889112, 0783555036334, 0853585477459
UPC: 000002863870, 682276551648, 777785889112, 783555036334, 853585477459
EAN: 0000002863870, 0682276551648, 0777785889112, 0783555036334, 0853585477459
UNSPSC: 43211701
