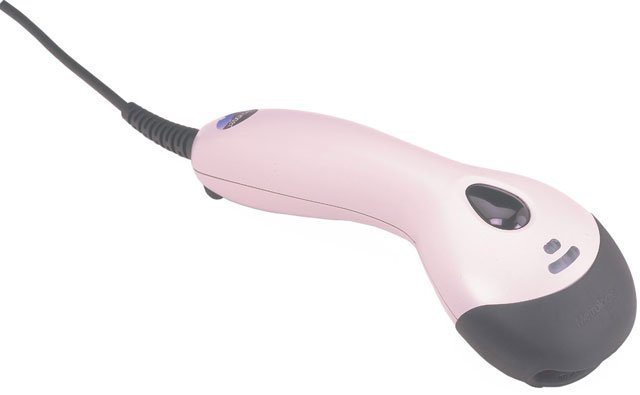

Metrologic MS9544 Voyager PDF – Barcode Scanner – 1D

Part Number: MK9544-72B41
Model: MS9544 Voyager PDF
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  RS-232 kit. Includes PDF417 scanner, RS-232 cable, power supply, stand, Codegate & manual. Color: white.
Explore all Metrologic MS9544 Voyager PDF Barcode Scanners
Add to Quote

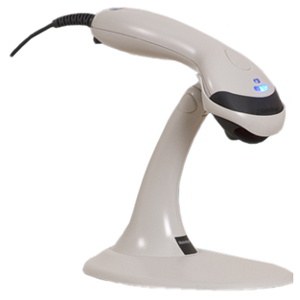

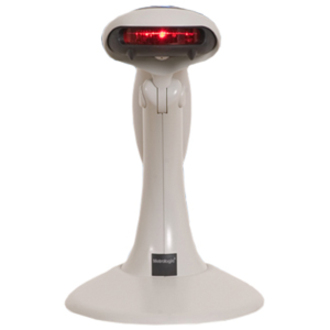

Metrologic MK9544-72B41 Barcode Scanner
Metrologic MK9544-72B41 Barcode Scanner
Metrologic MK9544-72B41 Barcode Scanner
Metrologic MK9544-72B41 Barcode Scanner Metrologic MK9544-72B41 Barcode Scanner Metrologic MK9544-72B41 Barcode Scanner
Full specifications (PDF)

Metrologic MS9544 Voyager PDF Barcode Scanner Model Overview

The MS9544 Voyager PDF is a high-speed linear laser scanner capable of decoding two-dimensional barcodes including PDF417, PDF417 truncated, and RSS composite. VoyagerPDF is targeted to satisfy POS applications requiring moderate-volume scanning of two-dimensional symbologies such as pharmacy applications and driver's license verification.
Metrologic MK9544-72B41 Barcode Scanner Overview

The Metrologic VoyagerPDF MS9544 Bar Code Reader combines the ability to decode PDF bar codes with many of the outstanding features found in all Voyager series hand-held, single-line scanner the industry benchmark for value and performance. Both models decode the following: 1D, PDF417, PDF417 truncated, micro PDF, macro PDF and RSS-14 composite bar codes. In addition to automatic activation, VoyagerPDF MS9544 also comes equipped with Metrologic patented CodeGate technology which completes data transmission with the push of a single button.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D, macro PDF and RSS-14 composite bar codes.

Light Source:
Laser
Maximum Scan Resolution:
5 mil
Scan Pattern:
Single Line
Cable Type Included:
Serial
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5.2 V DC
Power Supply Included:
Yes
Physical Characteristics
Color:
Gray
Height:
7.8"
Width:
3.1"
Depth:
1.6"
Weight (Approximate):
5.26 oz
Miscellaneous
Package Contents:
  • VoyagerPDF MS9544 Bar Code Reader
  • RS-232 Cable
  • 110V Power Supply
Additional Information:

Supported Interfaces:

  • Serial
  • Keyboard Wedge
  • OCIA
  • Light Pen Emulation
  • IBM 468X/469X
  • USB

    • Certifications & Standards:
    • RoHS
    • WEEE

    Laser Class 1:

    • Class 1; IEC60825-1:1993/A1:1997+A2:2001
    • Class 1; EN60825-1:1994/A11:1996+A2:2001

    EMC:

    • FCC Class B
    Environmentally Friendly:
    Yes
    Environmental Certification:
    • RoHS
    • WEEE
    Item Numbers
    UNSPSC: 43211701
