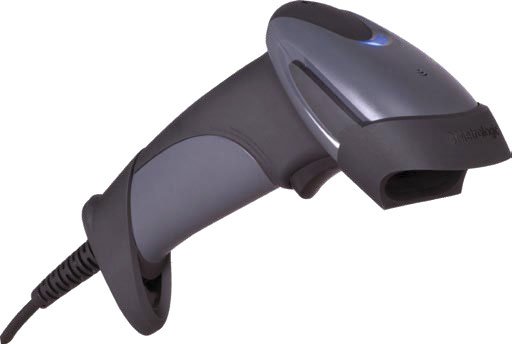

Metrologic MS9590 Voyager GS – Barcode Scanner – Corded – 1D

Part Number: MK9590-60B14
Model: MS9590 Voyager GS
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Connectivity
Corded
Form Factor
Handheld
Scanner Capability
1D
Scanner Type
Laser

Product Description:

  RS-232/Power Supply Kit. 1D Scanner, coiled RS-232 PowerLink cable, and US power supply. Color: Dark Gray.
Explore all Metrologic MS9590 Voyager GS Barcode Scanners
Add to Quote
Metrologic MK9590-60B14 Barcode Scanner
Metrologic MK9590-60B14 Barcode Scanner
Metrologic MK9590-60B14 Barcode Scanner Metrologic MK9590-60B14 Barcode Scanner
Full specifications (PDF)

Metrologic MS9590 Voyager GS Barcode Scanner Model Overview

As the newest addition to the industry-leading Voyager series, the MS9590 VoyagerGS features a new ergonomic design that maximizes comfort and reduces fatigue for customers desiring a trigger-activated, hand-held laser scanner. This new form factor makes the scanner ideal for a variety of applications, including retail point-of-sale, office automation and healthcare settings
Metrologic MK9590-60B14 Barcode Scanner Overview

Metrologic's VoyagerGS MS9590 Bar Code Reader is the newest addition to the Voyager hand-held laser scanners. The VoyagerGS MS9590 Bar Code Reader is the first Voyager product to feature trigger scanning in a new ergonomic form factor that maximizes comfort and reduces fatigue.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Code 39
  • Code 93
  • Code 128
  • UPC/EAN/JAN
  • Code 2 of 5
  • Code 11
  • Codabar
  • MSI Plessey
  • GS1 DataBar
  • Telepen
  • Trioptic
Light Source:
Laser
Scan Rate:
100 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 83mm - 108mm@5.2mil
  • 38mm - 178mm@7.5mil
  • 32mm - 254mm@10.4mil
  • 0mm - 305mm@13mil
  • 12mm - 445mm@26mil
Interfaces/Ports
Host Interface:
Multi-interface
Physical Characteristics
Height:
3.9"
Width:
2.6"
Depth:
6.3"
Weight (Approximate):
5.29 oz
Miscellaneous
Additional Information:

Supported Interface:

  • RS-232

USB Cable separate

Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • WEEE
Warranty
Limited Warranty:
5 Year
Item Numbers
GTIN: 0115971223096
UPC: 115971223096
EAN: 0115971223096
UNSPSC: 43211701
