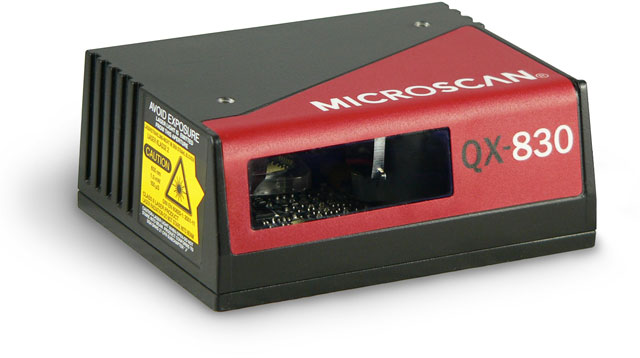

Microscan QX-830 Fixed Barcode Scanner
Microscan QX-830 -
The Microscan QX-830 laser scanner combines revolutionary flexible connectivity with high performance decoding capabilities to reliably read 1D barcodes in almost any automation environment. In addition to the Quick Connect System and X-Mode Technology, the QX-830 features IP65 industrial sealing and optional embedded Ethernet protocols.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$2,462.00
Get help from a Barcoding Expert!
Accessories For Microscan QX-830 Fixed Barcode Scanner
Scanner Capability
- 1D (1)
Microscan QX-830 Fixed Barcode Scanner Options
-
Microscan FIS-0830-0006G Fixed Barcode Scanner
Industrial barcode reader, Microscan QX-830, raster line, high density, serial interface$2,462.00 -
Microscan FIS-0830-0002G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Single Line, Medium Density, Serial$2,519.00 -
Microscan FIS-0830-0003G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Single Line, High Density, Serial$2,519.00 -
Microscan FIS-0830-0004G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial$2,519.00 -
Microscan FIS-0830-0005G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Raster Line, Medium Density, Serial$2,519.00 -
Microscan FIS-0830-0010G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial, Plastic Window, This product is non-cancellable and non-returnable$2,519.00 -
Microscan FIS-0830-0001G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Single Line, Low Density, Serial$2,519.00 -
Microscan FIS-0830-1005G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Raster Line, Medium Density, Serial+Ethernet$2,795.00 -
Microscan FIS-0830-1002G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Single Line, Medium Density, Serial+Ethernet$2,795.00 -
Microscan FIS-0830-1003G Fixed Barcode Scanner
Microscan QX-830 Industrial Fixed Barcode Reader, Read Range: 1 To 30", Scans at 300-1400 codes per second, Single Line, High Density, Serial and Ethernet Interface, This product is non-cancellable and non-returnable$2,795.00 -
Microscan FIS-0830-1001G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Single Line, Low Density, Serial+Ethernet, This product is non-cancellable and non-returnable$2,795.00 -
Microscan FIS-0830-1004G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Raster Line, Low Density, Serial+Ethernet$2,795.00 -
Microscan FIS-0830-1006G Fixed Barcode Scanner
QX-830, Industrial Barcode Reader, Raster Line, High Density, Serial+Ethernet$2,795.00 -
Microscan FIS-0830-1010G Fixed Barcode Scanner
QX-830, Industrial Barcode Raster Line, Low Density, Serial+Ethernet, Plastic Window, This product is non-cancellable and non-returnable$2,795.00
Microscan QX-830 Fixed Barcode Scanner Model Overview
The QX-830 Compact Industrial Laser Scanner is engineered to deliver exceptional performance in demanding automation environments. With its revolutionary flexible connectivity, this scanner adeptly reads 1D barcodes across various applications, from conveyor lines to packaging and sortation processes. Featuring an IP65-rated enclosure, the QX-830 ensures durability while embedded Ethernet protocols provide swift communication. Its compact design allows for versatile positioning, making it an ideal choice for both light and heavy-duty settings. Experience high-speed scanning with adjustable rates from 300 to 1400 scans per second, ensuring reliable operations even in challenging conditions.
Key Features
- High Performance: Scans at a rate of 300 to 1400 scans/second.
- Extended Read Range: Capable of reading barcodes up to 37 inches (940 mm).
- IP65 Enclosure: Dust tight and protected against water splashes.
- EZ Button: Simplifies reader setup without the need for a computer.
- Quick Connect System: Features M12 Ultra-Lock connectors for easy installation.
- X-Mode Technology: Ensures reliable decoding of damaged or poorly printed barcodes.
Specifications
- Dimensions: 2.59" (L) x 3.47" (W) x 1.38" (H)
- Weight: 7.5 oz (212 g)
- Operating Temperature: 0° to 50°C (32° to 122°F)
- Storage Temperature: -50° to 75°C (-58° to 167°F)
- Humidity: Up to 90% (non-condensing)
- Power Requirement: 10-28 VDC, 180 mA at 24 VDC (typical)
- Scan Width Angle: Typically 60°
- Protocols Supported: Ethernet TCP/IP, EtherNet/IP, RS-232/422/485
