Motorola HK1875A Access Point

Part Number: HK1875A

Model: AP7181

Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Wireless LAN Standard

IEEE 802.11n

ISM Band

Yes

UNII Band

Yes

ISM Minimum Frequency

2.40 GHz

Product Description:

AP7181 2.4/5.X Ghz AC Radio. Includes Power Supply (Part# 30009307001).

Explore all Motorola AP7181 Access Points

Add to Quote

Overview

Full specifications (PDF)

Motorola AP7181 Access Point Model Overview

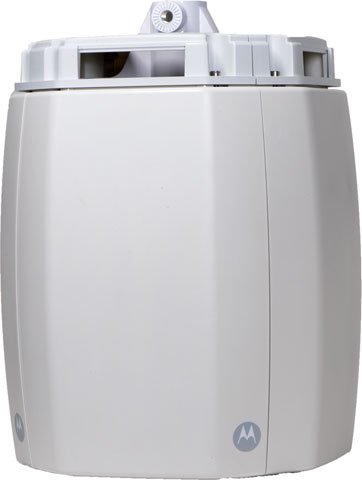

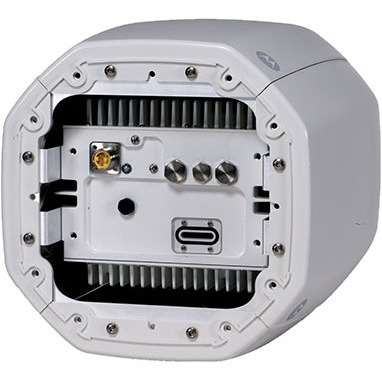

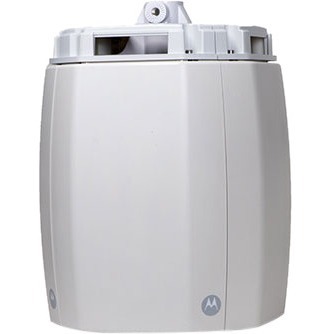

The Motorola AP7181 is a high performance, multi-radio 802.11n access point featuring superb network capacity, a maximum data rate of 300 Mbps and Motorola's unique intelligent ADEPT (ADvanced Element Panel Technology) antenna system. With the exclusive, ADEPT (ADvanced Element Panel Technology) antenna system, the AP7181 achieves maximum data rates of up to 300 Mbps by delivering a reliable dual data stream in an outdoor environment. Leveraging multiple transmit and receive RF chains and dual polarized antennas, the AP7181 achieves superior mesh throughput throughout a coverage area. The Motorola AP7181 is the result of years of customer research and development and is designed specifically to meet the outdoor network needs of municipal agencies, transit systems, and enterprises.

Motorola HK1875A Access Point Overview

The AP 7181 is a high performance, multi-radio 802.11n access point featuring superb network capacity, a maximum data rate of 300 Mbps and Motorola's unique intelligent ADEPT (ADvanced Element Panel Technology) antenna system. With the exclusive, ADEPT (ADvanced Element Panel Technology) antenna system, the AP 7181 achieves maximum data rates of up to 300 Mbps by delivering a reliable dual data stream in an outdoor environment. Leveraging multiple transmit and receive RF chains and dual polarized antennas, the AP 7181 achieves superior mesh throughput throughout a coverage area.

Detailed Specs

Full specifications (PDF)

Technical Information

Wireless LAN Standard:

IEEE 802.11n

ISM Band:

Yes

UNII Band:

Yes

ISM Minimum Frequency:

2.40 GHz

ISM Maximum Frequency:

2.46 GHz

UNII Minimum Frequency:

5.47 GHz

UNII Maximum Frequency:

5.86 GHz

Antenna Type:

Dual Polarized Antenna

Wireless Transmission Speed:

300 Mbit/s

Wireless Security:

WPA
WPA2-PSK
WEP
IEEE 802.11i
IEEE 802.1X
EAP-TLS
EAP-TTLS
AES- CCM
TKIP
AES
MAC Address Authentication

Features:

Quality of Service (QoS)
MIMO Technology
Corrosion Resistant

Interfaces/Ports

Ethernet Technology:

Ethernet
Fast Ethernet
Gigabit Ethernet

Number of Network (RJ-45) Ports:

Network (RJ-11):

PoE (RJ-45) Port:

VGA:

HDMI:

Audio Line Out:

Serial Port:

USB:

Powerline:

Management Port:

Yes

Management & Protocols

Management:

Web Base Management

Power Description

Input Voltage:

120 V AC
230 V AC

Physical Characteristics

Form Factor:

Pole-mountable
Wall Mountable
Parapet Mount

Height:

15.4"

Diameter:

14"

Weight (Approximate):

39 lb

Miscellaneous

Certifications & Standards:

Approvals:

FCC CFR 47 Part 15 Class B Subpart C
RSS 210
UL 60950-1 -22
CE
EN 301 489-17
EN 300 328
EN 302 502 v1.2.1
EN 301 893 v1.5.1
DFSCB
IEC 60950-1 -22
EPP
CMM

IEEE Standards

802.11a
802.11b
802.11g
802.11n
802.11i
802.1X
802.3af
802.11e

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
WEEE

Item Numbers

UNSPSC: 43222631
