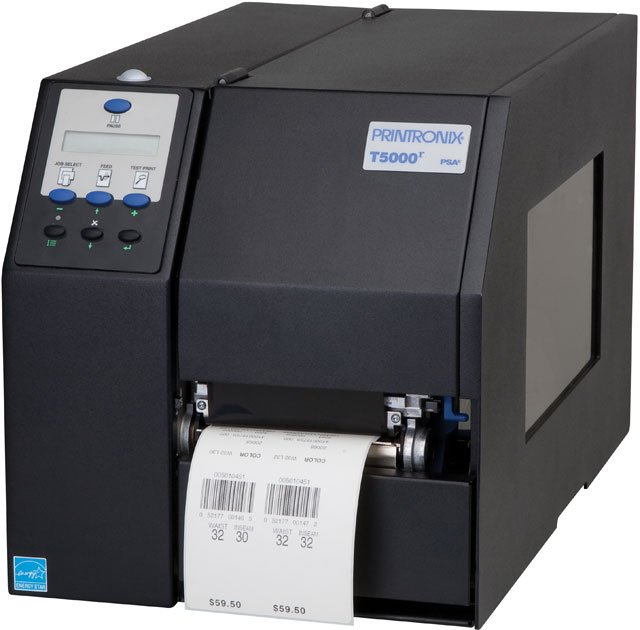

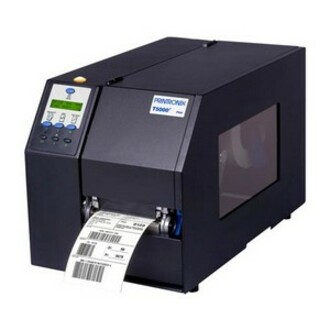

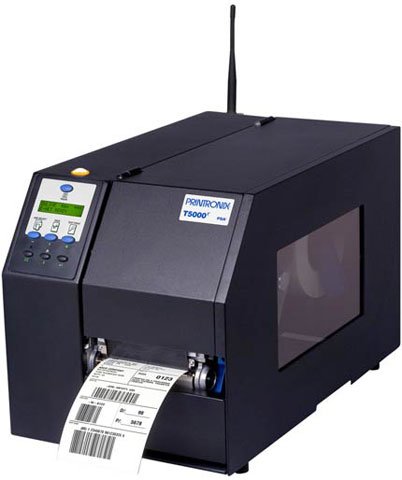

Printronix T5304 – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer

Part Number: 178668-001
Model: T5304
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Print Resolution
300 dpi, 305 dpi
Max Print Width
4.5 inch

Product Description:

  Printronix ThermaLine T5304r Label Printer - Monochrome - 8 in/s Mono - 300 dpi - Serial, Parallel, USB
Explore all Printronix T5304 Barcode Label Printers
Add to Quote
Printronix 178668-001 Barcode Label Printer
Printronix 178668-001 Barcode Label Printer
Printronix 178668-001 Barcode Label Printer
Printronix 178668-001 Barcode Label Printer
Printronix 178668-001 Barcode Label Printer Printronix 178668-001 Barcode Label Printer Printronix 178668-001 Barcode Label Printer Printronix 178668-001 Barcode Label Printer
Full specifications (PDF)

Printronix T5304 Barcode Label Printer Model Overview

The T5304 delivers dependable and reliable 4" wide barcode printing at 300 dpi for compliance labeling and accommodates higher density barcodes, increased graphics or smaller text with snap-in print heads. When used in conjunction with ODV technology (Online Data Validation), the T5304 provides verification of scannable barcodes at the point of label creation. Designed as RFID Smart Ready, the T5304 converts to an UHF RFID printer encoder as RFID requirements enter the supply chain. Combining barcode compliance and RFID technology the T5304 links barcode and EPC data together for storage, retrieval, electronic audits and data synchronization.
Printronix 178668-001 Barcode Label Printer Overview

T5304r thermal bar code printer, based on the world-class 5r Multi-Technology Platform, are web-enabled, industrial-grade thermal printer designed to operate in demanding manufacturing or distribution environment. Printronix bar code printer enable the roll out of bar code label printing throughout the supply chain with an open migration path to RFID.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
8 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • Australia Post
  • Aztec Code
  • BC35
  • BC412
  • Codabar
  • Code 11
  • Code 35
  • Code 39
  • Code 93
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Data Matrix
  • EAN-8
  • EAN-13
  • FIM
  • 125 German
  • Interleaved 2 of 5
  • ITF-14
  • Matrix
  • Maxi Code
  • MSI
  • PDF-417
  • Planet Code
  • Plessey
  • POSTNET
  • PostBar
  • RSS-14
  • Telepen
  • UCC/EAN 128
  • UPC-A
  • UPC-E
  • UPC-E0
  • UPCSHIP
  • UPS11
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
32 MB
Memory Technology:
DRAM
Flash Memory:
8 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Media Types & Handling
Media Type:
  • Roll Paper
  • Fanfold
  • Label
  • Tag
  • Ticket
  • Film
  • Synthetic Media
Media Size:
Custom Size
Maximum Roll Diameter:
8"
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
13"
Width:
11.7"
Depth:
20.5"
Miscellaneous
Additional Information:

Media Width: 1.0" to 4.5"

Platform Supported:
PC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
