Socket Mobile IS5309-1198 Products

Part Number: IS5309-1198
Model: Parts
Add to My Shopping List Add to Compare
$30.77

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Plug-in Card
Scanning Capability
1D
Barcode Symbology Supported
Chinese 2 of 5CodabarCode 11Code 128Code 39Code 93D 2 of 5GS1-128 (UCC-128/EAN-128)GS1 DataBar (RSS)I 2 of 5MSIUPC/EAN
Light Source
Laser

Product Description:

  Socket SDSC 3E2 Handheld Bar Code Reader - DISCONTINUED - Plug-in Card Connectivity - 100 scan/s - 10.50" Scan Distance - 1D - Laser - Bi-directional - SDIO
Explore all Socket Mobile Parts Accessories
Add to Quote
Socket Mobile IS5309-1198 Products
Socket Mobile IS5309-1198 Products

Socket Mobile Parts Accessory Model Overview

Products and parts from Socket-Mobile.
Socket Mobile IS5309-1198 Products Overview

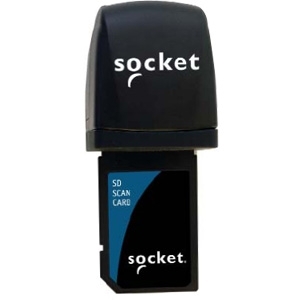

SDIO Scan Card 3E2, Class 1 Laser

The Secure Digital Scan Card (SDSC) 3E2 offers a convenient solution for the mobile professional to input bar code data into mobile computers quickly, easily and accurately.

Socket SDSC 3E2 is equipped with a powerful Class 1 laser bar code scanning engine, and is able to handle large volume and high speed scanning. Its state-of-the-art laser technology enables the reading of damaged, poor quality and hard to read bar codes, even on curved and reflective surfaces and in dim environments.

Technical Information
Connectivity Technology:
Plug-in Card
Scanning Capability:
1D
Barcode Symbology Supported:
  • Chinese 2 of 5
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • D 2 of 5
  • GS1-128 (UCC-128/EAN-128)
  • GS1 DataBar (RSS)
  • I 2 of 5
  • MSI
  • UPC/EAN
Light Source:
Laser
Scan Rate:
100 scan/s
Scan Pattern:
Bi-directional
Scanning Distance:
10.50"
Interfaces/Ports
Host Interface:
SDIO
Power Description
Input Voltage:
3.3 V DC
Physical Characteristics
Form Factor:
Modular
Weight (Approximate):
0.60 oz
Miscellaneous
Package Contents:
  • Secure Digital Scan Card
  • CD with software and user documentation
Additional Information:

USB Cable separate

Platform Supported:
  • Smartphone
  • PC
Certifications & Standards:
EMI/RFI FCC:
  • Part 15, Class B
  • CISPR 22
  • ICES-003 Class B
  • CE: EN55024:2003
  • Japan VCCI Class B
  • AS 3548
  • C-TICK: s.182
Laser Safety:
  • 21 CFR 1040.10
  • 21 CFR 1040.11
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0758497053091
UPC: 758497053091
EAN: 0758497053091
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Socket Mobile IS5309-1198 Products is also known as EVO-ACL002 or IS53091198.
