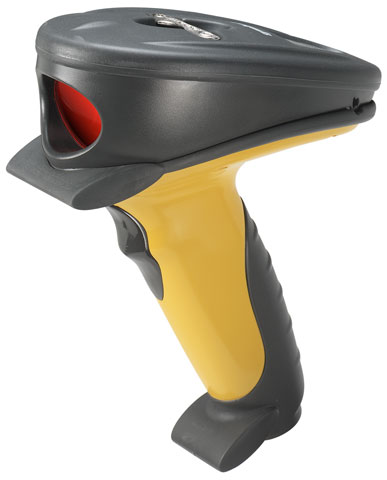

Symbol P304 PRO – Barcode Scanner – 1D

Part Number: P304PRO-I100
Model: P304 PRO
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  scanner. Order cables & power supply separately. See accessories.
Explore all Symbol P304 PRO Barcode Scanners
Add to Quote
Symbol P304PRO-I100 Barcode Scanner
Symbol P304PRO-I100 Barcode Scanner
Symbol P304PRO-I100 Barcode Scanner
Symbol P304PRO-I100 Barcode Scanner Symbol P304PRO-I100 Barcode Scanner Symbol P304PRO-I100 Barcode Scanner
Full specifications (PDF)

Symbol P304 PRO Barcode Scanner Model Overview

The P304 PRO from Symbol Technologies is the industrial handheld laser scanner for unsurpassed high-volume 2D barcode scanning. The P304 PRO offers more than just an award-winning ergonomic shape, it provides time-saving features like laser spot mode and smart raster to deliver unrivaled sub-second decoding on both 2D and 1D symbols. All units ship with one product reference guide.
Symbol P304PRO-I100 Barcode Scanner Overview

The P304PRO Bar Code Reader from Symbol Technologies is the industrial handheld laser scanner for unsurpassed high-volume 2-D bar code scanning. The P304PRO offers more than just an award-winning ergonomic shape, it provides time-saving features like laser spot mode and smart raster to deliver unrivaled sub-second decoding on both 2-D and 1-D symbols.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • PDF 417
  • Micro PDF417
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Code 39
  • Trioptic Code 39
  • Code 93
  • Discrete 2 of 5
  • Bookland EAN
  • UPC Coupon Code
  • Code 39 Full ASCII
  • Code 128
  • Interleaved 2 of 5
  • Codabar
  • UCC/EAN 128
  • MSI/PLESSEY
  • Code 11
Light Source:
Laser
Scan Rate:
560 scan/s
Maximum Scan Resolution:
6.60 mil
Depth of Field:
  • 1.25" - 5"@6mil
  • 1" - 7"@7.5mil
  • 1.5" - 15"@UPC
  • 2" - 20.5"@20mil
  • 4" - 32"@55mil
  • 1.25" - 6"@6.6mil - 2D
  • 3" - 9.5"@10mil - 2D
  • 5" - 15"@15mil - 2D
Interfaces/Ports
Host Interface:
Serial
Power Description
Input Voltage:
5.5 V DC
Physical Characteristics
Height:
6.8"
Depth:
5.9"
Weight (Approximate):
11 oz
Miscellaneous
Additional Information:

Scan Element Type:

  • Raster scanning

Memory:

  • 64KB SRAM
  • 512KB Flash

Supported Interface Type using Synapse Smart cable:

  • Keyboard wedge
  • USB
  • OCIA
  • Dual RS-232

USB Cable separate

Certifications & Standards:

Electrical Safety:

  • UL1950
  • CSA C22.2 No. 950
  • EN60950/IEC950

Laser Safety:

  • CDRH Class II
  • IEC Class 2

EMI/RFI:

  • FCC Part 15 Class B
  • IECES-003 Class B
  • European Union EMC Directive
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211701
