Symbol WSAP-5100-100-WWR Wireless Access Points

Part Number: WSAP-5100-100-WWR
Model: AP 300
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Wireless LAN Standard
IEEE 802.11a/b/g
ISM Band
Yes
UNII Band
Yes
ISM Minimum Frequency
2.41 GHz

Product Description:

  Access Port (802.11a+b/g Access Port with with external antenna connection - antennas not included), black brushed steel housing. RoHS Compliant.
Explore all Symbol AP 300 Wireless Access Points
Add to Quote
Symbol WSAP-5100-100-WWR Wireless Access Points
Symbol WSAP-5100-100-WWR Wireless Access Points
Symbol WSAP-5100-100-WWR Wireless Access Points Symbol WSAP-5100-100-WWR Wireless Access Points
Full specifications (PDF)

Symbol AP 300 Wireless Access Points Model Overview

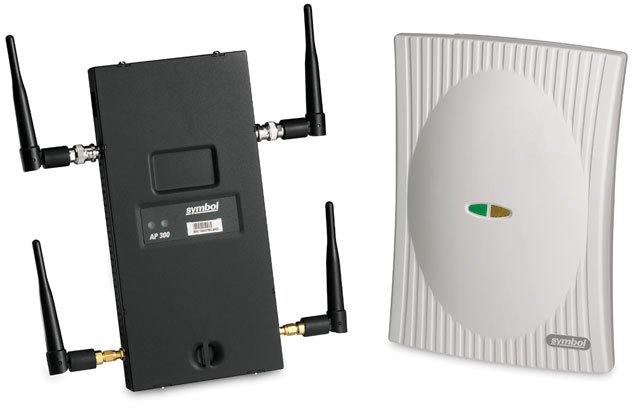

The Symbol AP 300 provides simultaneous wireless service to 802.11a, 802.11b and 802.11g mobile devices with high-bandwidth wireless connectivity at speeds of up to 54 Mbps in both the 2.4 GHz and 5.2 GHz ISM bands. The AP 300 requires no configuration or manual firmware maintenance. The Symbol Wireless Switch discovers Access Ports on the network and automatically downloads all configuration parameters and firmware. Installation, maintenance and troubleshooting costs are greatly reduced.
Symbol WSAP-5100-100-WWR Wireless Access Points Overview

Symbol's AP300 delivers rich 802.11a/b/g connectivity, working in conjunction Symbol's wireless switches as the point of connection between your mobile devices and your wireless LAN. This thin next-generation access point is a low-cost device that is centrally and remotely managed through a Symbol wireless switch. Rapid configuration and the ability to quickly and easily upgrade the devices to support new functionality, features and security protocols substantially reduces the cost of deploying, implementing and managing your wireless LAN, while significantly increasing features, functionality and security of your wireless LAN infrastructure.

Full specifications (PDF)
Technical Information
Wireless LAN Standard:
IEEE 802.11a/b/g
ISM Band:
Yes
UNII Band:
Yes
ISM Minimum Frequency:
2.41 GHz
ISM Maximum Frequency:
2.47 GHz
UNII Minimum Frequency:
5.15 GHz
UNII Maximum Frequency:
5.73 GHz
Total Number of Antennas:
4
Antenna Connector:
  • RP-SMA Connector
  • BNC Connector
Wireless Transmission Speed:
54 Mbit/s
Wireless Security:
  • Basic Service Set Identifier (BSSID)
  • Extended Service Set ID (ESSID)
  • RADIUS
  • 802.1x-EAP
  • TKIP
  • AES
Interfaces/Ports
Ethernet Technology:
Fast Ethernet
Number of Network (RJ-45) Ports:
1
Physical Characteristics
Form Factor:
  • Wall Mountable
  • Ceiling Mountable
Height:
1"
Depth:
9.3"
Weight (Approximate):
1.60 lb
Miscellaneous
Additional Information:
  • Load Balancing
  • Pre-Emptive Roaming
  • Rate Scaling

Frequency Range:

  • IEEE 802.1b/g:
  • 2.412 GHz to 2.462 GHz
  • IEEE 802.11a:
  • 5.150 GHz to 5.250 GHz (UNII -1)
  • 5.250 GHz to 5.350 GHz (UNII -2)
  • 5.725 GHz to 5.825 GHz (UNII -3)
Item Numbers
UNSPSC: 43222631
