TSC TC Series – Barcode Label Printer
Part Number:
99-059A001-54LF
Model:
TC Series
Full specifications (PDF)

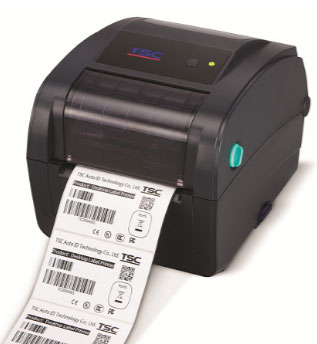

TSC TC Series Barcode Label Printer Model Overview
The TSC TC Series Desktop Label Printers are designed to enhance your labeling experience with a perfect balance of compactness and functionality. With models such as TC210 and TC310 offering impressive print speeds and high-quality output, these printers are ideal for various applications, including point-of-sale, inventory control, and asset tracking. Their intuitive design makes loading media and ribbons a breeze, ensuring efficient operation for any work environment. Benefit from energy efficiency with ENERGY STAR® qualification and a choice of multiple interfaces for seamless connectivity.
Key Features:
Specifications:
Key Features:
- Compact size for space-saving design.
- High print quality at resolutions of 203 DPI and 300 DPI.
- Standard memory: 128 MB Flash and 64 MB SDRAM for TC210 and TC310.
- Durable double-walled clamshell design.
- Color TFT display for easier navigation (available in TC210 & TC310).
- Multiple interfaces: USB 2.0, parallel, serial, Ethernet, and optional Bluetooth.
- Cerner certified and compliant with safety regulations.
Specifications:
- Printing Method: Thermal Transfer & Direct Thermal
- Max Print Speed: 152 mm/s (6") for TC210/TC310; 102 mm/s (4") for TC300
- Max Print Width: 108 mm (4.25") for TC210; 105.6 mm (4.15") for TC300
- Max Print Length: 2,286 mm (90 inches) up to 25,400 mm (1,000 inches)
- Physical Dimension: 203 mm (W) x 191.5 mm (H) x 259.3 mm (D)
- Weight: 2.2 kg (4.85 lbs)
- Label Roll Capacity: 110 mm (1.57" to 4.33") diameter
- Power Supply: External universal switching power supply, AC input: 100-240V
- Environmental Condition: Operating: 5 to 40 °C, 25-85% non-condensing
