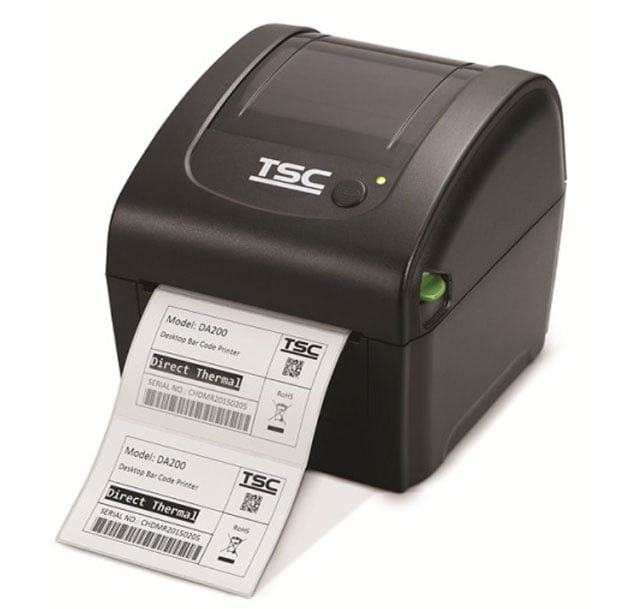

TSC DA320 – Barcode Label Printer
Part Number:
99-158A014-20LF
Model:
DA210/DA220 Series
Full specifications (PDF)
TSC DA210/DA220 Series Barcode Label Printer Model Overview
The TSC DA210 Desktop Bar Code Printer combines exceptional value and advanced technology for a variety of labeling applications. Designed with a compact profile, this printer delivers high-quality Direct Thermal printing at speeds up to 6 inches per second. With intuitive media loading and a robust double-walled clamshell design, it is built for efficiency in small parcel shipping, retail point-of-sale systems, and much more. Its ENERGY STAR® qualification ensures that you are making an environmentally friendly choice without compromising on performance.
Key Features
- High-quality double-walled clamshell design
- Rapid print speed of 6 inches per second
- USB 2.0 interface
- Bluetooth 4.0 and 802.11 a/b/g/n connectivity options
- Compatible with Eltron, Zebra, and Datamax languages
- Easy media loading for user convenience
Specifications
- Resolution: 8 dots/mm (203 DPI)
- Printing Method: Direct Thermal
- Max. Print Speed: 152.4 mm (6")/second
- Max. Print Width: 108 mm (4.25")
- Max. Print Length: 2,794 mm (110")
- Enclosure: Double-walled plastic
- Physical Dimensions: 172 mm (W) x 165 mm (H) x 195 mm (D)
- Weight: 1.5 kg (3.31 lbs)
- Power: AC 100-240V, DC 24V, 2.5A
- Memory: 128 MB Flash, 64 MB DRAM
Brand
TSC
Model
DA320
Recommended Accessories
Category
- Printer Accessories (1)
Recommended Accessories for Model: TSC 99-158A014-20LF Barcode Label Printer
Top Printer Accessories Purchased With TSC 99-158A014-20LF
-
TSC 98-0650062-23LF AccessoryMain Board Assembly, Full Ports, Compatible with DA220 and DA320 Series$258.15
