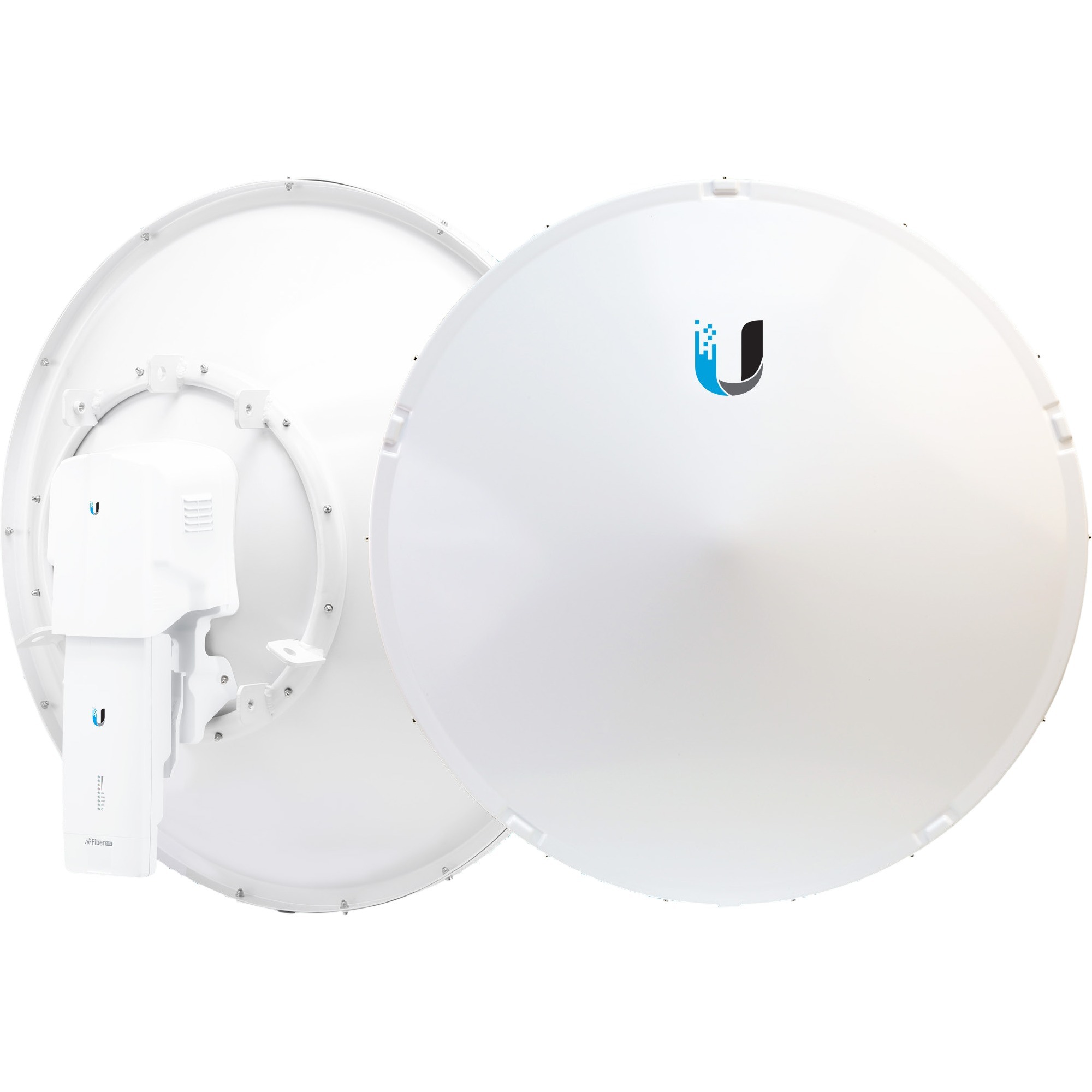

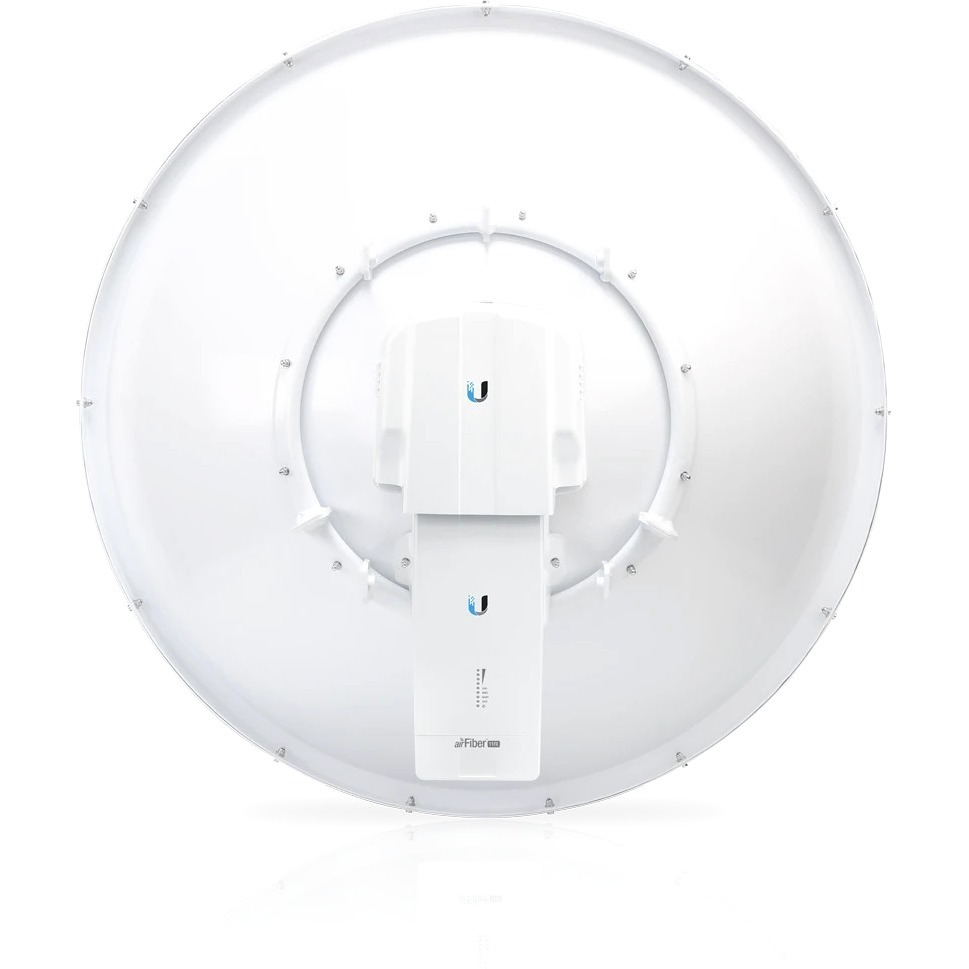

Ubiquiti Networks AF11-COMPLETE-HB Data Networking

• airFiber 11 AF-11 Satellite Radio
• 50V, 1.2A PoE Gigabit Adapter
• 1 x High-band Duplexer

• Networking Interface:
• Data: 1 x 10/100/1000 Ethernet Port
• Management: 1 x 10/100 Ethernet Port
• Mounting: AF-11G35 Mount Compatible
• Supported Voltage Range: 38-56VDC
• Power Supply: UniFi PoE Switch
• Operating Temperature: -40 to 55° C (-40 to 131° F)
• RF Connectors: 4 x SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer

SYSTEM

• Processor: INVICTUS™ 2 IC
• Maximum Throughput: 1.2+ Gbps
• Encryption: 128-bit AES
• OS: airOS F
• Wireless Modes: SISO/MIMO
• Operating Frequency: 10.7-11.7 GHz (Depends on Regulatory Region)
• Max. Conducted TX Power: 30 dBm (Depends on Regulatory Region)
• Frequency Accuracy: ± 1 ppm
• Channel Bandwidth:
• 3.5/5/7/10/14/20/28/30/40/50/56 MHz
• Selectable
• Programmable Uplink and Downlink Duty Cycles

• Restriction of Hazardous Substances (RoHS)
• Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
