Protection Type:
- Surge Protection
- Clamping Protection
- Peak Pulse Current

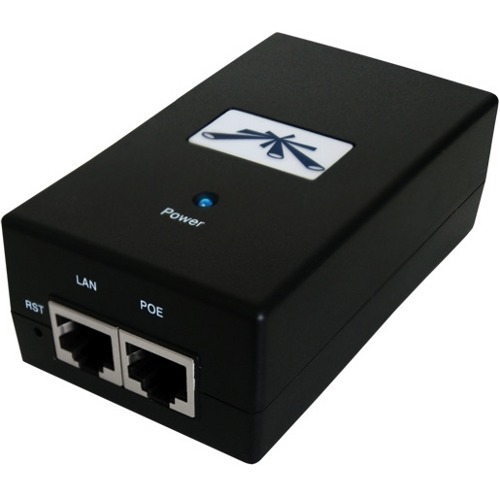

Ubiquiti Networks POE-24-12W PoE Injectors
Part Number:
POE-24-12W
Model:
Accessories
Technical Information
Power Description
Input Voltage:
- 120 V AC
- 230 V AC
Maximum Output Voltage:
24 V DC
Maximum Input Current:
300 mA
Maximum Output Current:
500 mA
Minimum Frequency:
47 Hz
Maximum Frequency:
63 Hz
Maximum Output Power:
12 W
Interfaces/Ports
Input Ports:
1 x Ethernet
Output Ports:
1 x Ethernet
Physical Characteristics
Height:
1.2"
Width:
3.4"
Depth:
3.3"
Weight (Approximate):
3.25 oz
Miscellaneous
Certifications & Standards:
- IEC 60950-1:2005+A1
- UL60950-1
- EN55022:2010 (CISPR22) Class B
- EN55024:2010
- FCC Class B
- CE
Country of Origin:
China
Item Numbers
GTIN:
0123798488031, 0609728685409, 0810354021183, 0810354022982, 0817882021975, 0817882026635, 0818203157595, 0818213968525, 0818213994708, 0818231487312
UPC:
123798488031, 609728685409, 810354021183, 810354022982, 817882021975, 817882026635, 818203157595, 818213968525, 818213994708, 818231487312
EAN:
0123798488031, 0609728685409, 0810354021183, 0810354022982, 0817882021975, 0817882026635, 0818203157595, 0818213968525, 0818213994708, 0818231487312
UNSPSC:
39121004
Get help from a Barcoding Expert!
The Ubiquiti Networks POE-24-12W PoE Injectors is also known as
UBI-POE2412W
