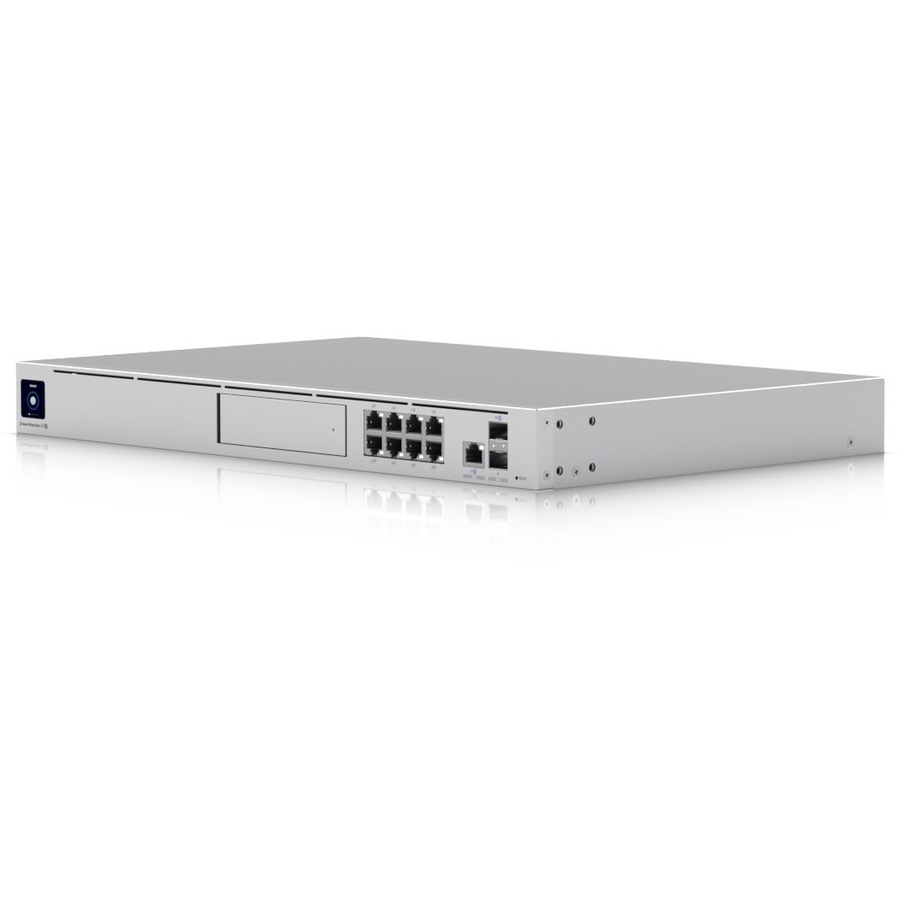

Ubiquiti Networks UDM-SE Data Networking

Part Number: UDM-SE
Model: Parts
Add to My Shopping List Add to Compare
$604.22
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Total Number of Ports
9
Management Port
Yes
Number of Network (RJ-45) Ports
8
Number of WAN Ports
1

Product Description:

  Ubiquiti UNIFI DREAM MACHINE SPECIAL ED
Explore all Ubiquiti Networks Parts Accessories
Add to Quote
Ubiquiti Networks UDM-SE Data Networking
Ubiquiti Networks UDM-SE Data Networking
Interfaces/Ports
Total Number of Ports:
9
Management Port:
Yes
Number of Network (RJ-45) Ports:
8
Number of WAN Ports:
1
I/O Expansions
Total Number of Expansion Slots:
2
Expansion Slot Type:
SFP+
Network & Communication
Ethernet Technology:
10 Gigabit Ethernet
Network Technology:
  • 10GBase-X
  • 2.5GBase-T
  • 1000Base-T
Networking Standards:
  • IEEE 802.3af
  • IEEE 802.3at
Memory
Standard Memory:
4 GB
Power Description
PoE (RJ-45) Port:
Yes
Power Consumption:
50 W
Power Source:
AC/DC
Physical Characteristics
Form Factor:
Rack-mountable
Height:
1.7"
Width:
17.4"
Depth:
11.2"
Weight (Approximate):
10.91 lb
Miscellaneous
Additional Information:

Mechanical

  • Enclosure materials : Aluminium CNC, SGCC steel
  • Mount material : SGCC steel

Hardware

  • Processor : Quad-core ARM® Cortex®-A57 at 1.7 GHz
  • System memory : 4 GB DDR4
  • On-board storage : 16 GB eMMC Integrated 128 GB SSD
  • Management interface :
    • Ethernet
    • Bluetooth
  • Networking interface :
    • (8) LAN: GbE RJ45 ports
    • (1) WAN: 2.5 GbE RJ45 port
  • SFP+ interface :
    • (1) LAN: 10G SFP+
    • (1) WAN: 10G SFP+
  • PoE interface :
    • (6) PoE (Pair A 1, 2+; 3, 6-)
    • (2) PoE+ (Pair A 1, 6-)
  • IDS/IPS throughput : 3.5 Gbps* : *Measured with iPerf3
  • Power method :
    • (1) Universal AC input, 100-240V AC, 4.4A Max., 50/60 Hz
    • (1) USP-RPS DC input, 52V DC, 3.94A
  • Power supply : AC/DC, internal, 240W
  • Supported voltage range : 100-240V AC
  • Max. power consumption : 50W (Excluding PoE output)
  • Max. PoE wattage per port by PSE :
    • PoE: 15.4W
    • PoE+: 30W
  • Voltage range PoE mode :
    • PoE: 44-57V
    • PoE+: 50-57V
  • ESD/EMP protection : Air: ± 15kV, contact: ± 8kV
  • LCM display : (1) 1.3" touchscreen
  • Button : Factory reset
  • Operating temperature : -10 to 40° C (14 to 104° F)
  • Operating humidity : 5 to 95% noncondensing
  • Certifications : CE, FCC, IC
Item Numbers
GTIN: 0810010070869, 0810010077462, 0810010077769, 0817882025973
UPC: 810010070869, 810010077462, 810010077769, 817882025973
EAN: 0810010070869, 0810010077462, 0810010077769, 0817882025973
UNSPSC: 43222609
