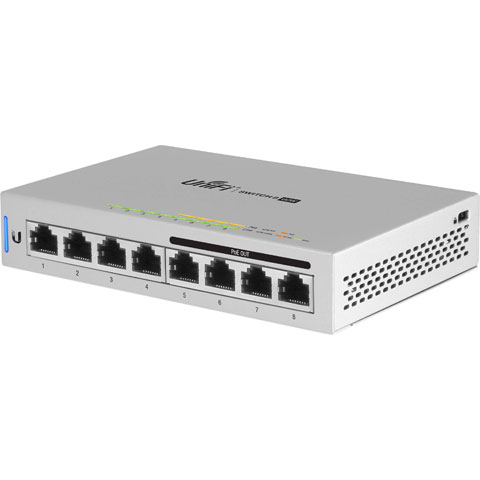

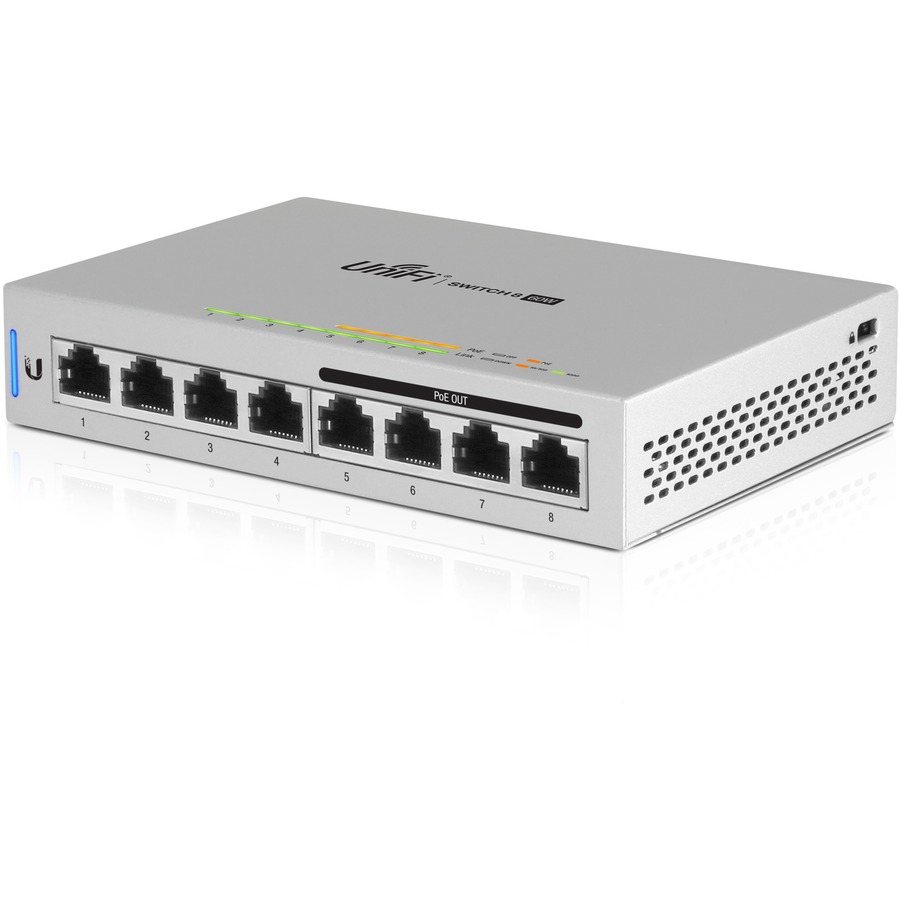

Ubiquiti Networks US-8-60W Ethernet Switch
Ubiquiti Networks UniFi Switch 8 Ethernet Switch Model Overview
Experience seamless connectivity with the Ubiquiti UniFi Switch 8, a robust 8-port managed gigabit switch designed for enterprise networks. Its compact design houses Gigabit Ethernet ports that ensure high-speed throughput of up to 8 Gbps, making it perfect for critical data transfer needs. Power over Ethernet (PoE) capabilities make it an ideal solution for powering devices like access points and cameras directly through the Ethernet cable. Easily manage your network with the intuitive UniFi Controller, giving you comprehensive oversight and configuration options.
Key features:
- 8 Gigabit RJ45 Ports for high-speed network performance.
- Non-Blocking Throughput of 8 Gbps
- PoE Passthrough Port for powering devices.
- Managed Capabilities via the UniFi Controller software.
- Supports multi-site management for easier network oversight.
Specifications:
- Model: US-8
- Weight: 432 g (15.24 oz)
- Dimensions: 148.0 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
- Total Non-Blocking Throughput: 8 Gbps
- Switching Capacity: 16 Gbps
- Forwarding Rate: 11.9 Mpps
- Power Consumption: 12W (excluding PoE output)
- PoE Ports: 4 ports supporting IEEE 802.3af/at
- Operating Temperature: -5 to 45°C (23 to 113°F)
- Certifications: CE, FCC, IC
for your networks.
Switching Performance
The UniFi Switch offers the forwarding capacity to simultaneously process traffic on all ports at line rate without any packet loss.
For its total, non-blocking throughput, each UniFi Switch supports up to 8 Gbps with a switching capacity of 16 Gbps.
PoE
The US-8 can be powered by 802.3af/at, 48V passive PoE, or the included power adapter. When the US-8 is powered by 802.3at PoE or the included power supply, port 8 supports 48V (2-pair) PoE passthrough to deliver up to 12W of power.
- UniFi US-8-60W Ethernet Switch
- AC Adapter
