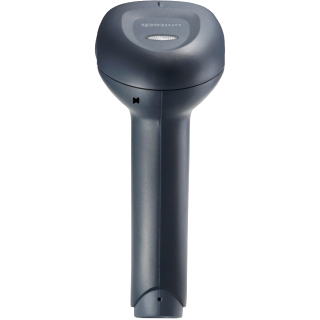

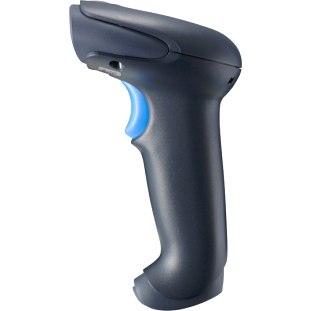

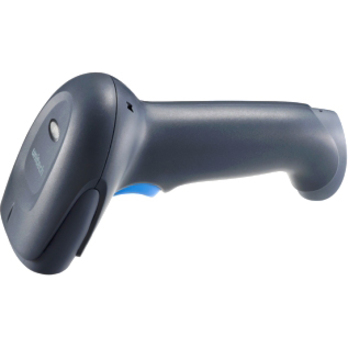

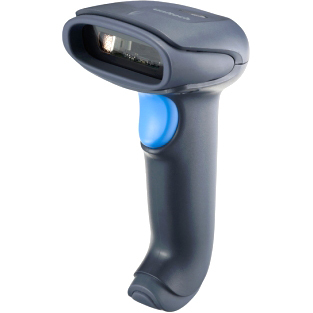

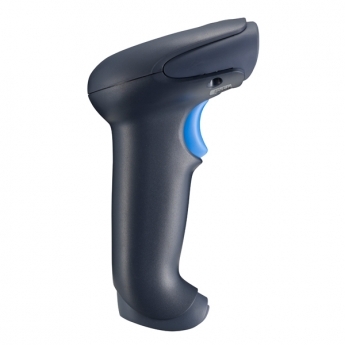

Unitech MS837 – Barcode Scanner – Corded – 1D

The Unitech MS837 Handheld Laser Scanner combines simplicity, ergonomic design, and exceptional reliability, making it perfect for various applications such as point-of-sale, inventory control, and document processing. Featuring advanced laser scanning technology, the MS837 offers a longer working range and wider scan field than typical CCD scanners, ensuring efficient barcode targeting and data transmission with just a single button press. Designed for user comfort, this scanner minimizes fatigue during prolonged use, while its cost-effective performance rivals that of high-end devices.

Key Features:

• Intuitive Handheld Scanning: Provides aggressive scanning performance with high speed and sensitivity.
• Enhanced Scanning Capability: Reads all standard 1D barcodes effortlessly, meeting diverse application needs.
• High Cost-Effectiveness: Achieves superior performance at an incredibly competitive price.
• Ergonomic Design: Comfortably fits in hand to reduce fatigue during long operation hours.

Specifications:

• Electrical:
  • Operation Voltage: 5VDC ±0.25V
  • Current Consumption: 675mW (125mA @ 5V-decoding)
  • Standby Power: 675mW (125mA @ 5V)
• Mechanical:
  • Scanner Dimensions: H153 x W70 x L110 mm
  • Weight: 120g (without cable)
• Optical & Performance:
  • Receiving Device: Laser engine
  • Light Source: Visible Laser Diode 650 nm
  • Max Resolution: 4 mil (0.1mm)
  • Scan Rate: 72 scans/second
  • Scan Angle: 46° (typical)
  • Printing Contrast Scale: 35% Minimum
  • Reading Distance (DOF PCS-80%): Near - 7.6 cm; Far - 12.7 cm
• Environmental:
  • Mechanical Shock: 1M onto concrete
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -40°C to 60°C
  • Relative Humidity: 5% to 95% non-condensing
• Communication:
  • Host Interface Supported: USB & Keyboard wedge
• Functionality:
  • Operation Mode: Trigger mode, Auto scan mode
  • Supported Symbologies: All standard 1D and GS1 databar symbologies

Simple operation, user-friendly ergonomics and excellent reliability , the Unitech MS837 hand-held laser scanner is ideal for a broad range of market applications such as menu scanning, point-of-sale, document processing, and inventory control.
