Product Highlights

View All
Connectivity Technology
Wireless
Image Sensor Type
Imager
Barcode Symbology Supported
1D Codes:Australian PostBritish PostCanadian PostCodabarCode 11Code 128Code 39Code 93EAN 13EAN 8IATA 2 of 5ITFISBTJapanese PostKix CodeKorean PostMatrix 2 of 5MSIPlanet codePostnetRSS expandedRSS limitedRSS 14UPC AUPC EUPC E12D CodesAztecCodablock FCode 49DatamatrixEAN-UCCCompositeMaxicodeMicro PDF417PDF 417QR CodeTcif lonked C39
Drop Specification
60"

Product Description:

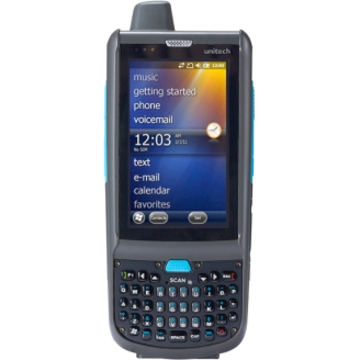

  Unitech PA690 Handheld Terminal - Marvell XScale 806 MHz - 256 MB RAM - 512 MB Flash - 3.8" LCD - 26 Keys - Numeric Keyboard - Bluetooth
Explore all Unitech PA690 Mobile Computers
Add to Quote
Unitech PA690-H892WAHG Mobile Computer
Unitech PA690-H892WAHG Mobile Computer
Unitech PA690-H892WAHG Mobile Computer
Unitech PA690-H892WAHG Mobile Computer Unitech PA690-H892WAHG Mobile Computer

Full specifications (PDF)

Unitech PA690 Mobile Computer Model Overview

The Unitech PA690 is a portable data terminal with GPD, Windows Embedded 6.5 software (available with and without phone capabilities), a full QWERTY keypad and WLAN/WWAN/PAN (Bluetooth) connectivity. The PA690 is available with a 5.0 megapixel camera, a 1D laser barcode scanner, Micro SD support (up to 32GB) and long battery life.
Unitech PA690-H892WAHG Mobile Computer Overview

The Unitech PA690 is a rugged handheld computer designed to empower your mobile workforce in today's aggressive business environment. As productivity and efficiency define the benchmark for success, the PA690 provides field-based workers with a host of data collection tools and a comprehensive wireless communication platform, all in a compact, durable and ergonomic form factor.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Image Sensor Type:
Imager
Barcode Symbology Supported:

1D Codes:

  • Australian Post
  • British Post
  • Canadian Post
  • Codabar
  • Code 11
  • Code 128
  • Code 39
  • Code 93
  • EAN 13
  • EAN 8
  • IATA 2 of 5
  • ITF
  • ISBT
  • Japanese Post
  • Kix Code
  • Korean Post
  • Matrix 2 of 5
  • MSI
  • Planet code
  • Postnet
  • RSS expanded
  • RSS limited
  • RSS 14
  • UPC A
  • UPC E
  • UPC E1

2D Codes

  • Aztec
  • Codablock F
  • Code 49
  • Datamatrix
  • EAN-UCC
  • Composite
  • Maxicode
  • Micro PDF417
  • PDF 417
  • QR Code
  • Tcif lonked C39
Drop Specification:
60"
Power Supply Included:
Yes
Processor & Chipset
Processor Manufacturer:
Marvell
Processor Type:
XScale
Processor Speed:
806 MHz
Memory
Standard Memory:
256 MB
Flash Memory:
512 MB
Memory Card Slot:
Yes
Memory Card Supported:
microSDHC
Display & Graphics
Screen Size:
3.8"
Screen Mode:
WVGA
Screen Resolution:
800 x 480
Display Color:
Color
Display Screen Type:
LCD
Touchscreen Information
Touchscreen:
Yes
Keyboard/Keypad
Number of Keys:
26
Keyboard Type:
Numeric
Network & Communication
Bluetooth:
Yes
GPS:
Yes
Antenna Form Factor:
External
Software
Operating System:
Microsoft Windows Embedded Handheld 6.5
Battery Information
Battery Capacity:
2200 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
7"
Width:
2.9"
Depth:
1.6"
Weight (Approximate):
13.76 oz
Miscellaneous
Package Contents:
  • PA690 Handheld Terminal
  • Power Supply
  • Battery
  • Stylus
  • Cables
Certifications & Standards:
  • CCX4
  • IP65
  • CE
  • FCC
  • BSMI
  • VCCI
  • CCC
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
