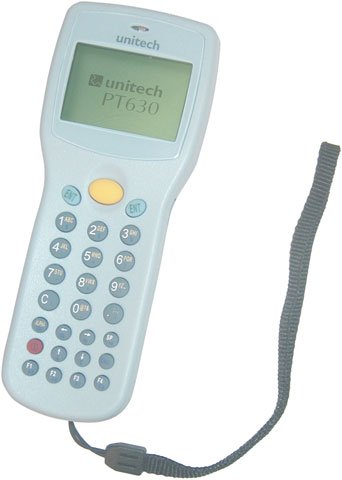

Unitech PT630 – Mobile Computer – DOS – 2.5 MB

Part Number: PT630DWA-2L00B
Model: PT630

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

RAM Memory
2.5 MB
IP Rating
IP54
Operating System
DOS

Product Description:

  Unitech PT630 Portable Data Terminal - NEC 2.50 MB RAM - 256 KB Flash - 27 Keys - Alphanumeric Keyboard

Unitech PT630 Mobile Computer Model Overview

The PT630 is designed to meet your demands in various applications, ranging from Transportation and Warehousing to Mobile Sales, Field Service, Retail, Meter Reading, etc.
Unitech PT630DWA-2L00B Mobile Computer Overview

The PT630 Portable Data Terminal is designed to meet your demands in various applications, ranging from Transportation and Warehousing to Mobile Sales, Field Service, Retail, Meter Reading, etc.

Rugged and durable, yet weighing less than 250 grams, the PT630 Portable Data Terminal is easy to handle. The PT630 Portable Data Terminal is well-protected by a robust housing allowing multiple 5 foot (1.5 meter) bounces off a concrete floor.The ruggedness of the PT630 Portable Data Terminal boosts high productivity and guarantees the investment of Enterprise Users.

The PT630 Portable Data Terminal provides out-of-the-box functionality via five ready-made common applications.The flexible modular design including bar code reading and keypad input makes the PT630 Portable Data Terminal a perfect multi-functional terminal for most data collection applications.

Technical Information
Connectivity Technology:
Batch
Light Source:
Laser
Scanner Range:
Standard Range
Barcode Symbology Supported:
  • UPC-A
  • UPC-E
  • EAN-8
  • EAN-13
  • Codabar
  • Code 39
  • Code 39 Full ASCII
  • Code 128
  • Code 93
  • EAN-128
  • China Postal Code
  • ITF
Electrostatic Discharge (ESD):
  • 8 kV DC Air Discharge
  • 4 kV DC Contact Discharge
Drop Specification:
60" To Concrete
Processor & Chipset
Processor Manufacturer:
NEC
Memory
Standard Memory:
2.50 MB
Flash Memory:
256 KB
Display & Graphics
Screen Resolution:
128 x 64
Display Color:
Monochrome
Backlight Technology:
LED
Number of Lines:
8
Number of Characters:
20
Keyboard/Keypad
Number of Keys:
27
Keyboard Type:
Alphanumeric
Software
Operating System:
DOS
Battery Information
Battery Capacity:
900 mAh
Battery Chemistry:
Lithium Ion (Li-Ion)
Battery Included:
Yes
Physical Characteristics
Height:
6.6"
Width:
2.6"
Depth:
1.4"
Weight (Approximate):
8.64 oz
Miscellaneous
Package Contents:
  • PT630 Portable Data Terminal
  • 2.5 MB RAM
  • A/C Adapter
  • Main and Backup Battery
  • User Manual
  • RS232 Communication Cable<
Additional Information:

Interface:

  • RS232 Via Proprietary Cable

Software Programming Tools:

  • C Language:
  • MSC
  • Borland C
  • Turbo C
  • JobGen Plus:
  • A Windows-based program generator
  • FormCaching:
  • A built-in program generator
  • DLL:
  • Available for 16/32-bit C++, VB, VFP, and Delphi
Certifications & Standards:
  • CE
  • FCC
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43211715
