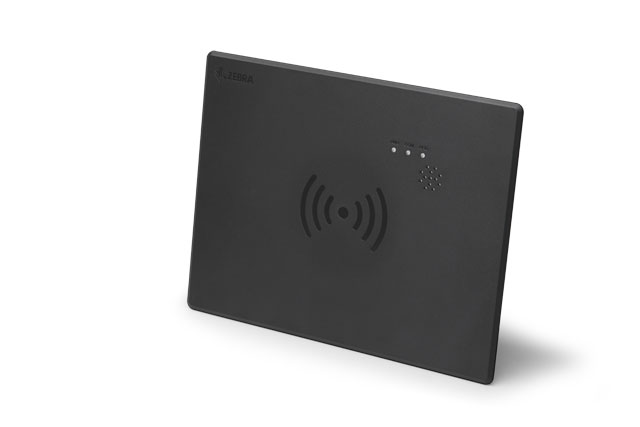

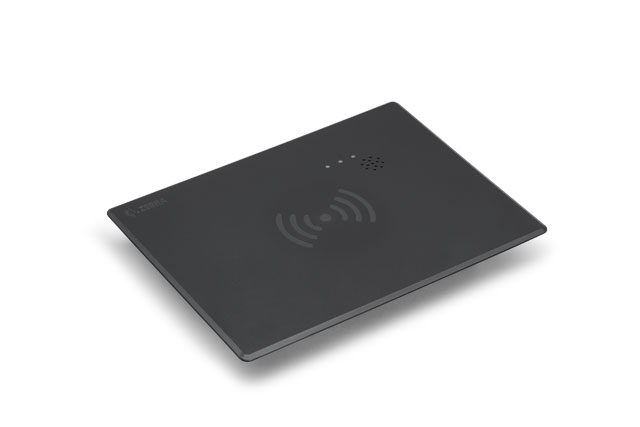

Zebra FXP20 RFID Reader
Zebra FXP20 -
The Zebra FXP20 POS RFID Reader is the game-changer your retail operation needs. Designed for speed and accuracy, it ensures seamless checkouts, precise inventory tracking, and real-time loss detection—all in a sleek, compact design. With simple USB connectivity and built-in visual and audio feedback, integration is effortless, whether for staffed or self-checkout. Say goodbye to checkout bottlenecks and inventory blind spots—upgrade to the FXP20 and keep your business moving forward.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
for Qty Discount
Add to Quote
Starting at:
$594.63
Get help from a Barcoding Expert!
Accessories For Zebra FXP20 RFID Reader
Zebra FXP20 RFID Reader Options
-
Zebra FXP20042-404031-US RFID Reader
RFID Reader, Zebra FXP20, Point of Sale Reader, RE40-Based, Integrated Short Range, Circular Polarized Antenna, for US, Canada, and Puerto Rico OnlyIn Stock$708.84 -
Zebra FXP20042-404031-WR RFID Reader
RFID Reader, Zebra FXP20, Point of Sale Reader, RE40-Based, Integrated Short Range, Circular Polarized Antenna, 900 MHz, WorldwideIn Stock$815.17
Zebra FXP20 RFID Reader Model Overview
The Zebra FXP20 POS RFID Reader is a state-of-the-art solution designed to streamline checkout processes and enhance visibility at the point of sale in retail environments. Its innovative all-in-one design combines both the antenna and reader, ensuring easy deployment and configuration. Perfect for staffed and self-checkouts, the FXP20 offers immediate feedback through adjustable visual and auditory signals, aiding in inventory management and loss prevention.
Key Features:
Specifications:
Key Features:
- Compact and All-in-One Design: Integrates antenna and reader for versatility across retail applications.
- High Performance: Engineered for fast, accurate scanning with the ability to filter out stray tags.
- Easy Integration: Quick setup with USB connectivity and user-friendly configuration tools.
- Robust Feedback Mechanism: Visual and audible signals provide immediate success indicators.
Specifications:
- Physical Characteristics:
- RFID Pad Dimensions: 5.3 in. x 4.6 in. x 1.4 in. (136 mm x 117 mm x 36 mm)
- Adapter Plate Dimensions: 7.3 in. x 9.7 in. x 1.3 in. (185 mm x 245 mm x 34 mm)
- Weight: 266 grams
- Power: 12VDC, 2A with DC Connector Lockable
- Indicators:
- 3 LED Indicator Multicolor Lights (Green, Blue, Orange)
- 3 Sound Levels (Low, Medium, High) manageable by SDK
- Connectivity: 1x USB Host Type-B LOCKABLE
- RF Characteristics:
- Operating Frequency (UHF): 865-928 MHz
- Transmit Power: 10 to 27 dBm (SDK Restriction)
- Receiver Sensitivity: -78 dBm
- Antenna Orientation: Circular Polarized
- Antenna Gain: -1 dBic (867 MHz), 1 dBic (915 MHz)
- Operating Conditions:
- Operating Temperature: 32° F to 104° F (0°C to 40°C)
- Storage Temperature: -40° to +158° F (-40° to +70° C)
- Humidity: 5-95% non-condensing
