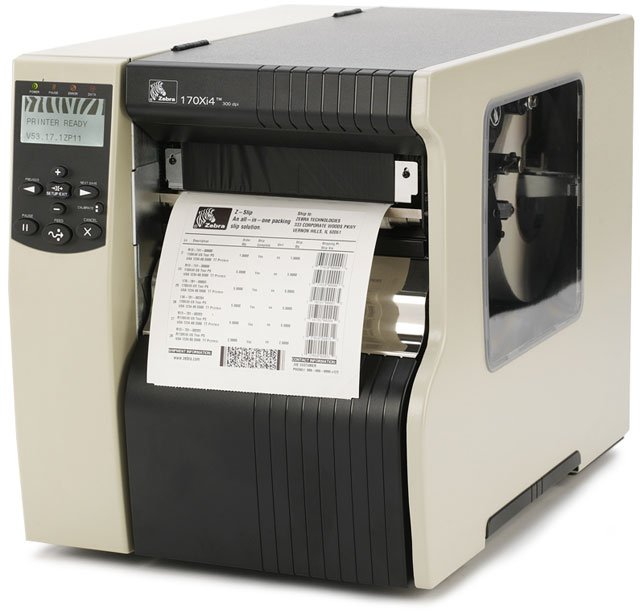

Zebra 170Xi4 – Barcode Label Printer – 300 dpi, 305 dpi – Thermal Transfer – Peeler, Rewinder

Part Number: 170-801-00200
Model: 170Xi4
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Parallel, Serial (RS-232), USB
Print Resolution
300 dpi, 305 dpi

Product Description:

  Thermal Transfer Industrial Printer (300 dpi, Ethernet, USB, Parallel, and Serial (RS-232) interfaces, 6.6" max print width, 16MB SDRAM, Rewinder and Peeler, Clear Media Side Door & Media Hanger). Includes power supply. Cables sold separately. See accessories.
Explore all Zebra 170Xi4 Barcode Label Printers
Add to Quote
Zebra 170-801-00200 Barcode Label Printer
Zebra 170-801-00200 Barcode Label Printer
Zebra 170-801-00200 Barcode Label Printer
Zebra 170-801-00200 Barcode Label Printer
Zebra 170-801-00200 Barcode Label Printer
Zebra 170-801-00200 Barcode Label Printer Zebra 170-801-00200 Barcode Label Printer Zebra 170-801-00200 Barcode Label Printer Zebra 170-801-00200 Barcode Label Printer

Full specifications (PDF)

Zebra 170Xi4 Barcode Label Printer Model Overview

The industrial-strength Zebra 170Xi4 with 203- or 300-dpi (8 or 12 dots per mm) print resolution and a 6.6" print width at 12" per second can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high-resolution print applications at a quick 8" (203 mm) per second. With its all-metal construction, this printer is ideal for tough applications including compliance labels (AIAG, ODETTE, UCC/EAN-128, etc.), product identification labels and pallet shipping/receiving labels, either on demand or in batches.
Zebra 170-801-00200 Barcode Label Printer Overview

The industrial strength 170Xi4 can print large volumes of labels, promoting greater productivity with fewer roll changes. Or it can execute intricate, high resolution print applications at a quick speed. With its all metal construction, this printer is ideal for tough applications including compliance labels, product identification labels and pallet shipping or receiving labels, either on demand or in batches.

Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Print Resolution (dpi):
300
Maximum Print Width:
6.60"
Barcode Symbology Supported:
  • Codabar
  • Code 11
  • Code 39
  • Code 93
  • EAN-13
  • EAN-8
  • Industrial 2 of 5
  • Interleaved 2 of 5
  • LOGMARS
  • MSI
  • Planet Code
  • Plessey
  • POSTNET
  • Standard 2 of 5
  • UPC 2 or 5 Digit Extension
  • UPC-E
  • UPC-A
  • Code 128
  • Code 128-A
  • Code 128-B
  • Code 128-C
  • Code 128 UCC
  • ISBT-128
  • Codablock
  • Code 49
  • Data Matrix
  • Maxi Code
  • PDF-417
  • QR Code
  • RSS
  • GS1 DataBar
  • TLC 39
  • Micro PDF
  • Aztec Code
Peel Facility:
Yes
Rewinder:
Yes
Features:
LCD Display
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
16 MB
Memory Technology:
SDRAM
Flash Memory:
4 MB
Interfaces/Ports
Parallel Port:
Yes
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Ethernet Technology:
Fast Ethernet
Media Types & Handling
Media Type:
  • Continuous Form
  • Die-cut Label
  • Black Mark
  • Fanfold
Media Sensor:
  • Transmissive Media Sensor
  • Reflective Media Sensor
Media Thickness:
12 mil
Maximum Roll Diameter:
8"
Maximum Label Width:
8.80"
Label Core Size:
3"
Ribbon Core Size:
1"
Fonts & Emulation
Language Emulation:
  • ZPL II
  • XML
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Height:
15.5"
Width:
15.7"
Depth:
19.5"
Miscellaneous
Package Contents:
  • 170Xi4 Network Thermal Label Printer
  • Power Cord
  • Xi4 User's Guide
  • CD (Includes: Ztools Utilities, ZPL II Programming Guide and Zebra Designer Software)
Cables Included:
AC
Additional Information:
  • Widest print width
  • Unicode Compliant
  • PCMCIA socket
  • Clear Media Side Door
  • Enhanced Alert notification
  • Advanced media/ribbon counter
  • Multi-level Element Energy Equalizer
  • Construction: 12-gauge steel frame
  • Single 32 bit 133 Mhz RISC processor
  • North American Edition, 120 VAC Cord
Platform Supported:
PC
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN: 0613063706187, 0783555019597, 0807027540751, 0853585479033
UPC: 613063706187, 783555019597, 807027540751, 853585479033
EAN: 0613063706187, 0783555019597, 0807027540751, 0853585479033
UNSPSC: 43212108
