Zebra 46689 Print Server

Part Number: 46689
Model: ZebraNet

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Parallel Port
Yes
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1
Media Type Supported
Twisted Pair

Product Description:

  Zebranet Printserver II (Internal, 10 Base T)

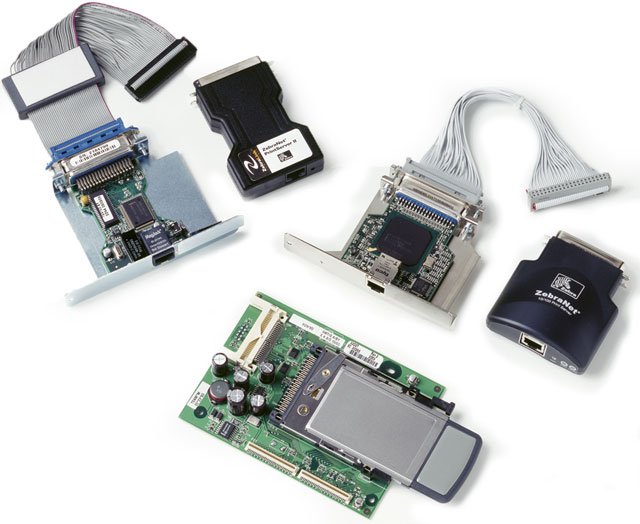

Zebra ZebraNet Print Server Model Overview

The ZebraNet Print Server family enhances connectivity solutions for Zebra bar code printers, ensuring that high-performance and industrial-strength printing is always at your fingertips. With versatile options for wired and wireless installations, these print servers enable location-independent printing with robust security measures and advanced management capabilities. Whether you opt for the ZebraNet Wireless Plus for hassle-free mobility or the ZebraNet 10/100 Print Server for wired reliability, you can count on seamless integration with your network setup and effortless operation.


Key features:

  • Flexible Connectivity: 10/100 Ethernet for industrial printers and secure wireless options for mobile operations.
  • Enhanced Management: Centralized control via Zebra's advanced tools for effortless setup.
  • Location Independence: 802.11b/g compliant solutions for printing anywhere.
  • High-Speed Performance: Optimal integration for quick printing tasks.

Specifications:

  • Wireless Network Connection: IEEE 802.11b/g
  • Data Rates Supported: 1, 2, 5.5, 11, and 54 Mbps
  • Power: Provided by the printer
  • Operating Temperature: 32°F to 104°F (0°C to 40°C)
  • Storage Temperature: -40°F to 140°F (-40°C to 60°C)
  • Warranty: One to three years depending on the model
  • Network Compatibility: Auto senses IEEE-802.3, Ethernet II, IEEE-802.2
Zebra 46689 Print Server Overview

ZebraNet PrintServer II is ideal for desktop printers on a 10Base-T or Novell IPX/SPX network and offers easy remote management for ZPL-based printers via ZebraLink. It is available in an internal version that provides a static footprint or an external configuration, which conveniently connects to the printer's parallel port and obtains power directly from the printer-external power supplies not required!

Interfaces/Ports
Parallel Port:
Yes
Network (RJ-45):
Yes
Number of Network (RJ-45) Ports:
1
Media & Performance
Media Type Supported:
Twisted Pair
Network & Communication
Ethernet Technology:
Ethernet
Network Technology:
10Base-T
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Plug-in Module
Height:
0.8"
Width:
2.5"
Depth:
3.6"
Weight (Approximate):
2.50 oz
Miscellaneous
Additional Information:
  • Auto senses IEEE-802.3, Ethernet II, IEEE 802.2, and IEEE 802.2/SNAP frame formats
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0760707067033
UPC: 760707067033
EAN: 0760707067033
UNSPSC: 43201537
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Zebra 46689 Print Server is also known as ZEB-46689 or 46689.
