Full specifications (PDF)
Connectivity Technology:
Wireless
Zebra VH10110110110F00 Data Terminal
Part Number:
VH10110110110F00
Model:
VH10/VH10f

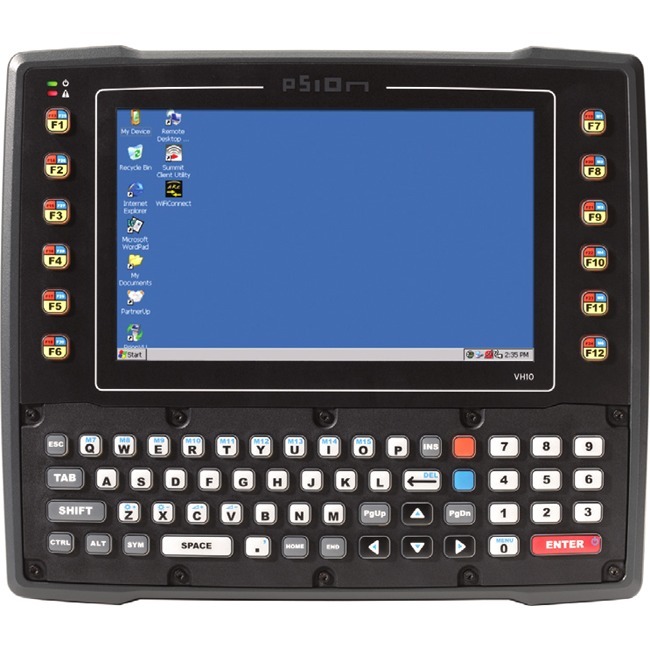

Zebra VH10/VH10f Data Terminal Model Overview
Every day, the workers in your forklifts and other material handling equipment are under pressure to move more product in, through and out of the warehouse to meet customer demands. It will take a new level of efficiency. It will take a new level of accuracy. It will take the VH10. The VH10 is built to provide the real-time information this workforce needs to get the job done fast and right – in your warehouse aisles, out in the yard or in a freezer. You get productivity, ingeniously engineered — with all the features you need for truly flawless fulfillment in your most demanding environments.
Zebra VH10110110110F00 Data Terminal Overview
The VH10 is built to provide the real-time information your workforce needs to get the job done fast and done right - in warehouse aisles, out in the yard or in a freezer. You get productivity, ingeniously engineered - with all the features needed for truly flawless fulfillment in the most demanding environments.
Technical Information
Processor & Chipset
Processor Manufacturer:
Texas Instruments
Processor Type:
OMAP 3
Processor Speed:
800 MHz
Memory
Standard Memory:
512 MB
Flash Memory:
1 GB
Display & Graphics
Screen Size:
8"
Display Screen Type:
LED
Touchscreen:
Yes
Display Resolution:
800 x 480
Network & Communication
Antenna Form Factor:
External
Wireless LAN:
Yes
Wireless LAN Standard:
IEEE 802.11a/b/g/n
Interfaces/Ports
Serial:
Yes
USB:
Yes
Headphone:
Yes
Keyboard/Keypad
Number of Keys:
67
Keyboard Type:
QWERTY
Keyboard Form Factor:
Integrated
Built-in Devices
Built-in Devices:
- Speaker
- Microphone
Software
Operating System:
Windows CE 6.0
Physical Characteristics
Height:
9.4"
Width:
10.9"
Depth:
3.5"
Weight (Approximate):
8.10 lb
Miscellaneous
Certifications & Standards:
- IP66
- IEC 60721-3-5M3
- MIL STD 810-G
- Wi-Fi Certified
- UL/cUL/IEC/EN 60950-1 Indoor use
- FCC Part 15, Class B
- ICES 003 Class B
- EN55022
- EN 301 489-1
- EN 301 489-17
- FCC Part 15.247
- FCC Part 15.407
- RSS-210
- EN 300 328
- EN 301 893
- IEC UL94-VO
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
1 Year
Item Numbers
GTIN:
0053926228218
UPC:
053926228218
EAN:
0053926228218
UNSPSC:
43211505
